Smartek NB40PP Quick Start Manual

NUBI 4.0 – PLUG & PLAY
Model: NB40PP
Power supply: 3,6V lithium battery
PIR: YES

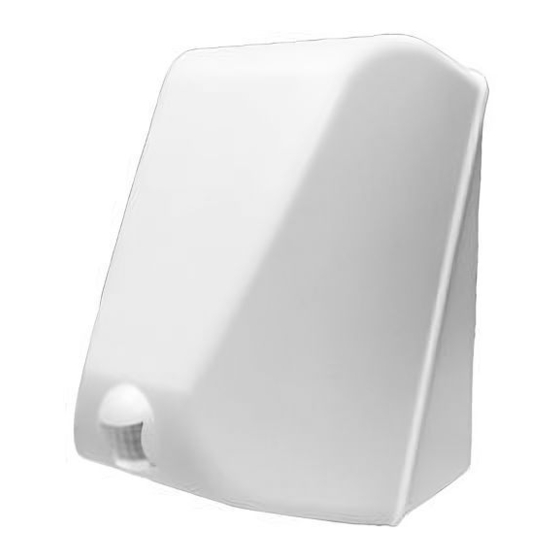

Thank you for purchasing NUBI 4.0, the wireless,
intelligent and Plug & Play security smoke screen device. It
can be used with any anti-theft system, coupling the device
to an internal siren.
WE RECOMMEND THAT YOU READ THE
ENTIRE MANUAL BEFORE PROCEEDING TO
PRODUCT INSTALLATION.

1. OVERVIEW

The device is powered by a 3.6V AA size lithium battery
supplied with the product, such as SAFT LS14500 or
similar. This battery provides the necessary energy to the
device for a period of 10 years. The ignition of the smoke
cartridge is ensured even when the battery is very low
(2.2V). When the battery is about to run out, the device will
beep every hour.
NUBI 4.0 efficiently protects volumes up to 100 m
smoke generated by NUBI 4.0 is based on incense and
does not produce toxic atmosphere as tested according to
the TLV-STEL directive EU 2017/164 and ACGIH. After use
the room must be ventilated before staying there.
The device is completely wireless, it can be installed only
with two dowels. In the same room where NUBI 4.0 is
installed, an internal siren is required. Programming
operations are not necessary on the burglar alarm control
panel. The sound of the siren is digitized during the pairing
operation to be performed during installation. Thanks to
digital learning, sounds other than the specific coupled
siren will not produce any effect, even the sound of the
same siren model, but installed in a different room, will not
activate NUBI 4.0.
While the coupled siren sounds, NUBI 4.0 switches to the
"active state" and as soon as it detects movement with its
infrared sensor it triggers the emission of smoke. It is
possible to extend the "active state" of NUBI 4.0 for 5
minutes even after the siren has stopped sounding (see
chapter 6: select the operating mode).
For the first 20 minutes after performing the siren coupling
operation, or inserting the power supply battery, it is
possible to perform the functional test of NUBI 4.0 without
causing smoke emission.
The smoke cartridge works only once, the smoke
emission, when triggered, can no longer be interrupted.
The replacement of the smoke cartridge is very simple, the
conductors of each cartridge end with the activation card
which will be easily plugged into the appropriate connector
on the motherboard.
NUBI 4.0 is a family of products, in addition to the Plug &
Play version, other models are available to be connected
to the alarm control panel through the inputs and outputs.
They are available with 12V power supply or battery, with
or without built-in infrared sensor. For more information,
visit www.smarteksrl.it.

2. INSTALLATION

Do not insert any obstacle at a distance of less than 1.5
meters from the smoke outlet hole.
3 . The
The best performance is achieved when the jet of smoke
coming out from NUBI 4.0 directly hits the floor, in this way
the smoke will cool and spread better.
NUBI 4.0 Plug & Play must be installed in the same room
where an internal alarm system siren is located.
Do not place NUBI 4.0 in particularly noisy places, as well
as near strong sound sources, such as television or
speakers. Strong and continuous sound sources will
reduce battery life.
The distance between NUBI 4.0 and the siren should be
approximately between 0.5 and 2 m, but this parameter
strongly depends on each siren. In principle it is better to
keep the siren close to NUBI 4.0 to obtain better noise
immunity, but if it is too close it could be reached by an
excessive sound level or influenced by sound reflection
phenomena.
To obtain maximum immunity to anomalies due to ambient
sound reflections, it is recommended to install the siren
and NUBI 4.0 at a height greater than 2 meters.
Before definitively fixing NUBI 4.0 to the wall, proceed to
carry out the sound tests described in chapter 3 and 4
below.

3. TEST OF SOUND THRESHOLD

Open the box, insert the battery into the motherboard
without connecting the smoke cartridge, then close the
container. The green LED reports a sound level lower than
the 90Db threshold, the red one reports a higher level that
causes the device to wake up.
NB40PP
REV 02 – November 2019 - ENGLISH
NUBI 4.0 can be easily
installed on the wall or
even in a corner at a
height between 150 and
250 cm.
WARNING
