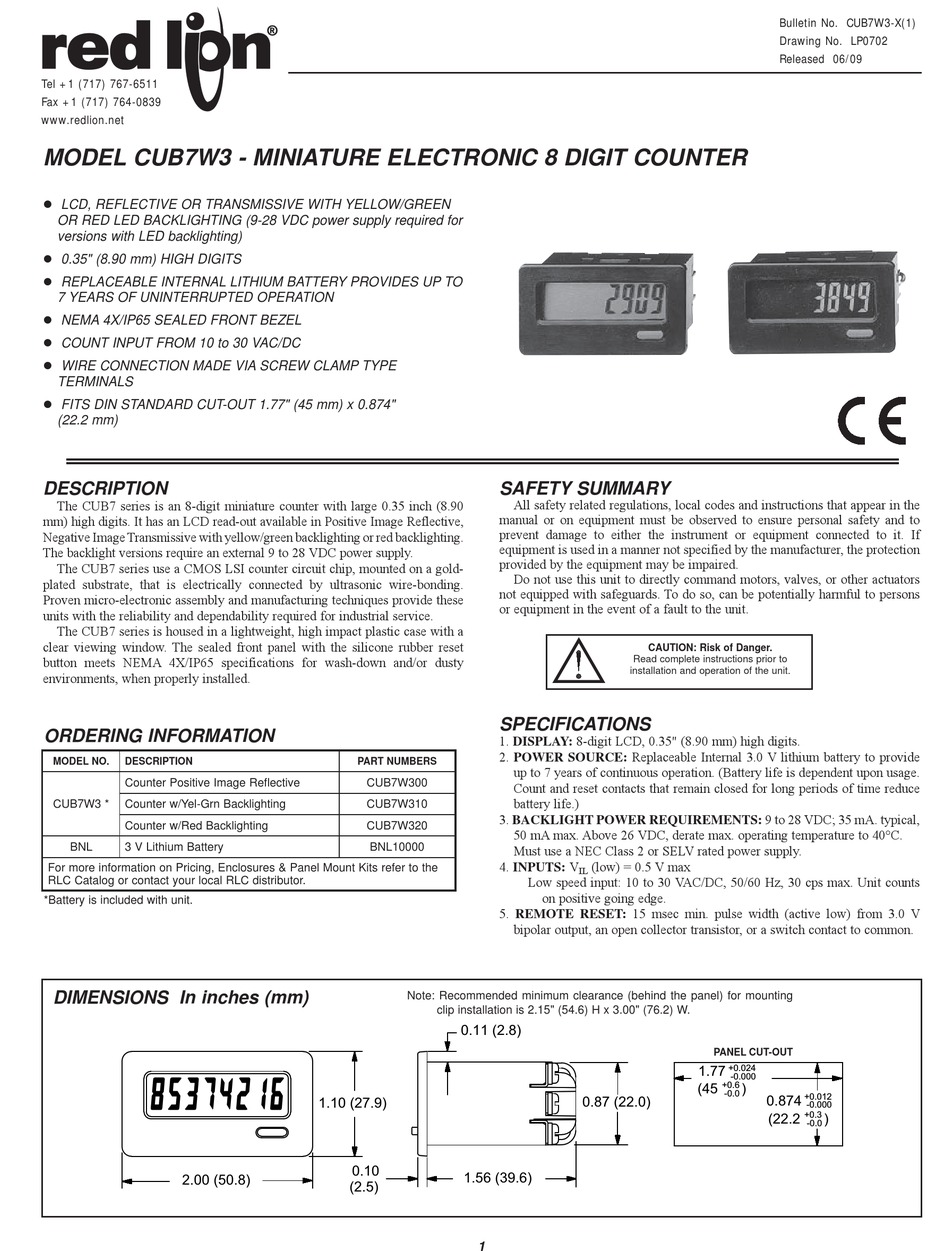

red lion CUB7W3 Manual

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

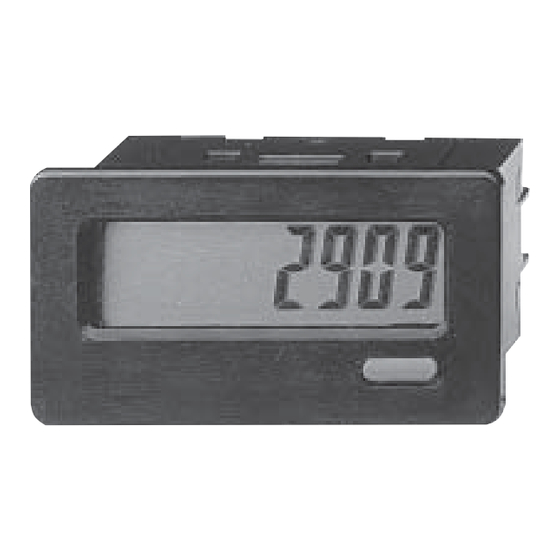

MODEL CUB7W3 - MINIATURE ELECTRONIC 8 DIGIT COUNTER
 LCD, REFLECTIVE OR TRANSMISSIVE WITH YELLOW/GREEN
OR RED LED BACKLIGHTING (9-28 VDC power supply required for
versions with LED backlighting)
 0.35" (8.90 mm) HIGH DIGITS
 REPLACEABLE INTERNAL LITHIUM BATTERY PROVIDES UP TO
7 YEARS OF UNINTERRUPTED OPERATION
 NEMA 4X/IP65 SEALED FRONT BEZEL
 COUNT INPUT FROM 10 to 30 VAC/DC
 WIRE CONNECTION MADE VIA SCREW CLAMP TYPE
TERMINALS
 FITS DIN STANDARD CUT-OUT 1.77" (45 mm) x 0.874"
(22.2 mm)

DESCRIPTION

The CUB7 series is an 8-digit miniature counter with large 0.35 inch (8.90
mm) high digits. It has an LCD read-out available in Positive Image Reflective,
Negative Image Transmissive with yellow/green backlighting or red backlighting.
The backlight versions require an external 9 to 28 VDC power supply.
The CUB7 series use a CMOS LSI counter circuit chip, mounted on a gold-
plated substrate, that is electrically connected by ultrasonic wire-bonding.
Proven micro-electronic assembly and manufacturing techniques provide these
units with the reliability and dependability required for industrial service.
The CUB7 series is housed in a lightweight, high impact plastic case with a
clear viewing window. The sealed front panel with the silicone rubber reset
button meets NEMA 4X/IP65 specifications for wash-down and/or dusty
environments, when properly installed.

ORDERING INFORMATION

MODEL NO. DESCRIPTION
Counter Positive Image Reflective
CUB7W3 * Counter w/Yel-Grn Backlighting
Counter w/Red Backlighting
BNL 3 V Lithium Battery
For more information on Pricing, Enclosures & Panel Mount Kits refer to the
RLC Catalog or contact your local RLC distributor.
*Battery is included with unit.
DIMENSIONS In inches (mm)
85374216
2.00 (50.8)
PART NUMBERS
CUB7W300
CUB7W310
CUB7W320
BNL10000
Note: Recommended minimum clearance (behind the panel) for mounting
clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
0.11 (2.8)
1.10 (27.9)
0.10
1.56 (39.6)
(2.5)
1

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons
or equipment in the event of a fault to the unit.
CAUTION: Risk of Danger.
Read complete instructions prior to
Installation and operation of the unit.

SPECIFICATIONS

1. DISPLAY: 8-digit LCD, 0.35" (8.90 mm) high digits.
2. POWER SOURCE: Replaceable Internal 3.0 V lithium battery to provide
up to 7 years of continuous operation. (Battery life is dependent upon usage.
Count and reset contacts that remain closed for long periods of time reduce
battery life.)
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC; 35 mA. typical,
50 mA max. Above 26 VDC, derate max. operating temperature to 40°C.
Must use a NEC Class 2 or SELV rated power supply.
4. INPUTS: V (low) = 0.5 V max
IL
Low speed input: 10 to 30 VAC/DC, 50/60 Hz, 30 cps max. Unit counts
on positive going edge.
5. REMOTE RESET: 15 msec min. pulse width (active low) from 3.0 V
bipolar output, an open collector transistor, or a switch contact to common.
0.87 (22.0)
Bulletin No. CUB7W3-X(1)
Drawing No. LP0702
Released 06/09
PANEL CUT-OUT
1.77 +0.024
-0.000
(45 +0.6 )
-0.0
+0.012
0.874
-0.000
+0.3
(22.2 )
-0.0
