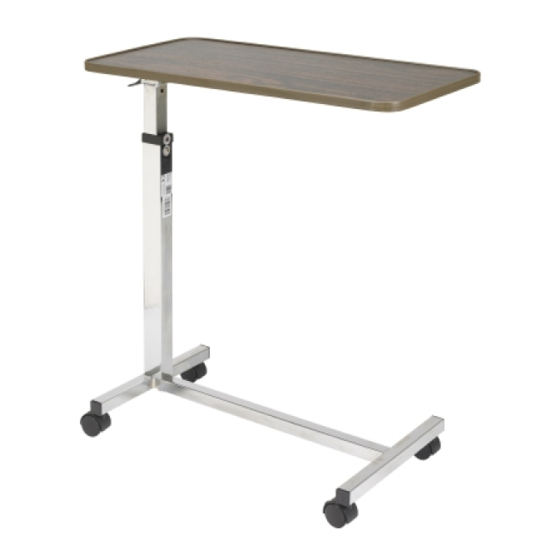

TILT TOP TABLE - 13008

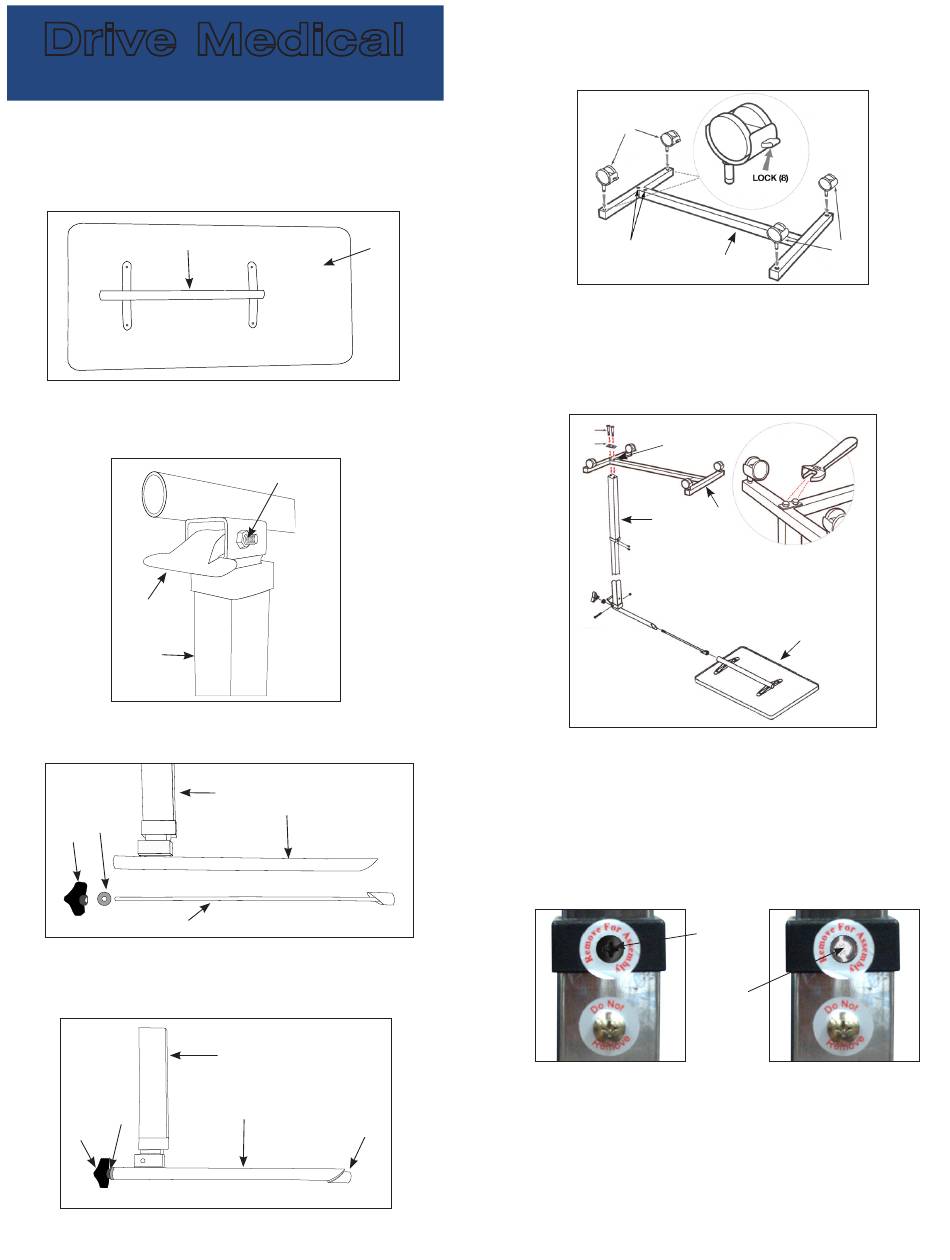

Assembly Instructions
1. Remove contents from packaging and lay top board
upside down on flat surface with Mounting Tube (5)
facing upward. See Fig. 2.
5
2. Take the Column Assembly (2) and place Trip Lever (3)
on top of Trip Rod and secure with Bolt and Nut (4)
See Fig. 1.
3
2
3. Remove Triangle Knob (16) and Spacer (17) and
remove Inner tube (6) from Outer tube (18). See Fig. 3.
17
16
6
4. Insert Outer tube (18) on Column Assembly through
Mounting Tube (5) on table top. Then insert Inner
tube (6) through Mounting Tube (5). See Fig. 4.
17
16
5. Replace Triangle Knob (16) and Spacer (17) and
secure by tightening the knob.
1
FIG. 2
4
FIG. 1
2
18
FIG. 3
2
18
6
FIG. 4
6. Install two Casters With Lock (8) into Base (7) which
connects to Column Assembly (2). Install two
Non-Locking Casters (9) into base opposite Column
Assembly (2). See Fig. 5.
8
Column end of base
with 2 holes
7. Install two Bolt Sleeves (10) into upside down Base (7)
and then position two Bolts (12) through Bolt Plate
(11) and into Bolt Sleeves (10). Position Base (7) over
Column Assembly (2) and thread bolts into bottom of
Column Assembly (2) and tighten using 16mm wrench.
See Fig. 6.
12
11 10
2
8. Turn the table upright and stand on casters.
9. CAUTION: This step must be completed last to
prevent damage to the spring loaded mechanism.
Remove the Black Screw (13) in the Column Assembly
(2) collar labeled "Remove for Assembly" and replace
it with the Chrome Screw (14) contained in hardware
package. Do not remove Chrome Screw labeled "Do
Not Remove". See Fig. 7 and Fig. 8.
FIG. 7
WARNING
FOR SAFETY – DO NOT REMOVE BLACK SCREW (13) ON COL-
UMN ASSEMBLY (2) UNTIL THE TABLE IS FULLY ASSEMBLED AND
STANDING IN UPRIGHT POSITION. AFTER REMOVING BLACK
SCREW, REPLACE WITH CHROME SCREW (14) INCLUDED IN
HARDWARE PACKAGE.
THE BOTTOM CHROME SCREW WITH THE "DO NOT REMOVE"
LABEL SHOULD NEVER BE REMOVED AS IT WILL DAMAGE THE
UNIT AND VOID YOUR WARRANTY.
9
7
FIG. 5
7
1
FIG. 6
Remove 13
Insert 14
FIG. 8
