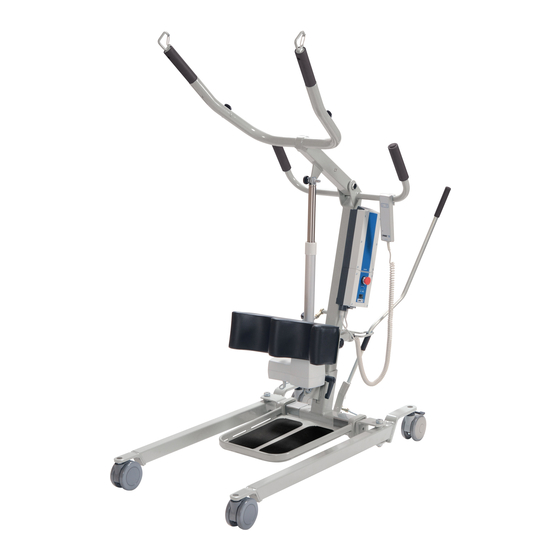

Page 1: User Manual
USER MANUAL Item: #13246 – Stand-Aid Lift Drive Medical Design and Manufacturing www.drivemedical.com... -
Page 2: Important Safeguards
Do not store the lift in a shower, bath or other area with high humidity. Keep all components of the lift clean and dry and have electrical and mechanical safety. Always maneuver the lift with the handle provided. Drive Medical Design and Manufacturing www.drivemedical.com... -

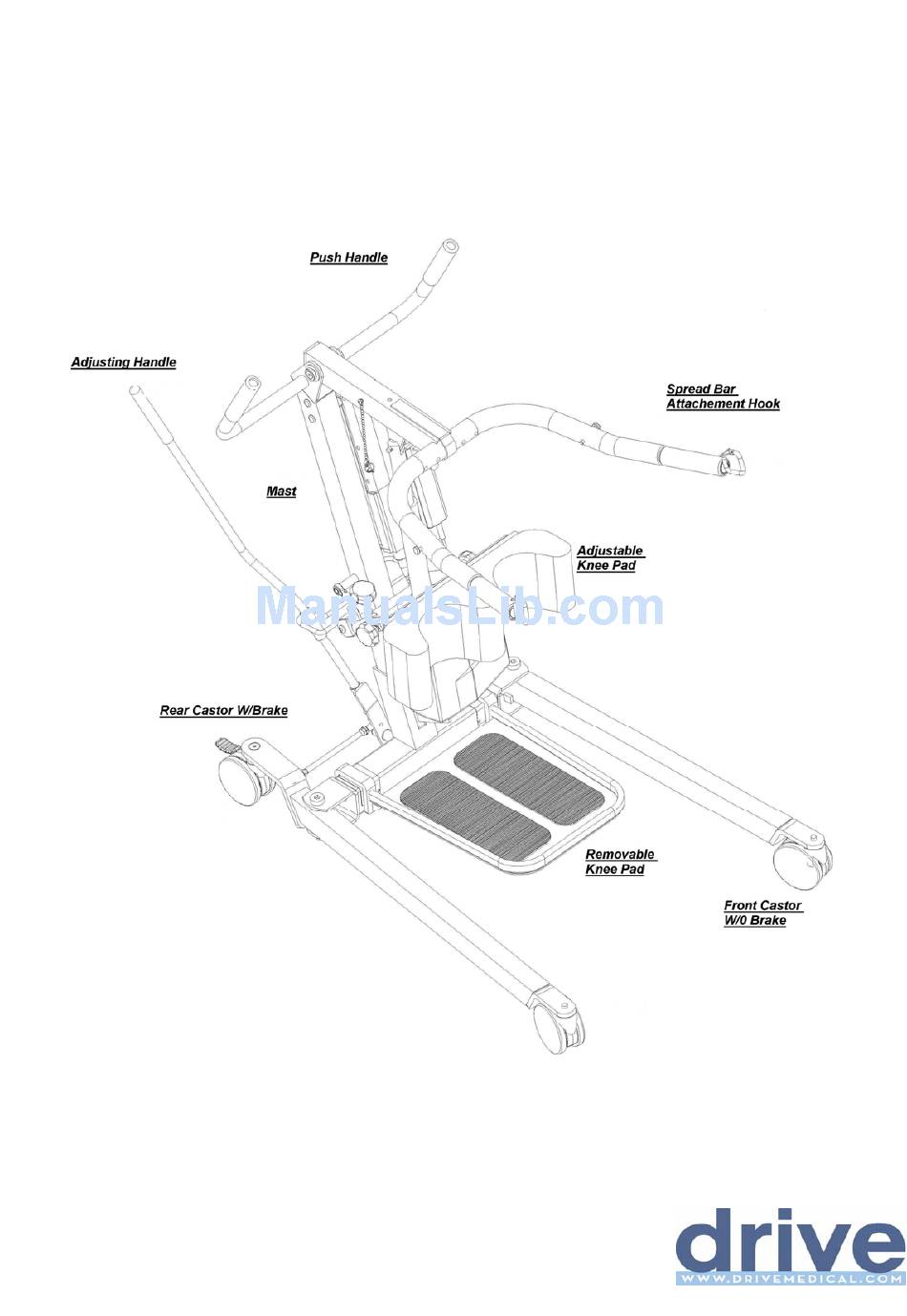

Page 3: Assembly Instructions
Remove all the parts from the carton and place on the floor, taking care to protect the finish from damage. 2. Place the chassis in a clear space and apply the rear bakes. Attach the “foot plate” to the base. Drive Medical Design and Manufacturing www.drivemedical.com... - Page 4 3. Fit the “mast” and “boom" assembly into the base socket. Tighten the mast assembly with the drive screw. Drive Medical Design and Manufacturing www.drivemedical.com...
- Page 5 Tighten up screw Assemble actuator bottom and top. Insert the pin chain through actuator top. Drive Medical Design and Manufacturing www.drivemedical.com...
- Page 6 Fit control box onto bracket (on mast). Tight up control box. Fit battery onto control box. Drive Medical Design and Manufacturing www.drivemedical.com...
- Page 7 Plug the hand set in control box bottom at left side. Plug actuator in control box bottom at middle. Fit the adjusting handle. REMARKS: Please always check the mast is fully locked into position. Drive Medical Design and Manufacturing www.drivemedical.com...
- Page 8 ◆ send handset repair but actuator does not run. ◆ Handset plug not insert properly ◆ Check all cord connections No relay noise is heard ◆ Emergency stop engaged ◆ Deactivate emergency stop from control box. Drive Medical Design and Manufacturing www.drivemedical.com...
-
Page 9: Warning And Caution
When the charging action is finished, the “Charge” light will be off automatically. (Usually, it is need to charge 4 hours from the 50% capacity to 100% capacity) d. Remove the power supply cord. e. Now, you can operate again. Drive Medical Design and Manufacturing www.drivemedical.com... -
Page 10: Maintenance
(1) Where mast and boom connect, hanging bar hook, pump handle hinge, and caster axles, (2) Where pump and boom attach, (3) Lubricate as above every two to three months. * We reserves the right to make technical changes without notice Manufactured For: Drive Medical Design an d Manufacturing www.drivemedical.com... - Page 11 Drive Medical Design & Manufacturing 99 Seaview Boulevard Port Washington, NY 11050 Phone: 516-998-4600 Fax: 516-998-4601 www.drivemedical.com Drive Medical Design and Manufacturing www.drivemedical.com...
