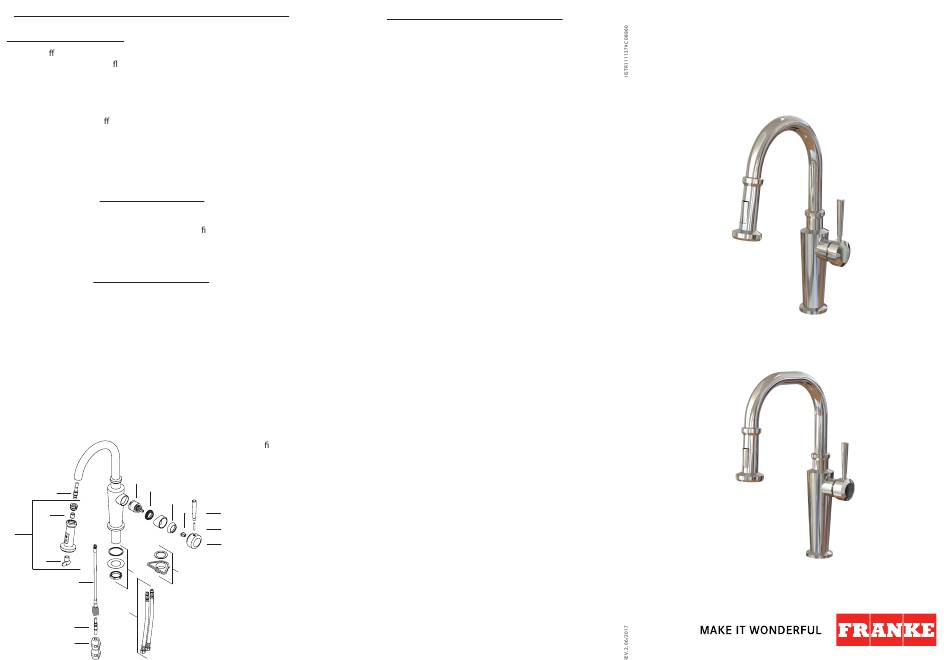

Franke FFP5200 Installation Manual

STANDARD MAINTENANCE AND TROUBLESHOOTING
REPLACING THE CARTRIDGE
1. Shut o the water supply to the faucet.
2. Turn on the faucet brie y to relieve any pressure inside the faucet.
3. Move the faucet handle to the " OFF" position.
4. Unscrew lever handle C from the lever handle A.
5. Remove the pin handle set screw B using an allen key.
6. Pull the lever handle A from the faucet body .
7. Unscrew the cap D o of the lock nut E.
8. Unscrew the cartridge lock nut E.
9. Lift ceramic disk cartridge F from the body and repalce it with a new
one. Ensure the two lugs on bottom of the cartridge sit properly in the
allocated holes at the base of the body.
10. Re-assemble faucet in reverse order.
11. Test for leakage.
GENERAL MAINTENANCE
Clean aerator periodically for any buildup .
Do not use harsh detergents, solvents, chemical agents, metallic sponges,
etc. that could harm the surface and damage the nish.
Clean only with a soft sponge and soapy water.
Do not store chemicals or cleaning agents in the immediate vicinity of the
faucet and connection hoses. Chemical vapors could cause damage.
SPARE / REPLACEMENT LIST
A+B+C+G. Handle assembly F5201*
. D C a p F3802*
E. Lock nut F3803
F. Cartridge F3804
H. Pull out hose F5204
I. Weight F3102
J . Check Valve 1.75 gpm F3706
K. F2809
Aerator Key
F5202*
L. Pull out spray assembly
M. Mounting Hardware Kit F5219
N . Pull out supply hose F5205
O. Supply hoses F5203
P. Fixing Kit F3125
F
E
H
D
G
J
L
K
M
P
N
O
H
I
LIMITED LIFETIME WARRANTY
Franke Kitchen Systems,LLC extends the following warranty to
the original purchaser of its faucets effective January 1, 2003.
All faucets installed in a private residence will carry a limited lifetime
warranty on all mechanical parts to be free of manufacturing defects
in material and workmanship under normal usage. All chrome finishes
carry a limited lifetime warranty; all other finishes are warranted for
five (5) years form the original date of purchase.
Marine and Outdoor Installation
warranted for Marine and Outdoor installations.
This warranty applies only to the original owner, providing the product
has been installed in accordance with our installation instructions,
used as recommended and in a normal residential application. In the
event of a warranty claim, the owner will be required to provide proof
of purchase - save sales receipt. This warranty covers all components
which make the product operational. Franke, at its option, may repair
or replace the product or components necessary to restore the pro-
duct to good working condition. Franke reserves the right to inspect
the installation prior to the actual replacement of the product or com-
ponent part. This warranty does not cover misuse or abuse, acciden-
tal damages, scuffs or scratches, improper installation, abnormal
usage, negligence or damage caused by improper maintenance or
cleaning. Normal wear of parts is excluded from the warranty.
Damage caused by impurities or acts beyond our control are not
covered. Any product or part which has been repaired or altered in
any manner outside of Franke's factory, unless previously authorized
in writing by Franke, will void warranty. Any replacement excludes
transportation and any labor re-installation costs. This warranty
does not allow recovery of incidental or consequential damages such
as loss of use, delay, property damage or other consequential dama-
ge, and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the
warranty period specified herein and is exclusive. Franke DISCLAIMS
*Must specify nish
all other warranties, expressed or implied, including IMPLIED
CH chrome
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS
SN satin nickel
FOR A PARTICULAR PURPOSE. This warranty gives you
PN polished nickel
specific legal rights that may vary from state to state.
MB matt black
Further information
C
For any further information about our products, about the installation of
B
them or about the guarantee, please contact our customer service
A department:
Franke Kitchen Systems
800 Aviation Parkway
Smyrna, TN 37167, USA
Phone: 800-626-5771
Email: ks-customerservice.us@franke.com
