Franke F3D3S User Manual

Frozen fry dispenser. single lane/dual lane (with r404a or propane (r290) refrigerant)
Hide thumbs Also See for F3D3S:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
USER MANUAL
Original instructions

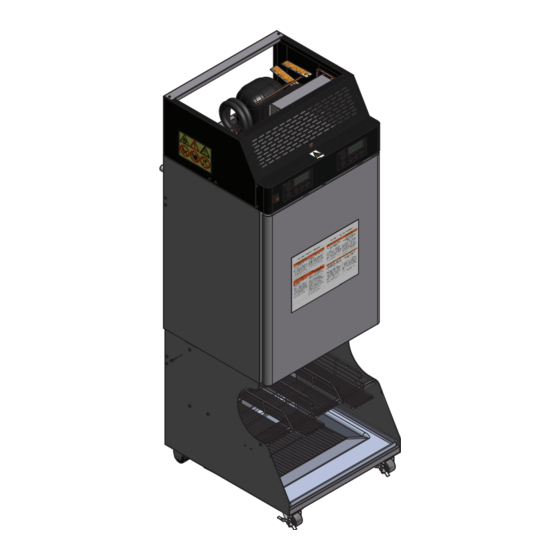

FROZEN FRY DISPENSER F3D3S/F3D3/
F3D3SP/F3D3P
Single Lane/Dual Lane (with R404A or propane (R290) refrigerant)
F3D3S–Single Lane
F3D3SP–Single Lane
F3D3–Dual Lane
F3D3P–Dual Lane
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F3D3S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franke F3D3S

Summary of Contents for Franke F3D3S

  • Page 1 USER MANUAL Original instructions FROZEN FRY DISPENSER F3D3S/F3D3/ F3D3SP/F3D3P Single Lane/Dual Lane (with R404A or propane (R290) refrigerant) F3D3–Dual Lane F3D3S–Single Lane F3D3P–Dual Lane F3D3SP–Single Lane...

  • Page 2: Declaration Of Conformity

    79713 Bad Säckingen Germany Phone: +49 7761 5533 0 www.franke.de Declaration of Conformity Franke Foodservice Systems GmbH declares under its sole responsibility that this/these appliance(s) set forth in this declaration conform(s) to the regula- tions of these directives: 2004/108/EC (EMC Directive)

  • Page 3: Table Of Contents

    Cleaning the condenser ribs ..................26 5.3 Customer service (electric components) ..............27 Customer service (cooling system)* .................28 Malfunctions/Troubleshooting ..................29 Error messages ......................29 Malfunctions ......................29 Decommissioning (storage/disposal) ................32 Storage ........................32 Disposal ........................32 * only F3D3SP/F3D3P 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 4: Safety

    NOTICE NOTICE indicates a situation which, if not avoided, may result in damage to the appliance. Important information can be found here. Additional information, tips and recommendations can be found here. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 5: Warning And Prohibitory Signs

    - Give the user manual to the next owner if the appliance is sold or passed on to a new owner. - The appliance is not suitable for storing frozen products (french fries) for extended periods; it is only intended as an intermediate storage location between the freezer room and the deep fryer. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 6: Safety Instructions

    - Never repair the cooling system yourself! - If you experience problems, contact the technical customer service. The appliance may only be repaired by a refrigeration technician under certain conditions! - Read the chapter “Maintenance/repair”! * only F3D3SP/F3D3P 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...
  • Page 7 - Do not touch the condenser ribs while cleaning. - Wear suitable gloves while cleaning. The cooling lines can become very hot and cause burns. - Do not touch the cooling lines while cleaning. - Wear suitable gloves while cleaning. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...
  • Page 8 Abrasive cleaning agents and sharp objects cause iron residue that can rust. - Do not use abrasive cleaning agents, steel wool, brushes, scrapers or other sharp objects for cleaning. - Use cleaning fleece made of artificial fibers to remove stubborn dirt. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 9: Installation

    Electrical connection (F3D3P/F3D3SP) Voltage 230 V 230 V Phases 1 Ph/L/N/PE 1 Ph/L/N/PE Power 0.6 kW 0.6 kW Frequency 50 Hz 50 Hz Amperes 3.7 A 3.7 A Single Lane Dual Lane * F3D3SP/F3D3P ** F3D3S/F3D3 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...
  • Page 10 100 mm 100 mm Minimum side clearance None None Energy consumption (24 h) (F3D3P/F3D3SP) 4.05 kWh 5.1 kWh Energy consumption (24 h) (F3D3/F3D3S) 6.2 kWh 7.5 kWh Cooling system Closed system, cold wall construction Refrigerant (F3D3P/F3D3SP) R290 R290 Refrigerant (F3D3/F3D3S)

  • Page 11: Removing The Packaging Box

    - Cut the plastic straps of the accessories box with scissors (see Fig. 03). The accessories box contains removable com- ponents. Do not discard. Fig. 02: Lifting Fig. 03: Removing off the packaging the accessories box. box. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 12: Removing The Pallet

    (for maintenance). The appliance is set up next to the frying station. The following configurations are possible: Configuration 1 Bagging station Deep fryers Frozen fry dispenser Configuration 2 Frozen fry dispenser Deep fryers Bagging station 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 13: Changing The Door Hinge

    - F3D3P/F3D3SP: Insert the connector into a 230 V (50 Hz) power socket. The power cable provided is 3 m long. - F3D3/F3D3S: Insert the connector into a 230 V (50 & 60 Hz) or 120 V (60 Hz) power socket. The power cable provided is 3 m long.
  • Page 14 If cleaning with a neutral soap is not sufficient, limescale deposits can be removed with a 25% solution of vinegar. Give the vinegar solution time to act, rinse with clear water and wipe dry. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 15: Appliance Description

    The F3D3 is available in 4 different models: - F3D3S Single Lane: with one dispenser lane, using R404A refrigerant - F3D3SP Single Lane: with one dispenser lane, using propane refrigerant - F3D3 Dual Lane: with two dispenser lanes, using R404A refrigerant...
  • Page 16 Upper basket wire rack with basket guide Castors without brake Lower basket wire rack Lower drip pan (plastic) Castors with brake Crumb Tray (option) F3D3S type label behind the air filter F3D3SP Type label 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...
  • Page 17 Upper basket wire rack with basket guides Castors without brake Lower basket wire rack Lower drip pan (plastic) Castors with brake Crumb Tray (option) F3D3S type label behind the air filter F3D3P Type label 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 18: Before Starting Up For The First Time

    Before starting up for the first time, all components of the appliance must be cleaned. Cleaning removable components The removable components are located, firstly, in the appliance itself and, secondly, in the ac- cessories box (see scope of delivery). 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 19: Daily Procedure For Starting Up/Switching On

    All parts of the bucket are more easily accessible for cleaning with the filler doors fully open. 3.2 DAILY PROCEDURE FOR STARTING UP/SWITCHING Assembling the appliance NOTICE Appliance damage! Components that are frozen together may damage the appliance. - Never place wet components into the freezer. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...
  • Page 20 Insert the crumb tray. Insert the wire rack (in the freezer above the hopper(s)). Only for dual lane models Mount the side basket wire rack (if present) Position the collecting pan under the basket wire rack. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 21: Filling With Fries

    - Defrost the appliance daily lel to the drum. (see the "Cleaning" chap- ter). Repeat steps 2 and 3 until Close the freezer. the hopper(s) is/are full (see "Technical data", french fry capacity). 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 22: Dispensing Fries

    The filling process is displayed on the screen by a growing, horizontal bar. Place an empty deep fryer basket under the dispenser and push it back against the dispensing pressure switch. The basket is filled. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 23: Daily Procedure For Decommissioning/Switching Off

    3. Take the hopper out of the appliance. 4. Fill the remaining fries from the hopper into a suitable storage container and store them in the freezer room. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 24: Cleaning

    - Never scratch the ice layers off the freezer walls to accelerate the defrosting process. 3. Let the appliance defrost with the door open. 4. Remove the collecting pan of the side basket wire rack (if present). 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 25: Daily Cleaning Procedure

    - Wipe off and disinfect the entire basket wire rack area with the cross supports, side walls and the rear wall using a cloth. - Thoroughly dry the interior and the basket wire rack area with a sterile cloth. - Close the freezer door. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 26: Preventive Maintenance

    - Rinse with clear water. - Let dry. - Insert the filter. - Close the access plate. 5.2 CLEANING THE CONDENSER RIBS IMPORTANT! Clean condensers have a major influence on the service life of the compressor. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 27: Customer Service (Electric Components)

    - Close the access plate. 5.3 CUSTOMER SERVICE (ELECTRIC COMPONENTS) - In case of malfunction, contact technical customer service. - Please provide the item number and type. This information is located on the rating plate. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 28: Customer Service (Cooling System)

    - The appliance may only be kept outside in the open air for the duration of the work on the cooling system. - The work may only be carried out by a qualified (certified) specialist company. The relevant local standards and laws for this qualification are valid. * only F3D3SP/F3D3P 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 29: Malfunctions/Troubleshooting

    Plug the connector into another socket. Have the faulty power The power socket is faulty. the freezer is not socket repaired by an electrician. running. The fuse tripped. Check if the fuse tripped. Reset it if necessary. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...
  • Page 30 "bridge". The Shake the hopper and redistribute the fries to break up the flashes. screen displays error message bridge. Proceed carefully so as not to break the fries. Err04 and the ACTION–3 [Reset] button flashes. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...
  • Page 31 The filling process is finished when the BASKET symbol LEDs cannot be The filling process is not yet fin- light up and [Ready] appears on the screen. The load size can changed on the ished. now be changed. operator panel. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...

  • Page 32: Decommissioning (Storage/Disposal)

    - It is essential that you observe the laws and regulations for the disposal of environmentally harmful substances. Obtain detailed information about their disposal – such substances include refrigerants or plastics. - Before disassembly, all food remnants must be removed and the appliance must be thoroughly cleaned. 07/2015 Frozen fry dispenser F3D3S/F3D3/ F3D3SP/F3D3P...
  • Page 33 Electrical and Electronic Equipment Act (ElektroG) and claims by third parties in this connection. The entitlement by Franke to be released by the customer is not subject to any statute of limita- tions and ends after utilization with proper disposal by the customer. If the product is passed on to a third party, the customer must ensure that the disposal requirement is fulfilled upon the end of service life.
  • Page 34 Locations Locations Germany Poland Headquarter/Sales Office/Logistics Sales Office Production/Sales Office/Logistics Franke Foodservice Systems GmbH Franke Foodservice Systems GmbH Franke Foodservice Systems Jurastrasse 3 Speicherstr. 4 Poland Sp. z o. o. 79713 Bad Säckingen 44809 Bochum ul. Polnocna 11 Germany Germany...
