TECHNICAL DATA
Flow Rate 1.75 GPM at 60 PSI
Recommended Water Pressure 30-75 PSI
Max. Water Pressure 145 PSI
Recommended Hot Water Temp. 120°-140° F
Hole Size For Faucet 1 3/8"
Certi es this faucet complies with ASME A112.18.1 / CSA B125.1
& NSF 61, NSF 372 and AB1953
NOTE:
Contact us immediatly if you see inconsistencies.
Phone: (1- 800-626-5771)
website: www.franke.us/ks
email: ks-customerservice.us@franke.com

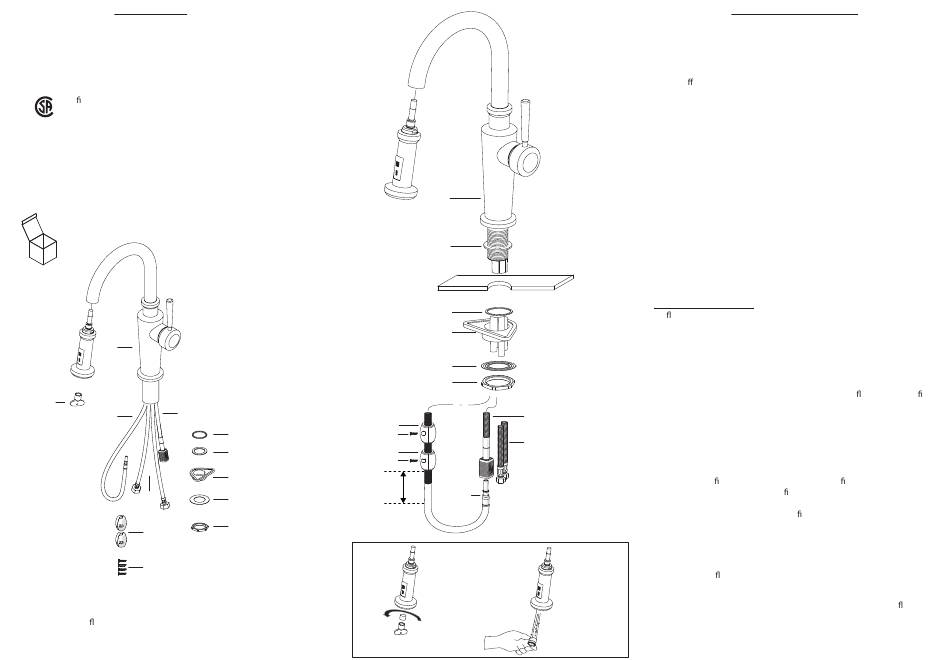

CONTENTS IN BOX
1
12
7
8
11
9
10
1 Faucet assembly 7 Pull out Supply hose
2 Rubber washer 8 Spray hose
3 Rubber washer
9 Weights
4 Plastic ange
10 Screws
5 Fixing plate
11 Supply hoses
6 Fixing nut
12 Key for aerator
9
10
2
9
3
10
4
2" (50 mm)
5
6
1
2
3
4
5
6
7
11
8
INSTALLATION INSTRUCTIONS
1. Remove all contents from the package and check for completeness.
2. Turn o water supply.
3. Cut a mounting hole 1 3/8 diameter (35mm) in the desired position in
counter top or sink (if one isn't available).
4. Place the rubber washer (2) over the mounting shank.
ATTENTION: The washer should be sitting between the countertop and
faucet base.
DO NOT use putty or other sealant at this location.
NOTES:
Solid surface installation: The countertop mounting surface needs to
be at and free of debris otherwise the faucet may not sit properly.
For tile installations, avoid installing faucet near or on top of grout lines.
This may cause a weak joint between the faucet and the counter and
could cause leaks.
5. Install the mounting hardware to the base of the faucet body in
the following order - rubber washer (3) plastic ange (4) and xing
plate (5) as ilustrated
6. Secure the faucet by tightening the Fixing Nut (6) onto the
mounting shank of the faucet the body (1).
7. Connect the pull out hose (8) to the pull out supply hose (7) using the
quick connect tting. Slide the quick connect tting sleeve to the
"open" position, insert the hose tting into the connector. You should
hear a "click". Slide the sleeve to the "lock" position, you should hear
another "click". This will ensure the tting is sealed and locked.
8. Place the weights (9) on the spray hose (8) with the screws (10).
Approximately 2" (50mm) above the bend in the bottom of the spray
hose.
9. Connect the exible supply hoses (11) to the water supply in the
house.
10. Remove the aerator using the aerator key, turn on water, ush the
faucet for any debris and check for leaks.
Reinstall the aerator and ensure everything is functioning properly.
