Summary of Contents for Bodine 34R6BXPP

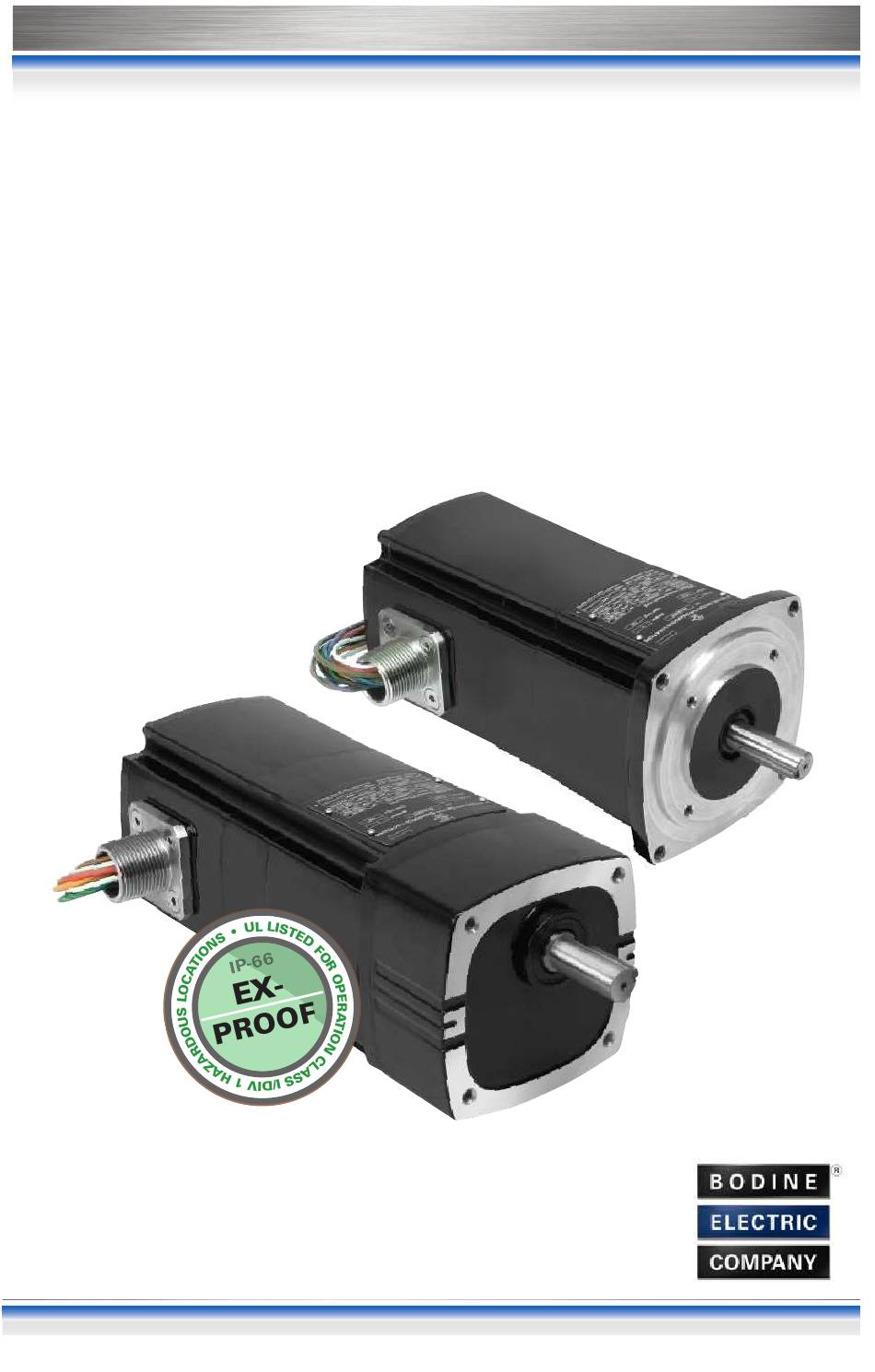

- Page 1 Instructions for Installation and Operation Bodine Electric Company Type 34R6BXPP Motors & Gearmotors AC 3-Phase, Inverter-Duty 230VAC or 460VAC This apparatus is suitable for use in Hazardous Locations Class I, Division 1, Groups C & D. www.bodine-electric.com www.bodine-electric.com 07401151.B...
-
Page 2: Table Of Contents
Troubleshooting ........13 Bodine Limited Warranty ......14 FIGURES Figure 1a –... -
Page 3: Important Safety Precautions
The Bodine type 34R6BXPP motor and 34R6BXPP-FX gearmotor were designed to meet the requirements of UL 674 and CSA C22.2 No. 145-M2017, electric motors for use in Division 1 Hazardous Locations. -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS The motors are 3-Phase AC induction motors. The 34R6BXPP is a 3-Phase AC induction motor, available with or without an integral gearbox, and a normally closed, self-resetting thermal switch attached to the motor windings. -
Page 5: Installation
• Fils scellés en usine. Ne démontez aucune pièce de ce produit car cela compromettrait sa sécurité dans les atmosphères dangereuses. • Ce produit doit étre installè, inspecté et entretenu par un électricien qualifié seulement, conformément avec tous les codes de l’électricité pertinents. www.bodine-electric.com... -
Page 6: Step 1: Mount The 34R6Bxpp Motor Or Gearmotor
Step 1: Mount the 34R6BXPP Motor or Gearmotor Install the 34R6BXPP motor or gearmotor onto a secure mounting surface using the appropriate hardware for the desired mounting orientation, as indicated in Figure 1a and 1b. For example, if a gearmotor is to be mounted by the holes in the face where the output shaft exits, then four ¼-28 UNC-... -
Page 7: Figure 1B - Dimensions For Standard 34R6Bxpp-Fx Gearmotor
If mounting from the four ¼-20 UNC-2B base holes, the screw length should not exceed a maximum thread engagement depth of 0.45”. See Figure 1a and 1b for the location of the mounting holes on Bodine’s stock models. For custom variations of our stock models, refer to Bodine’s “INFS” drawing instead. -
Page 8: Step 2: Attach A Conduit Outlet Box To The Motor
Class I, Division 1, Groups C & D. The conduit outlet box is not supplied by Bodine with the motor, so it must be purchased separately by the user. The conduit outlet box must have a hole with a 1”... - Page 9 These motors are 3-Phase AC induction motors. The 34R6BXPP is a 3-Phase AC induction motor, with or without an integral gearbox, and with a normally closed, self-resetting thermal switch attached to the motor windings and is represented schematically in Figures 4a, 4b, and 4c on pages 10 and 11.
-
Page 10: Figure 4A - Electric Connections - Thermal Switch With Logic Control To Disable Motor Power
Figure 4a – Electric Connections – Thermal Switch with Logic Control to Disable Motor Power AC Supply Class I, Division 1 Environment 34R6BXPP Motor or Gearmotor AC Inverter Motor Phases/Thermal Switch Power Supply... -
Page 11: Figure 4C - Electric Connections - Thermal Switch With 3 Pole Ac Relay To Interrupt Supply
Figure 4c – Electric Connections – Thermal Switch with 3 Pole AC Relay to Interrupt Supply AC Supply (N.O.) (N.C.) (N.O.) (N.C.) (N.O.) (N.C.) Class I, Division 1 Environment 34R6BXPP Motor or Gearmotor Motor Phases/Thermal Switch Black Thermal Switch White White Blue Green-Yellow Tracer... -
Page 12: Step 4: Operate The 34R6Bxpp Motor Or Gearmotor
Step 4: Operate the 34R6BXPP Motor or Gearmotor WARNING/AVERTISSEMENT • CAUTION–To reduce the risk of ignition of hazardous atmospheres, disconnect the equipment from the supply circuit before opening. Keep assembly tightly closed when in operation. • Leads factory-sealed. Do not disassemble any part of this product as that will compromise its safety in hazardous atmospheres. -
Page 13: Troubleshooting
If you encounter a problem, read all instructions and double-check the wiring. Even if the 34R6BXPP motor or gearmotor itself shows obvious signs of damage, it may be that another component in the system or an incorrect installation or incorrect electrical connection caused it to fail. In which case, replacing the gearmotor alone and not tending to the root cause of the failure may result in another damaged product. -
Page 14: Bodine Limited Warranty
Bodine Electric, or to the nearest Bodine Authorized Service Center. At its option, all return shipments are F.O.B. Bodine’s plant or Authorized Service Center. Bodine is not responsible for removal, installation, or any other incidental expenses incurred in shipping the products to or from Bodine. - Page 15 NOTES www.bodine-electric.com...
- Page 16 AC, permanent magnet DC and brushless DC fractional horsepower gearmotors and motors in the industry. For complete specifications, 3D CAD drawings, or to order online, visit bodine-electric.com. info@bodine-electric.com | www.bodine-electric.com | 201 Northfield Rd. | Northfield IL 60093 USA | Tel: 773.478.3515 07401151.B...
