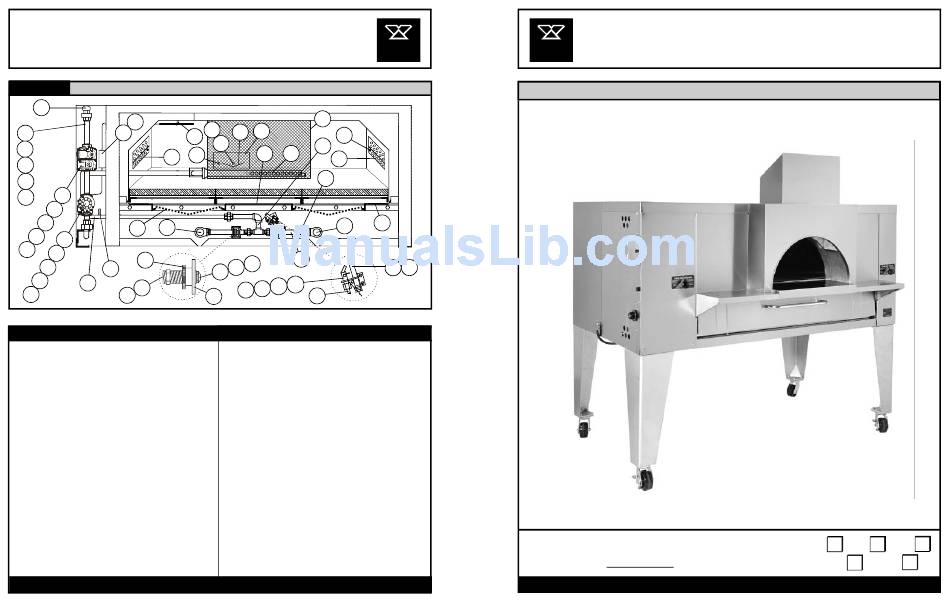

Bakers Pride FC-816 Parts List

FC-816

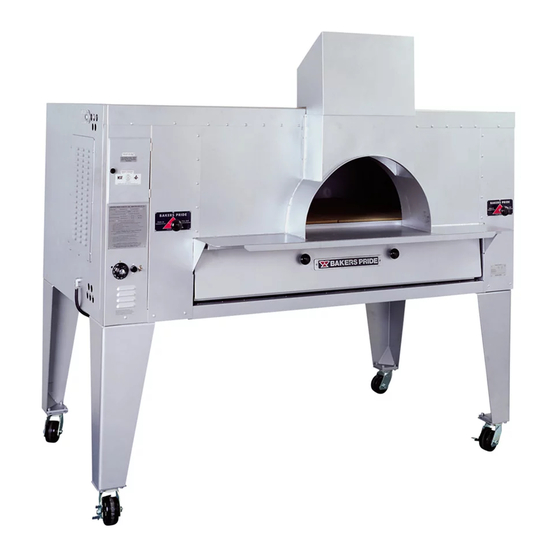

Gas Deck Oven
Controls / Interior Components
Figure B
28
17
1
16
2
45
3
4
12
5
13
14
42 35
18
6
19
7
33
8
27
9
26
30
10
31
Item Part # Description
1 M1403P Control Assy, Nat ( w/BGOR Valve)
2 M1404X Control Assy, LP
(w/BGOR Valve)
3 M1300X Control Assy, CE, Nat
(w/BGOR Valve)
4 M1295X Control Assy, Nat
(w/BMVR Valve)
5 M1255X Control Assy, LP
(w/BMVR Valve)
6 M1005X Thermostat, Gas, FDTH (650F)
7 S1056X Knob, Thermostat, 650F
8 S1163X Knob, Thermostat, CE, 340C
9 M1390X Thermostat, High Heat, Elec (Opt.)
10 S1207X Knob, High Heat Thermostat (1-10)
11 Q4021X Capillary Clip
12 R3152X Valve, Nat, 7000-BGOR
13 R3154X Valve, LP, 7000-BGOR
14 R3156X Valve, Nat, CE, U7000-BGOR
15 M1296X Thermocouple, T46 (72")
16 R3127X Valve, Booster Burner, LP
17 R3126X Valve, Booster Burner, Nat
18 R3104X Valve, BMVR, Nat (Before SN846)
19 R3124X Valve, BMVR, LP (Before SN846)
20 M1265X Thermopile (Before SN846)
21 R3036X Pilot Tubing, S/S, 3/16" x 45"
22 M1220X Pilot Burner, Natural, w/Ftgs,
2 CHA-1
23 M1222X Pilot Burner, LP, w/Fittings, 2 CHA-1
24 M1244X Orifice, Pilot, Nat, 2 CHA-1 (.018")
25 M1245X Orifice, Pilot, LP, 2 CHA-1 (.010")
26 R1041P Manifold
27 N3068P Pressure Tap Nozzle Assy
Page 4 of 4
Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas.
30 Pine Street •New Rochelle •New York •10801
914 / 576 - 0200
914 / 576 - 0605
fax
1 - 800 - 431 - 2745
US & Canada
www.bakerspride.com
web address
52
51
48
49
47
11
50
37
38
43
53
46
36
34
29
40 41
39
23 22
24
25
32 21
Item Part # Description
28 R1083P Gas Inlet Assy
29 L5001X Inspirator #3
30 R3007X Spud Assy #3
31 R3004A Spud Holder #3
32 R3005A Adjusting Disc, #3
33 R3006A Locking Disc, #3
34 L5049P Burner
w/Cap & Elbow, Right
35 L5048P Burner
w/Cap & Elbow, Left
36 L5058X Burner, Complete, FC8
37 N3060P Manifold Tee Assy, FC8
38 L5074X Booster Burner Assy
39 R3129X Orifice, LP, #43 Drill (2)
40 R3117X Orifice, Nat, #25 Drill (2)
41 R3008X Orifice, Blank - Not drilled
42 A4265X Flame Diverter, Slide Out (2)
43 A4263X Flame Diverter, Center (1)
44 A4262X Flame Diverter, Side (2)
45 A4586T Flue Slide Assy, Lower Left
46 A4587T Flue Slide Assy, Lower Right
47 S1010X Knob, Flue Slide
48 A4543X Ignitor/Sensor Plate Assy
49 A4698X Ignitor Shield
50 M2040X Ignitor
51 A4554E Ignitor Bracket
52 A4567T Burner Screen Assy
53 M1167X Flame Sensor
