Bakers Pride DS-805 Specifications

IL FORNO CLASSICO
BAKERS
PRIDE

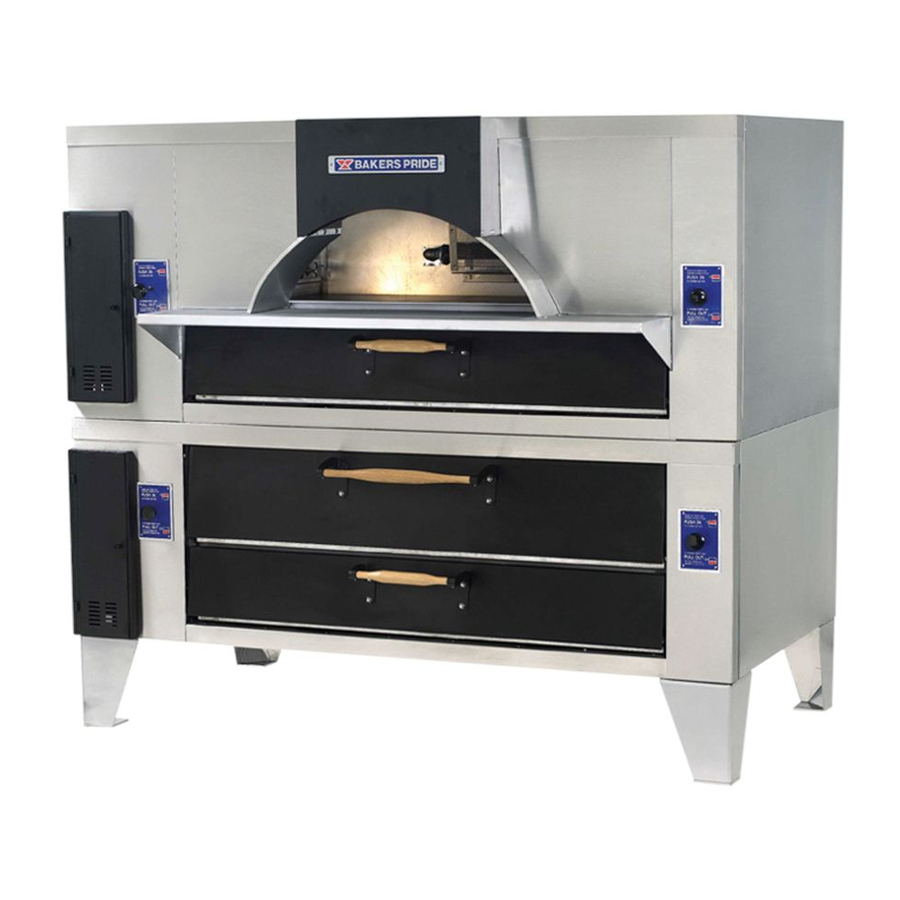

Model FC-616/Y-600DSP
SPECIFICATIONS
The BAKERS PRIDE IL Forno Classico combines the ambiance of a
traditional old world brick oven with the convenience, control and
precision of modern technology, and is perfect for display kitchens
and exhibition cooking.
The IL Forno Classico features steel-reinforced, arched open hearth
up to 32" wide (813mm) with a visible 20,000 BTUH open flame
burner for ambiance and additional top heat with a large lintel
plate/landing shelf for ease of operation. Another 120,000 BTUH
gas dual burner provides thermostatically controlled temperatures
with independent, operator-controlled top & bottom heat control
dampers and micro slides for perfectly balanced results.
IL Forno Classico is designed and engineered to be used either as-
is, or finished and trimmed with brass, copper, etc. for an elegant
high-tech presentation, or finished DSP style with tile, stone or thin
brick applied directly to the oven exterior, or built-in behind a
decorative facade of brick, stone or tile for an old-world look.
The IL Forno Classico is available in three sizes to meet your space
requirements and may be stacked on our standard deck ovens for
increased capacity & production in limited spaces. Designed and
engineered to fit through a standard door opening, the IL Forno is
assembled on-site thus eliminating the need for heavy equipment
and cranes.
Standard features include removable 1 1/2" (38mm) thick hearth
baking decks, 300°-650°F (149°-343°C) throttling thermostat,
removable front mounted flue for easy access for installation of
hearth decks, standard brick lining, front or side mounted controls
behind an extra large black powder-coated access panel, rear gas
& electrical connections, combination gas control valve, slide-out
flame diverters for even heat distribution, fully insulated, spring-
balanced doors and heavy duty, 7-gauge steel legs in a variety of
heights, with or without casters.
Interior oven frame is constructed of 1/4" (6mm) heavy-duty angle
iron, completely welded to form a single unitized section. The oven
body and lining are then welded to the oven framework. Oven
interiors are manufactured of high-heat resistant 16-gauge
aluminized steel.
2 years limited parts & labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
www.bakerspride.com
BRICK
LINING NOW
STANDARD!
Job ____________
GAS DECK OVENS
DOUBLE DECK MODELS
Model FC-516 / D-125
q
Model FC-516 / DS-805
q
q Model FC-616 / Y-600
Model FC-816 / Y-800
q
STANDARD FEATURES
q Up to 265,000 BTUH total in natural or LP gas (CE not
available in LP)
Brick lining for additional top heat & quicker recovery
q
q Stackable with traditional deck ovens
q 120v, 15 amp igniter with cord & plug
q 300°-650° F (149°-343°C) throttling thermostat
q Top & bottom heat control dampers & micro-slides
Combination gas controls with valve, regulator & safety pilot
q
q Side or front mounted controls
q Rear gas & electrical connections
Heavy-duty, slide-out flame diverters
q
q 1 1/2" (38mm) thick hearth baking decks
q Stainless steel or black powder coated doors, control panel
and flu cover
q Combination chamber door in black powder coat with custom
hard wood handles or stainless steel with tubular chrome
plated handles
q Skirts provided on DSP style ovens only
Spring balanced combustion chamber door
q
q 7-Gauge legs with casters (casters not provided on DSP style
units)
Fully insulated throughout
q
q 2 Year limited part and labor warranty
OPTIONS & ACCESSORIES
q Natural Wood smoke essence boxes
q Eye Brow style exhaust hood
q Custom height legs
q Stainless steel lintel plate cover
2 1/2" thick fire bricks (not available on FC-816)
q
q 208v, 220v or 240v electrical connection
q Remote controls for booster burner
Automatic oven starter
q
q On-site training & chef support
CERTIFICATIONS
®
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
CERTIFIED
