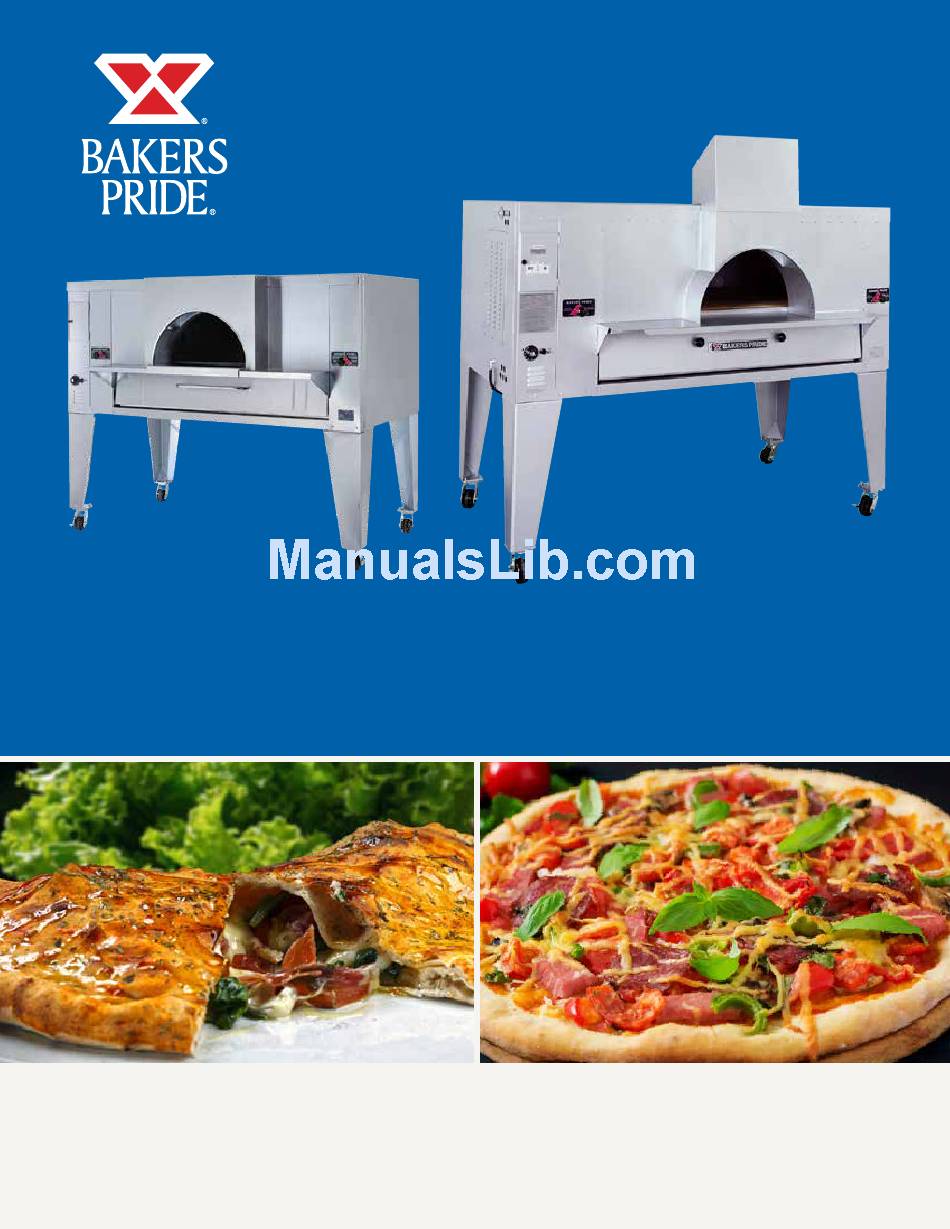

- Page 1 OPERATION MANUAL IL FORNO & SUPERDECK SERIES GAS DECK OVENS SERIES: FC B U I LT BY C R A F T S M E N . T E S T E D BY T I M E ®...
- Page 2 Read the installation, operating and maintenance instructions thoroughly before installing or servicing this Bakers Pride Oven Company, LLC is a wholly owned equipment. subsidiary of Standex International Corporation. All gas operated Bakers Pride deck ovens are intended ®...
-
Page 3: Table Of Contents
G20 @ 20mbar I2E+ G20/25 @ 20/25mbar For North America: 120 or 208/240 Volts, 1 Phaze, 60 Hz. TYPE OF GAS MANIFOLD PRESSURE Natural 3.5” Water Column 10” Water Column Models Covered: MODEL BTU/HR MODEL BTU/HR FC-516 140,000 FC-616 140,000 FC-816 140,000... -
Page 4: Installation Instructions
IL FORNO CLASSICO OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Receiving: Clearances: Read the notice on the outside carton regarding Combustible Non-Combustible damage in transit. Damage discovered after opening Construction Construction the crate(s) / carton(s) is “CONCEALED DAMAGE” Minimum Clearance from: Left 3”... -
Page 5: Set-Up
IL FORNO CLASSICO OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS A. Provisions must be made for easy access to the louvered service panel on the left side of the unit. A removable panel at least 16” x 31” (406 x 787 mm) in line with the service panel to facilitate a service man to work will be satisfactory. -
Page 6: Mounting Legs With Casters
Make sure that the two metal hearth liner sheets cover the entire bottom of the chamber. (b) Three (model FC-616) and four (models FC-516 Sketch E Sketch F and FC-816) slabs of the Pizza Deck are provided with the oven. -
Page 7: Three Deck Installation
(d) Use metal shims as needed to level the slabs. for FC616)(17 1/2 x 13 3/4 (left to right) for (e) Use one (FC-516) or two (FC-816) wedges in the FC516) in a similar fashion, raising the slab back and another on one side of the decks. The... - Page 8 IL FORNO CLASSICO OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Top Brick Lining Layout...
-
Page 9: Booster Burner Installation
IL FORNO CLASSICO OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Booster Burner Installation: d) The hot surface ignition system, all related switches, indicator light and fuse, are all NOTICE connected through the 6 ft (1830 mm) power supply cord. The power supply cord must be plugged into a properly grounded three-prong The Booster Burner and the Booster Burner Guard receptacle. -
Page 10: Safety Pilot Operation
IL FORNO CLASSICO OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS provided. It should be as close as possible to the a) Partially depress and turn the gas cock dial to place where the gas line enters the oven. It must be the “OFF” position. located where it is easily and quickly accessible. -
Page 11: Main Burner
IL FORNO CLASSICO OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS After the pilot burner is ignited, when heat is desired, adjustment for the Main Burner are all done at the turn gas cock dial to the “ON” position and set the factory. These adjustments are sealed before the oven thermostat dial to the desired temperature. -
Page 12: Operating Instructions
IL FORNO CLASSICO OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Baking: WARNING Pizza can be baked on the deck, on a screen or in a pan. When you determine the combination of method, If gas odor is detected at any time, immediately ingredients and temperature that gives the right bake shut-off the gas supply valve for the oven. -
Page 13: Helpful Hints
This appliance must be serviced only by an cleaner sample supplied or by using any authorized service agent commercial clea ner recommended for stainless steel. Bakers Pride offers a stainless steel cleaner Bakers Pride ovens are designed to be as ®... -
Page 14: Painted Surfaces
IL FORNO CLASSICO OVEN OPERATION MANUAL CLEANING AND MAINTENANCE Painted Surfaces: crumbs or carbon, the baking decks and the oven cavity may vacuumed when the oven is cold. Do (a) Washing with mild soap and water solution is not use water or other liquids on the baking decks adequate to keep the painted surfaces clean. -
Page 15: Troubleshooting Chart
Thermopile may not be positioned in pilot flame. Ensure that the tip of thermopile is in pilot flame. Thermopile may be defective Call local authorized Bakers Pride Service Agent. Oven too Hot Thermostat set too high. Lower the thermostat setting and see if flame reduces in size. -
Page 16: Wiring Diagram
IL FORNO CLASSICO OVEN OPERATION MANUAL WIRING DIAGRAM Wiring Diagram 24V – FC SERIES – 120V, 208V or 230V, 1PH... -
Page 17: Warranty
Bakers Pride Factory Authorized Service Center. This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. Bakers Pride shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit. - Page 18 Food Service Equipment Group The Standex Food Service Equipment Group (FSEG) is a manufacturer of innovative commercial food service equipment offering a wealth of refrigeration and cooking expertise. Products include walk-in coolers and freezers; hot and cold display cabinets, cases, and storage systems; commercial ovens, rotisseries, and cooking equipment;...
