Clare Controls ClareOne Installation Sheet

ClareOne Door Window Sensor with Shock
Installation Sheet
Last modified: 09/18/20
Model number:
CLR-C1-DWSHK (White)
CLR-C1-DWSHK-B (Brown)
Description

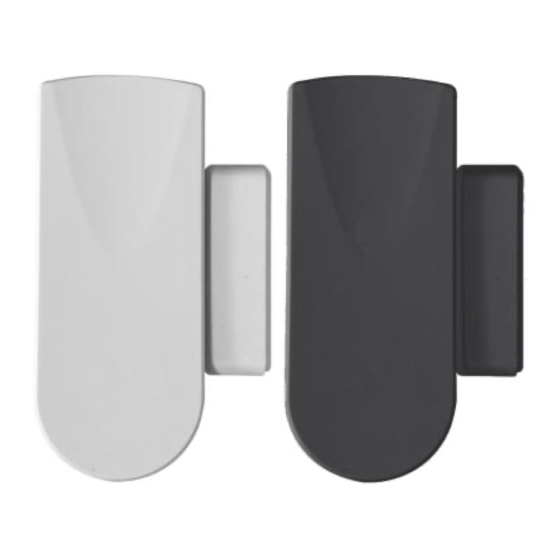

The CLR-C1-DWSHK is a wireless window sensor designed
for dual protection; open/close and to detect vibrations made
by an intruder attempting to break a window. The sensor
contains a piezo detection device that detects vibrations when
mounted on a window frame. The detection circuit can be
adjusted for sensitivity during installation to ensure maximum
coverage. The device also has a built-in reed switch to monitor
the open and close of the door or window. When activated, the
sensor transmits a signal to the control panel. These are the
signals the unit provides: supervisory, tamper, and low battery
(as needed). The sensor is powered by (2) replaceable 3-VDC,
lithium coin-cell batteries.
Note: The sensor has 2 alarm zones:
•
Alarm zone 1- reed switch
•
Alarm zone 2- shock/glass break
Installation
When installing the door window shock sensor, follow the
below guidelines.
© 18SEP20 Clare Controls, LLC.
•
Mounting the sensor on metal can affect the transmitting
range performance. Therefore, test the sensor from the
desired location using the installer sensor test in the
ClareOne panel, before permanently mounting it.
•
Mount the sensor on the frame of the door or window.
•
Mount to either wood or metallic surfaces.
•
After mounting the sensor, test the sensor using the
procedure in the section "Testing the Sensor".

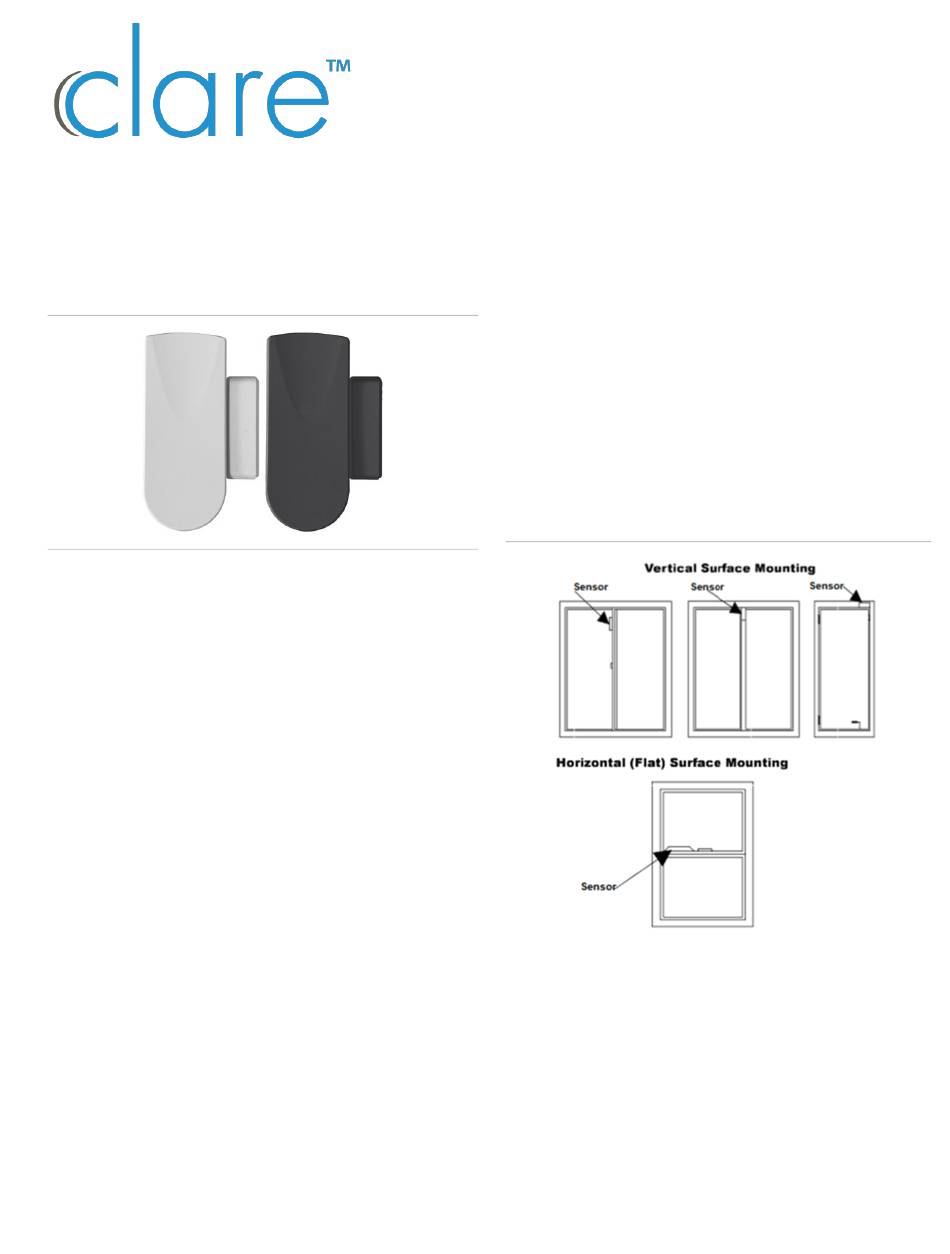

Figure 1: Door window sensor placement
Mounting the sensor
Mount the sensor using the supplied mounting screws for
permanent mounting installations or using the supplied double-
.
sided tape is optional
Note: The gap between the sensor and magnet should not
exceed .38 in (9.65 mm).
Mounting screws
1. Remove the sensor base from the sensor.
1 / 4
DOC ID – 1944 • Rev 05
