Page 1: Table Of Contents

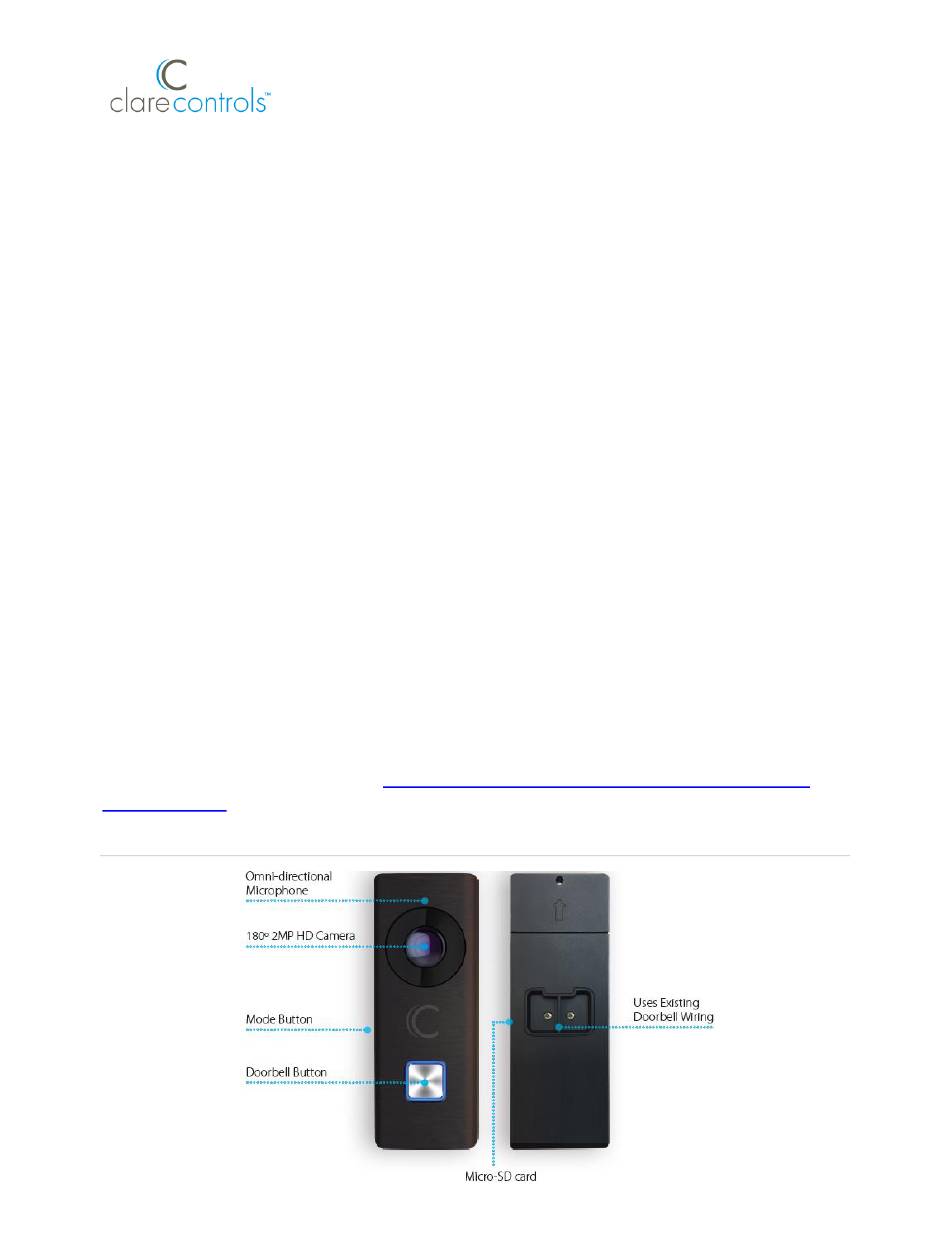

Last modified: 01/23/19 Introduction Thank you for choosing Clare Controls. In today’s competitive market place, we can appreciate that you have many choices for your home automation needs. This document is intended as a quick-start guide, not a full product guide. For...
Page 2: Included
Included The below items are included with the Clare Video Doorbell. Clare Video Doorbell power requirements The Clare Video Doorbell only works with mechanical doorbells that use 16- 24VAC power. To learn your current doorbell’s voltage, consult the original doorbell Note: packaging or a licensed electrician.
Page 3: Wi-Fi Signal Strength Requirements
Figure 2: Mechanical versus digital doorbell Wi-Fi signal strength requirements The Clare Video Doorbell must be connected to a 2.4GHz network and requires a minimum -60dBm Wi-Fi signal strength at the installation location. We recommend downloading a Wi-Fi analysis tool for your phone or tablet to check signal strength.
Page 4 3. Mount the supplied spacer or wedge plate to the doorbell location using the supplied wedge/space screws. Note: The angled wedge plate can be used to change the viewing angle of the doorbell. Make sure to pull the doorbell wires through the center of the wedge plate/spacer.
Page 5 If the existing wiring is not long enough, follow the instructions below to extend the wiring. a. Insert the wires into the provided connectors. b. Use pliers to snap the button into place. Notes • Do not strip the wires, the connectors pierce the insulation. •...
Page 6: (Optional) Installing The Resistor And Power Booster
(Optional) Installing the resistor and power booster resistor can be installed when using a mechanical chime to eliminate potential doorbell buzzing, and the power booster improves doorbell sound. To install the resistor: 1. Wrap the ends of the supplied resistor around the terminals on the doorbell. 2.
Page 7: Creating A Clarevision Plus Account
3. Remove the cover from your mechanical chime and then connect end B of the Red wire to the TRANS terminal and end B of the Black wire to the FRONT terminal on the mechanical chime. 4. Remove the paper backing and adhere the power booster and screw terminal to the mechanical chime.
Page 8 a. Tap Mobile or Email (preferred), and then read and select the checkbox for the Terms of Service. b. Select the country, and then tap Finish in the top-right. Email i. Enter the customer’s email address, and then tap Next. ii.
Page 9 To setup the ClareVision Plus account using an Android device: 1. Download and install the ClareVision Plus app. – Google Play ClareVision Plus for Android ClareVision Plus for iOS - iTunes 2. Launch the app, select your country/region, and then tap the Checkmark icon in the top-right corner.
Page 10 Note: The ClareVision Plus account used must be that of the homeowner. a. Read the Privacy Policy, and then tap Agree. b. The Mobile Phone Number option is selected by default. Enter the mobile device’s number. – or – Tap Register by Email Address at the bottom of the screen, and then enter your email address.
Page 11 d. Check the SMS or email message for the verification code, copy the code, and then return to the ClareVision Plus app. e. Enter the verification code into the field, and then tap Next. f. Enter your preferred username and password, confirm the password, and then tap Finish.
Page 12: Setting Up The Doorbell In The Clarevision Plus App
5. Add your doorbell. Setting up the doorbell in the ClareVision Plus app Once the camera is installed, follow the steps below to complete doorbell setup and final installation. To setup the doorbell in the ClareVision Plus app: 1. Once the LED on the front of the doorbell is solid red, configure the camera. For troubleshooting and LED status see Troubleshooting and light status below.
Page 13: Understanding The Clarevision Plus App Icons
To install complete final installation: 1. Place the doorbell faceplate on the device, and then gently press the faceplate into place. 2. Install the security screws, 1 at the top and 1 at the bottom. Understanding the ClareVision Plus app icons The below icon guide helps navigate and configure settings in the ClareVision Plus app.
Page 14: Configuring The Motion Detection Area
Volume control This icon adjusts the volume of the selected stream. Camera view (1 monitor) This icon allows the user to view multiple streams as once. Zoom This icon zooms in on the stream. Back This icon brings the user back to the previous screen. Settings This icon allows the user to access the device’s settings.
Page 15 3. Select Alarm Notifications and verify that they are enabled. 4. Tap Draw Motion Detection Area, and then tap the Edit icon. 5. Select desired motion area. 6. Tap to save your changes. Motion detection sensitivity You can adjust how sensitive the doorbell detect motion by changing the sensitivity settings under the Alarm Notifications meu.
Page 16: Troubleshooting And Light Status
Troubleshooting and light status Use the information below to troubleshoot the Clare Video Doorbell. To factory reset the doorbell: 1. Press and hold the Mode button for 15 seconds, or until the device says, “Your device is rebooting”. This factory resets the Clare Video Doorbell. Note: You can only factory reset the doorbell after it has been connected to a Wi-Fi network.
Page 17: Warranty Information
Warranty Information Clare Controls offers a three (3) year limited warranty on original Clare Controls components, from the date of shipment form Clare Controls. To view complete limited warranty details, including limitations and exclusions, see www.clarecontrols.com/warranty.
