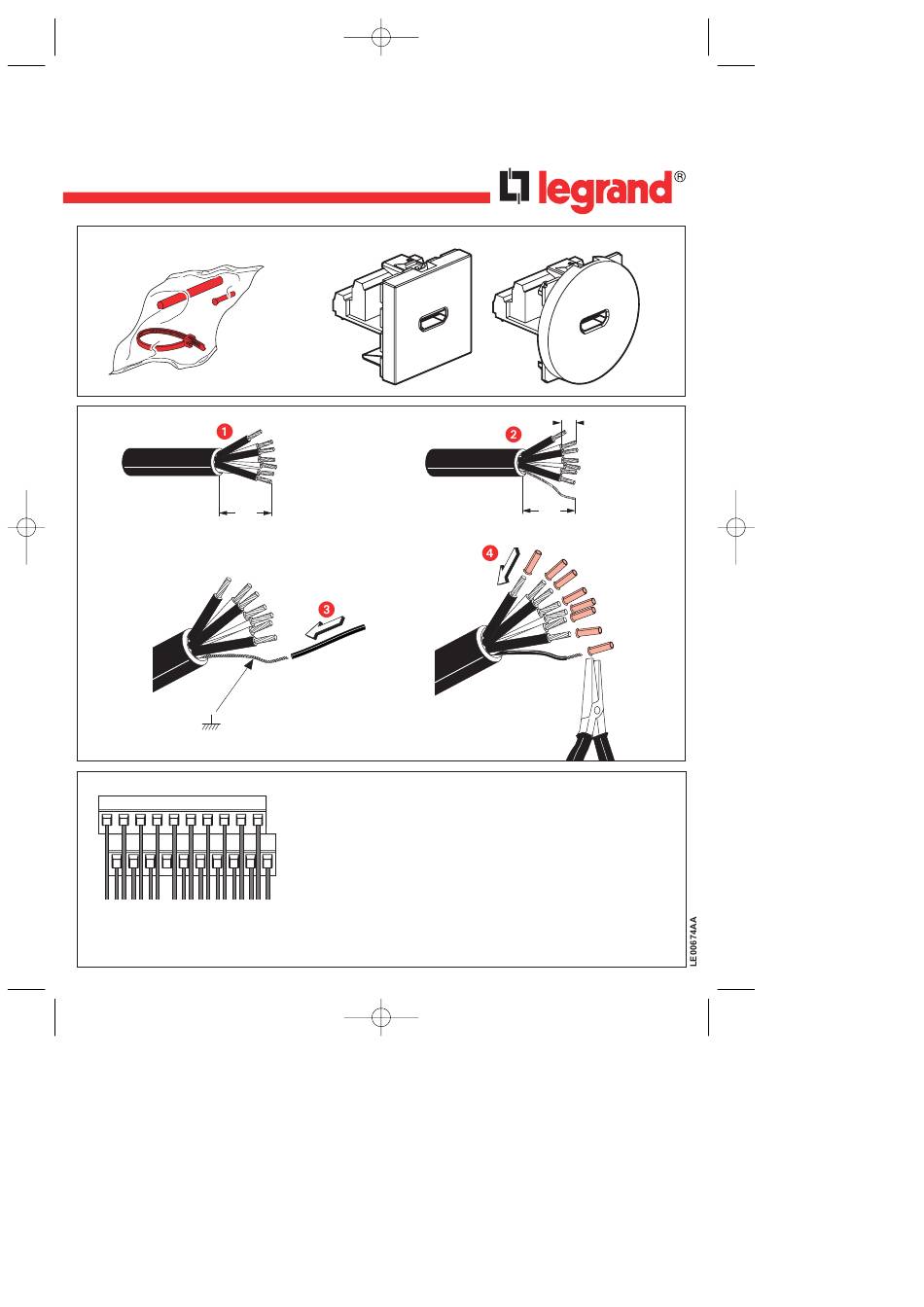

Prise HDMI
•
HDMI stekker
•
HDMI socket
•
HDMI contactdoos
•
Toma HDMI
673 17/787 68
x 5
x 19
x 1
1
2
3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
9:56
Page 1
30
1 - TMDS Data 2+
2 - TMDS Data 2
3 - TMDS Data 2-
4 - TMDS Data 1+
5 - TMDS Data 1
6 - TMDS Data 1-
7 - TMDS Data 0+
8 - TMDS Data 0
9 - TMDS Data 0-
10 - TMDS Clock+
11 - TMDS Clock
12 - TMDS Clock-
6
30
13 - CEC
14 -
15 - SCL
16 - SDA
17 - Masse/Erdungsleiter/ground/Massa/
Masa DDC/CEC
18 - + 5v
19 - HPD
20 - Tresse générale(masse)/Haupterdungsleiter/
general (grounding) strand/
Algemene kabeltros (massa)/
trenza general (masa)
