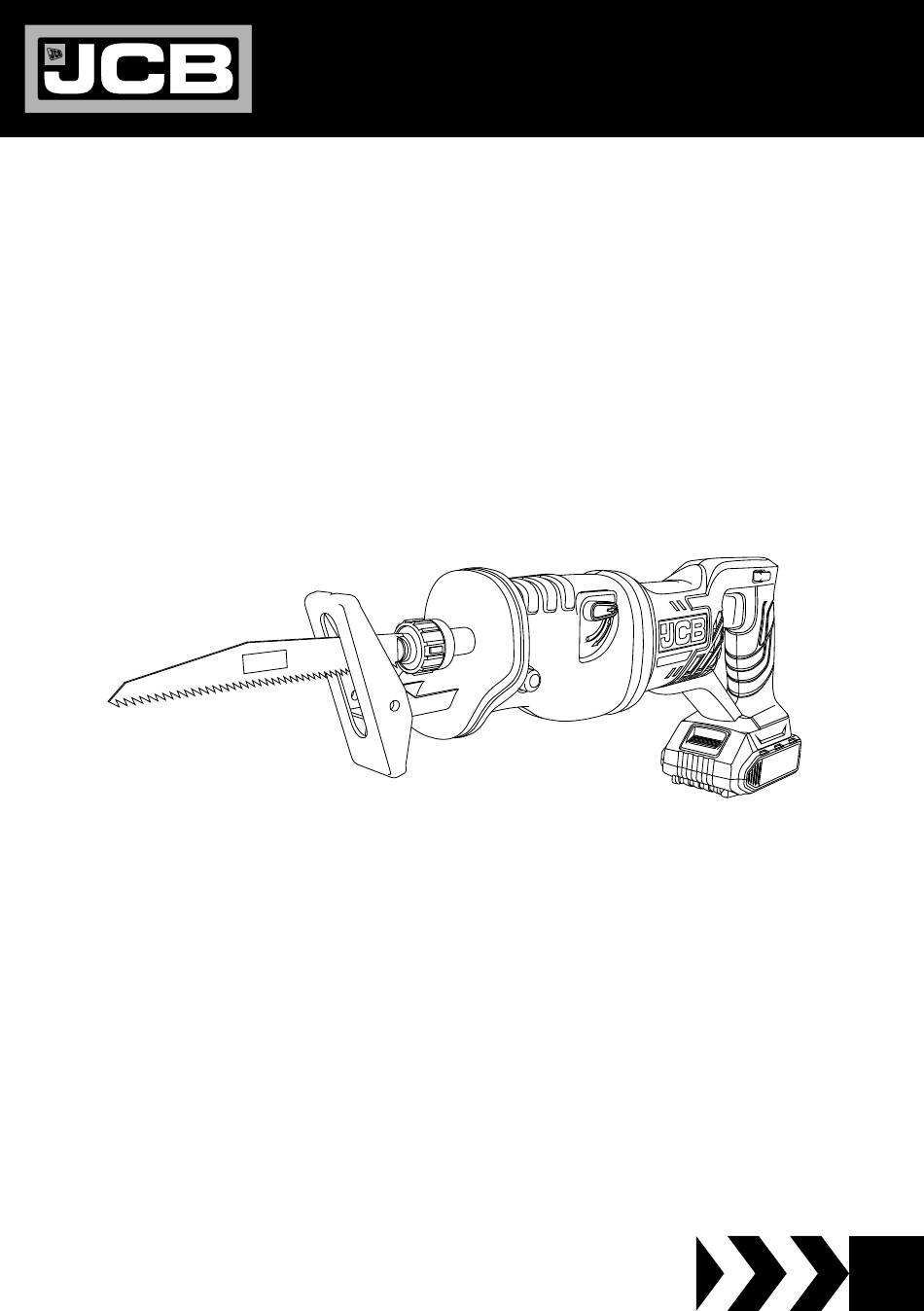

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL JCB-20RS Original Instructions IM-20RS-EN Iss: 12/2019...
- Page 2 Directive 2012/19/EU. It will then be recycled or dismantled in order to reduce the impact on the environment. Electric and electronic equipment can be hazardous for the environment and for human health since they contain hazardous substances. JCB-20RS Instruction & User Manual...
- Page 3 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. JCB-20RS Designation of the tool: 20 - 20Vdc, RS - Reciprocating Saw JCB-20RS Instruction & User Manual...
- Page 4 JCB-20RS Instruction & User Manual...
-
Page 5: Table Of Contents
CHARGER TECHNICAL DATA NOISE INFORMATION VIBRATION INFORMATION OPERATING INSTRUCTIONS Intended Use Battery Saw Blade Installation and Removal ON/OFF Trigger Cutting Action Selection Adjusting Pivoting Shoe Plate Sawing MAINTENANCE Transport and Storage WARRANTY STATEMENT GENERAL CERTIFICATE OF CONFORMITY JCB-20RS Instruction & User Manual... -
Page 6: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. JCB-20RS Instruction & User Manual... -
Page 7: Power Tool Use And Care
Use of any other accessories, or storing power tools. Such battery packs may create a risk of injury and fire. preventive safety measures reduce the risk of starting the power tool accidentally. JCB-20RS Instruction & User Manual... -
Page 8: Service
This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. JCB-20RS Instruction & User Manual... -
Page 9: Tool Specific Safety Warnings
Ensure that sparks and metal cuttings are directed so as to not cause a hazard. Be aware that there is a running- on of the saw blade after the ON/OFF Trigger is released. JCB-20RS Instruction & User Manual... - Page 10 Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback. JCB-20RS Instruction & User Manual...
-
Page 11: Charger Safety
This appliance can be used by children aged from 8 years and above To reduce risk of injury, only charge and persons with reduced physical, JCB rechargable batteries. The sensory or mental capabilities or charger and battery packs are specifically lack of experience and knowledge designed to work together. -
Page 12: Component List
HAND GRIP CHARGE INDICATOR *If applicable TOOL TECHNICAL DATA Voltage 20V DC (From Attached Battery) Stroke Rate : 0-3000/min Stroke Length 20mm Max. Cutting Depth (wood) 100mm Product Weight (Body only, w/o battery) 1.95 kg JCB-20RS Instruction & User Manual... -
Page 13: Battery Technical Data
LITHIUM ION BATTERY TECHNICAL DATA Charge Time Charge Time Charge Time Battery Battery Battery Voltage (Fast Charger: (Super Fast Charger: (Dual Charger: JCB- Code Size Capacity JCB-20VFC) JCB-20VSFC) 20DC) Small 1.5Ah 30 mins 20 mins 25 mins JCB-20-15LI Small 2.0Ah... -
Page 14: Vibration Information
Avoid using tools in temperatures of 10 ° exposure. or less. Plan your work schedule to spread any high THIS TOOL MAY CAUSE HAND-ARM vibration tool use across a number of days. VIBRATION SYNDROME (HAVS) IF USAGE IS NOT ADEQUATELY MANAGED. JCB-20RS Instruction & User Manual... -
Page 15: Operating Instructions
NOTE Make sure the ON/OFF Trigger (6) is not Charger is connected to operated when inserting or removing the mains power battery. Use only JCB batteries: JCB-20- Connected battery is 15LI, JCB-20-20LI, JCB-20-30LI, JCB-20- charging 40LI and JCB-20-50LI. Connected battery is fully... -
Page 16: Saw Blade Installation And Removal
Select the correct saw blade for cutting the Cutting Action Selection material in question. The JCB-20RS has two types of cutting Rotate the blade clamp collar (4) fully. Insert action: straight reciprocating action or the blade fully home into the slot in the pendulum (orbital) action. -
Page 17: Adjusting Pivoting Shoe Plate
Brush inspection Release the ON/OFF Trigger and wait one Brush inspection and replacement should or two seconds for the electronics to reset, only be performed by an authorised JCB then restart the power tool. service centre. JCB-20RS Instruction & User Manual... -
Page 18: Transport And Storage
Power tool lubrication Ensure that the power tool is not at risk of tipping over or exposed to excessive JCB power tools are properly lubricated in vibration and shocks during transport, the factory and are ready for use. especially if the tool will be transported by Repairs and servicing car or other vehicle. - Page 19 JCB-20RS Instruction & User Manual...
-
Page 20: Warranty Statement
In the unlikely event your JCB Power Tool is subject to a manufacturing fault within the warranty period, please contact the seller/retailer where the item was purchased. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. - Page 21 JCB-20RS Instruction & User Manual...
-
Page 22: General Certificate Of Conformity
IEC 55014-1:2017 IEC 55014-1:2006+A1+A2 IDENTIFICATION DETAILS OF IMPORTER/US DOMESTIC MANUFACTURER CERTIFYING PRODUCT COMPLIANCE: Name: JCB Tools (Yellow and Black Tools Limited) Address: 55 Romsey Industrial Estate Romsey, SO51 0HR Tel no: +44 1794 834250 CONTACT INFORMATION OF INDIVIDUAL MAINTAINING RECORDS OF TEST RESULTS: Name: Tim Burgoyne, QA Technical Manager &...
