- Page 1 Safety and operating manual Jigsaw JCB-JS710LE JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 3: General Power Tool Safety Warnings
Unmodified plugs and matching are tired or under the influence outlets will reduce risk of electric of drugs, alcohol or medication. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... -
Page 4: Power Tool Use And Care
If devices are provided for the and any other condition that may JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... -
Page 5: Reciprocating Saw Safety Warnings
1. Hold reciprocating saw by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 6 Electric and electronic equipment can be hazardous for the environment and for human health since they contain hazardous substances. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 7: Component List

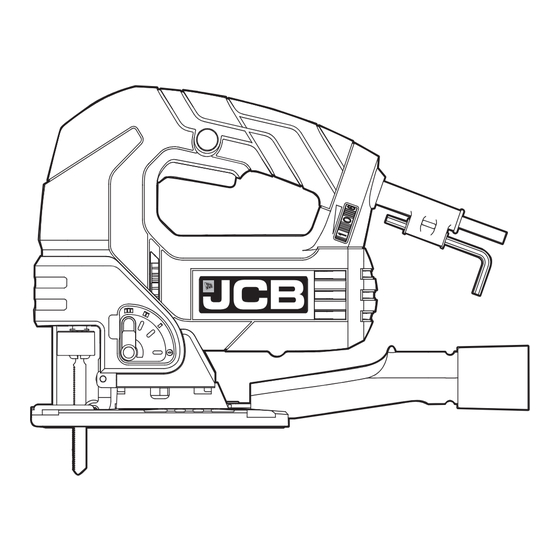

10. ROLLER GUIDE 11. SAW BLADE* 12. FINGER PROTECTION 13. TOOL-FREE BLADE HOLDER 14. WORK LIGHT 15. PARALLEL GUIDE (SEE FIG. F) *Not all the accessories illustrated or described are included in standard delivery. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... -
Page 8: Technical Data
How the tool is used and the materials are cut or drilled. The tool being in good condition and well maintained. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 9 Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 10: Intended Use
(See B) according to the material, material thickness and blade specification to be used (also possible during no load operation). See Chart 1 for general guidance on speed JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 11 Ensure the edge of the blade is located in the groove of the blade guide (See Fig E). To remove a blade, holds the blade and rotate JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 12: Roller Guide
7. ROLLER GUIDE Ensure the blade is located and runs smoothly in the groove (See E) otherwise the pendulum function will not work correctly and the blade will not be supported during cutting. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... -
Page 13: Base Plate
10. BASE PLATE ANGLE ADJUSTMENT Use an Allen key (5). Loosen the bolts securing the base plate (See Fig H). For preset angles rotate so the lines of the angle on the JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 14 3. DUST BLOWER AIR HOLE This is a small aperture located underneath the housing just behind the blade guide. Ensure this is kept clean to allow the air flow to JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 15: Work Light
To reduce edge chipping, clamp pieces of waste wood at both ends on both sides and cut through the waste wood during cutting. CIRCLE CUTTING Do not use the pendulum action JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... - Page 16 Excessive blade force may reduce the life of the blade or damage the motor. To reduce heat during metal cutting, add a little lubricant along the cutting line.. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
-
Page 17: Maintenance
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092... -
Page 18: Warranty Statement
WARRANTY STATEMENT A product of hard work In every corner of the world you'll find a JCB machine. Since our beginnings in 1945, we have always invested heavily in research and development, keeping JCB at the cutting edge of innovation. Today, JCB has some of the finest engineering facilities across the globe, producing a range of over 300 machines and maintains a reputation for unrivaled customer service. -
Page 19: Ec Declaration Of Conformity
The person authorised to compile the technical file, Name: Russell Nicholson Address: Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK 2014/11/25 Allen Ding Deputy Chief Engineer,Testing & Certification JCB, SO53 3LE www.JCBDIY.com Customer Helpline 0333 0143092...
