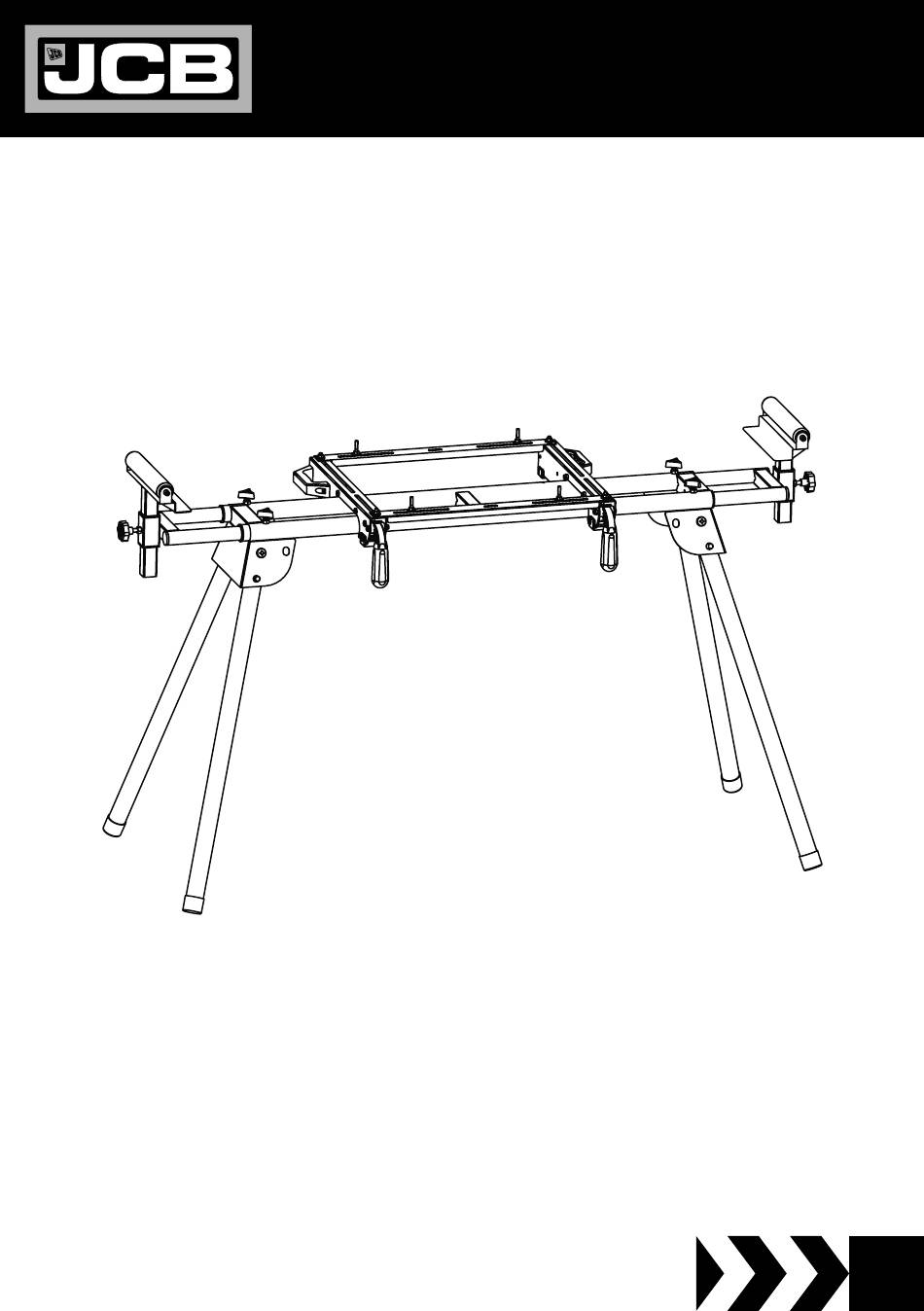

- Page 1 ORIGINAL INSTRUCTIONS JCB-MS-ST-NA Original Instructions IM-MS-ST-NA-EN Iss: 09/2019...
- Page 2 State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www. P65Warnings.ca.gov/wood. JCB-MS-ST-NA Instruction & User Manual...
-
Page 3: Table Of Contents
Contents SAFETY WARNINGS COMPONENT LIST TECHNICAL DATA OPERATING INSTRUCTIONS Intended Use Before starting the equipment ASSEMBLY AND OPERATION Cleaning, maintenance, storage and transport WARRANTY STATEMENT JCB-MS-ST-NA Instruction & User Manual... -
Page 4: Safety Warnings
All parts of the mitre saw stand, including any safety devices, must be correctly mounted in order to guarantee trouble-free operation. JCB-MS-ST-NA Instruction & User Manual... -
Page 5: Component List
Mitre saw stand Spring washer 6mm 8x Support arm 2x Nut M6 8x Crossbar 2x Star-grip screw (small) 4x Adjustable workpiece support 2x Star-grip screw (large) 2x Coach bolt M6x16 4x Coach bolt M6x60 4x JCB-MS-ST-NA Instruction & User Manual... -
Page 6: Technical Data
750 mm 810 - 910 mm Height range of the workpiece supports Width range of the workpiece supports 1000 - 1650 mm Max. permissible load 200 kg Weight net / gross 13.3 / 15.1 kg JCB-MS-ST-NA Instruction & User Manual... -
Page 7: Operating Instructions
Any use beyond this is improper use. The manufacturer is not responsible for the resultant damages, the user bears this risk alone. JCB-MS-ST-NA Instruction & User Manual... -
Page 8: Assembly And Operation
(B.2). Lower the rear side onto the bed and fasten the support arm in place on the frame bed by pressing the locking lever (B.3). Disassembly is performed in reverse order. JCB-MS-ST-NA Instruction & User Manual... - Page 9 Insert the workpiece support (D) into the described on page 8. support post (N) of the frame bed and fasten in place with the star-grip screw (K). Repeat the above for the other support. JCB-MS-ST-NA Instruction & User Manual...
- Page 10 Loosen the star-grip screws (J) to slide the workpiece support horizontally. Set the desired distance between the saw blade and the stop surface (D.1). (Fig. 11) Lock your setting by tightening the star-grip screws (J) again. JCB-MS-ST-NA Instruction & User Manual...
-
Page 11: Cleaning, Maintenance, Storage And Transport
Storage vehicle. ATTENTION! Store the mitre saw stand only in dry locations. Do not allow access to the mitre saw stand by unauthorised persons or children. JCB-MS-ST-NA Instruction & User Manual... -
Page 12: Warranty Statement
In the unlikely event your JCB Power Tool is subject to a manufacturing fault within the warranty period, please contact the seller/retailer where the item was purchased. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. - Page 13 JCB-MS-ST-NA Instruction & User Manual...
