30 Pine Street • New Rochelle • New York • 10801
BAKERS
1 - 800 - 431 - 2745
PRIDE
www.bakerspride.com
Dante
SERIES
FLB-24R/GS
Model Number:
Serial Number
6/00
Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas.
914 / 576 - 0200
914 / 576 - 0605
fax
US & Canada
web address
PARTS LIST
FLB-24R/GS
n )
2 S h o w
( F L B - 7
Natural

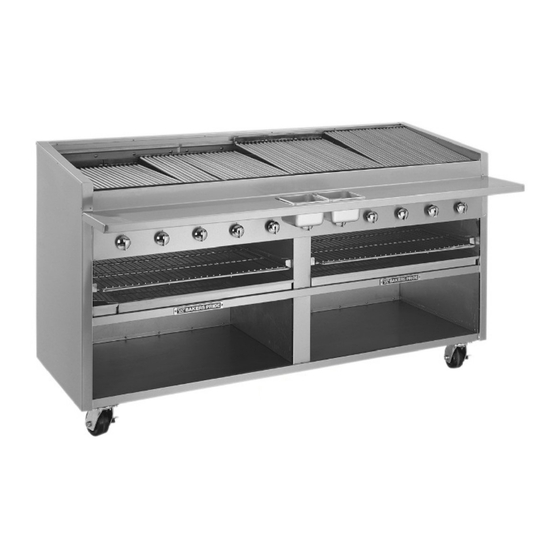

Gas Char Broiler
Type of Gas
L.P.
Other
Page 1 of 4
Advertisement
Related Manuals for Bakers Pride Dante FLB-24GS
Summary of Contents for Bakers Pride Dante FLB-24GS
-
Page 1: Parts List
30 Pine Street • New Rochelle • New York • 10801 914 / 576 - 0200 914 / 576 - 0605 BAKERS 1 - 800 - 431 - 2745 PRIDE www.bakerspride.com Dante SERIES FLB-24R/GS Model Number: Serial Number 6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. FLB-24R/GS US &... - Page 2 FLB-24R/GS Gas Char Broiler Figure A Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 30 Pine Street • New Rochelle • New York • 10801 www.bakerspride.com Exterior / Interior (F L B -6 0 S h (w/Standard Valves) (w/Opt.
- Page 3 G5032U Grease Drain Assy-24 G5212K Manifold Cover G5060K Side Trim, Left G5061K Side Trim, Right G5205K Rating/Instruction Plate Mount U1044X Bakers Pride Name Plate, 8" G5039K Bottom Grate Support, L or R Side T1047X Glo-Stones, 1/2 Lot (20#) T1048X Glo-Stones, Full Lot (40#) T1197X Top Roll-A-Grate, 9"...
- Page 4 FLB-24R/GS Gas Char Broiler Figure C Item Part # Description R3136X Hood Orifice #54 (LP) R3130X Hood Orifice #44 (Nat) L5077X Burner, Center Feed R3032X Gas Valve S1094X Knob, Gas Valve R3128X Gas Valve (used w/Pilot Safety) S1301X Knob, Gas Valve, CE G5064K Pilot Bracket (used w/Pilot Safety) M1359X Pilot Burner...
