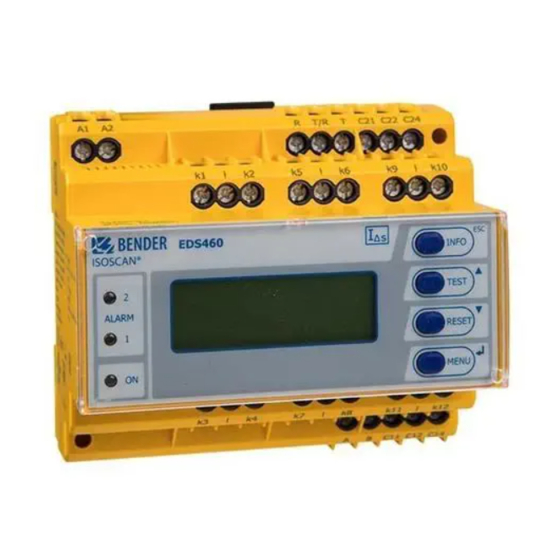

Bender EDS460-DG Operating Manual

Insulation fault evaluators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

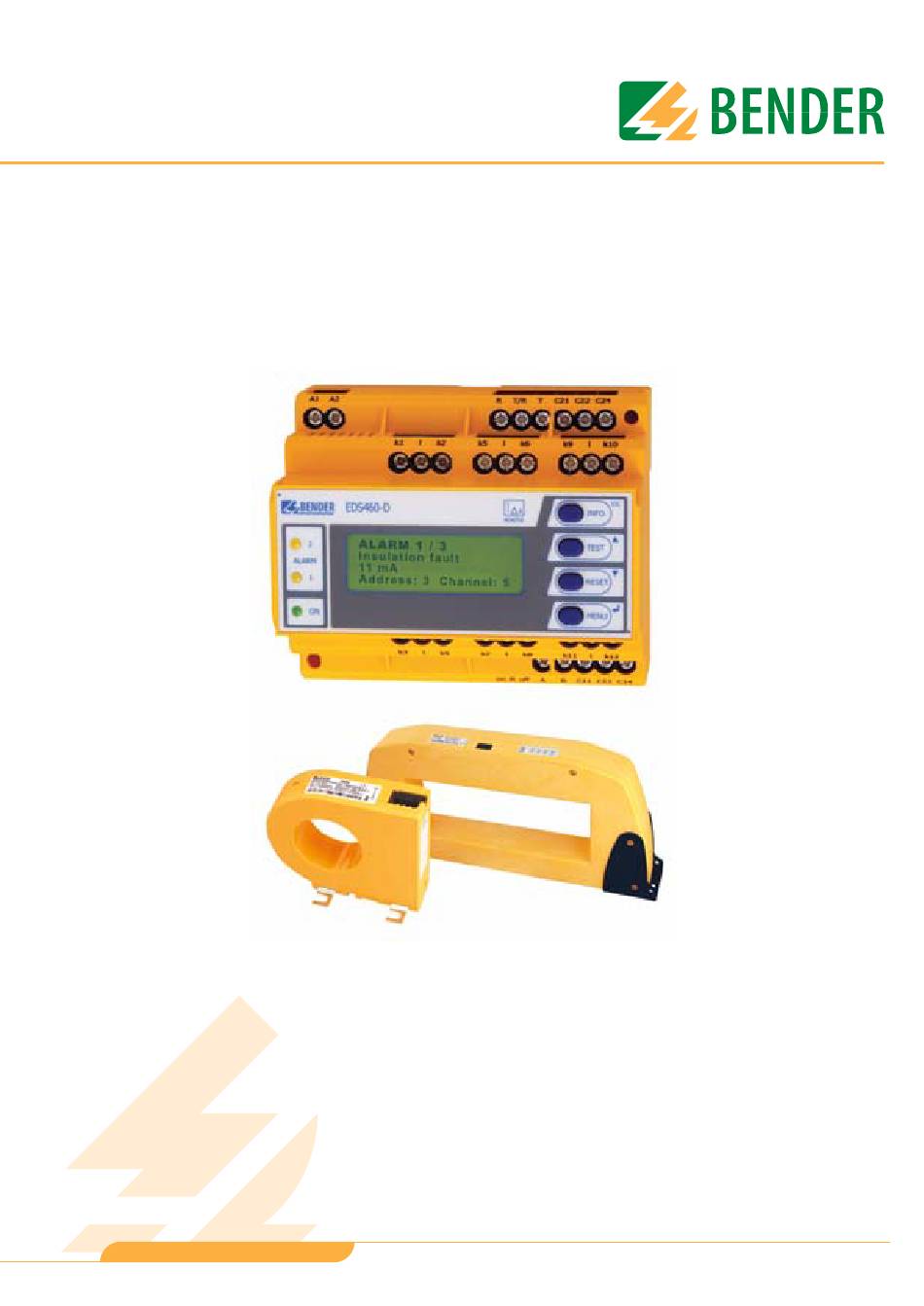

Operating Manual
EDS460-DG
Insulation fault evaluators
Software version: D303 V1.0 / D256 V2.2
Power in electrical safety
TGH1429en/10.2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDS460-DG and is the answer not in the manual?

Questions and answers

Related Manuals for Bender EDS460-DG

Summary of Contents for Bender EDS460-DG

  • Page 1 Operating Manual EDS460-DG Insulation fault evaluators Software version: D303 V1.0 / D256 V2.2 Power in electrical safety TGH1429en/10.2008...
  • Page 2 Dipl.-Ing. W. Bender GmbH & Co.KG Londorfer Str. 65 • 35305 Grünberg • Germany Postfach 1161 • 35301 Grünberg • Germany Tel.: +49 (0)6401-807-0 Fax: +49 (0)6401-807-259 E-Mail: info@bender-de.com Web: http://www.bender-de.com © Dipl.-Ing. W. Bender GmbH & Co.KG All rights reserved.

  • Page 3: Table Of Contents

    3.2.4 Requirements for reliable insulation fault location ......18 4. Installation and connection ................. 21 Unpacking ......................21 Fuses, max. voltage, cable lengths ............21 Notes on mounting ..................22 4.3.1 Dimension diagram EDS460-DG .............. 22 Connection ...................... 23 4.4.1 Wiring diagram EDS460-DG ..............23 TGH1429en/10.2008...
  • Page 4 6.2.4 Resetting saved alarm messages (RESET) ..........35 6.2.5 Displaying standard information ............. 36 Operation and setting of the EDS460-DG ..........36 6.3.1 Opening the main menu ................36 6.3.2 Menu overview diagram ................38 6.3.3 Main menu functions ................... 39 The main menu ....................
  • Page 5 7.4.4 Display "peak" ....................60 7.4.5 External alarm ....................60 8. Data ........................61 Standards ......................61 Certifications ....................61 Technical data EDS460-DG ................ 62 Response sensitivity characteristics ............65 8.4.1 EDS460-DG characteristics ................. 67 Ordering information .................. 69 TGH1429en/10.2008...
  • Page 6 Table of Contents TGH1429en/10.2008...

  • Page 7: How To Use This Operating Manual Effectively

    E-Mail: info@bender-service.com • www.bender-de.com This manual has been compiled with great care. Nevertheless, errors and omissions cannot be entirely excluded. The BENDER companies do not accept any liability for injuries to persons or material damage result- ing from errors or omissions in this manual.
  • Page 8 How to use this operating manual effectively This symbol indicates an immediate risk to life and limb. Failure to observe these warnings means that death, se- vere bodily injury or substantial material damage will oc- Danger ! cur if the corresponding precautions are not taken. This symbol indicates a potential risk to life and limb.

  • Page 9: Safety Information

    Up to 12 measuring current transformers can be connected to one EDS460-DG. Up to 90 EDS460-DG evaluators can be connected via a BMS bus (RS-485 interface with BMS protocol), thereby up to 1080 measuring channels (sub-circuits) can be monitored. The scanning time for all channels is approximately 4…10 s.

  • Page 10: Skilled Persons

    However, the use of such devices may introduce risks to the life and limb of the user or third parties and/or result in damage to BENDER equipment or other property.

  • Page 11: Delivery Conditions, Guarantee, Warranty And Liability

    Reference plates must always be clearly legible. Replace damaged or illegible signs immediately. 2.4 Delivery conditions, guarantee, warranty and liability The conditions of sale and delivery set out by BENDER shall apply. Con- ditions of sale and delivery can be obtained from BENDER in printed or electronic format.
  • Page 12 Safety information TGH1429en/10.2008...

  • Page 13: System Description

    (IT systems) that a first fault is to be eliminated with the shortest practicable delay. EDS systems al- low fast localisation of insulation faults. 3.1.3 System versions Insulation fault evaluators EDS460-DG-1 and EDS460-DG-2 differ in their supply voltage. 3.1.4 System features Universal system concept;...

  • Page 14: Function Of The Eds System

    System description 3.2 Function of the EDS system When an insulation fault is detected by the insulation monitoring device in the IT system, the insulation fault location process will be started. On the occurrence of a first insulation fault, a fault current essentially determined by the system leakage capacitances flows in the IT system.

  • Page 15: Block Diagram Eds System

    System description 3.2.1 Block diagram EDS system IT-System L1(L+) L2(L-) W... IRDH575/ EDS... PGH... Key: EDS... Insulation fault evaluator PGH... Insulation fault test device IRDH575 A-ISOMETER® IRDH575 with integrated test current generator Current source IT system Measuring current transformers Electrical load Insulation fault Protective conductor resp.

  • Page 16: Test Cycle

    System description 3.2.2 Test cycle The duration of a test current pulse cycle is 6 seconds. The IRDH575 or PGH... alternatively sends positive or negative test current pulses. The test cycle of the IRDH575 or PGH... is shown in different switch posi- tions (1,2,3) in the block diagram below, ("Block diagram EDS system"...

  • Page 17: Currents In The Eds System

    System description 3.2.3 Currents in the EDS system In addition to the block diagram on page 15, the path of the residual currents and the test current is shown in the diagram below: W... IT-System I(d), I(ds) EDS... IRDH575/ PGH... R F-N R F-V C E-V...

  • Page 18: Requirements For Reliable Insulation Fault Location

    System description The following residual currents flow through the measuring current transformer of the EDS...: the test current I(ds) caused by the insulation fault R residual currents I(d) flowing through the system leakage capacitances and R E-V, E-N, transient leakage currents caused by switching and control activities in the system, Low-frequency leakage currents generated by the use of converters.
  • Page 19 System description Fault curve Safe insulation fault location is only possible in the grey-shaded area. A measuring channel where insulation fault location is not possible is marked with "peak" in the ""Alarm/meas. values" menu. Example: A residual current of 0.4 A / 20 Hz (marked with a point (•) in the diagram) would be outside the permissible range.
  • Page 20 System description TGH1429en/10.2008...

  • Page 21: Installation And Connection

    Check all parts supplied for any evidence of damage in transit. Equip- ment damaged in transit must not be used. If a device has sustained damage, please contact BENDER. Details of who to contact are indi- cated on the delivery documents.

  • Page 22: Notes On Mounting

    Mount the measuring current transformers in accordance with the notes in the "Transformer installation" technical information. When connect- ing the measuring current transformers, it is essential that you observe the maximum cable lengths. 4.3.1 Dimension diagram EDS460-DG Dimensions in mm TGH1429en/10.2008...

  • Page 23: Connection

    Installation and connection 4.4 Connection 4.4.1 Wiring diagram EDS460-DG EDS460-D TGH1429en/10.2008...
  • Page 24 Installation and connection Legend to wiring diagram A1, A2 Supply voltage U (see ordering information), 6 A fuse recommended; two-pole fuses should be used on IT systems. k1, l … Connection of measuring current transformers 1…12. k12, l A, B BMS bus (RS-485 interface with BMS protocol) R, R/T External RESET button (N/O contact)*...

  • Page 25: Connection Of W

    4.4.2 Connection of W…, WR…, WS…series measuring current transformers EDS460 The terminals 1 and 2 as well as the terminals 3 and 4 are bridged internally. The connections k and l at the EDS460-DG must not be in- terchanged. TGH1429en/10.2008...

  • Page 26: Connection Example Eds Standard System With Ftc470Xet

    PE conductors or shields of shielded conductors through the measuring current transformer! Commercial measuring current transformers are not suitable for EDS460-DG and must not be used. Only if these notes are observed will you obtain a true measurement result.
  • Page 27 Installation and connection TGH1429en/10.2008...
  • Page 28 Installation and connection TGH1429en/10.2008...

  • Page 29: Commissioning

    Commissioning 5. Commissioning Note on opening the transparent front panel cover: Take hold of the cover at the bottom edge and swivel it upwards. The cover can also be removed completely. Once the adjustments have been completed, the front panel cover must be refitted. 5.1 Before switching on 1.
  • Page 30 Switching on 1. Connect the supply voltage of all devices connected to the BMS bus. Initially, the "ON" LED flashes on the EDS460-DG and the EDS460-D graphic display shows the (BENDER) welcome screen. The "ON" LED then lights up permanently.

  • Page 31: Operation

    Operation 6. Operation 6.1 Operating and display elements EDS460-DG EDS460-D Alarm LED 1 lights up in the event of the following types of device errors: - when the residual current is exceeded > 2 A (RCM function) - when there is a loss of power or short circuit in a measuring cur- rent transformer circuit (this function can be deactivated).

  • Page 32: Working In Operating Mode

    6.2 Working in operating mode 6.2.1 Standard display In operating mode, the EDS460-DG waits for insulation fault location to begin. The schematic representation shows that no alarm message exist on all of the 12 channels ( 1 2 3 4 5 6 7 8 9 10 11 12 6.2.2...
  • Page 33 Currently measured mean value of the residual current. Line 4: BMS bus address of the EDS460-DG and measuring channel on which the alarm has occurred. Press the "INFO" key to display the schematic representation for this alarm message. Channels where an alarm exists are marked with the symbol.

  • Page 34: Carrying Out A Test

    A test serves to check the device function (hardware components) of the EDS. A test can be called in the following ways: press the "TEST" button on the front panel of the EDS460-DG, press an external test button connected to the EDS460-DG, send a TEST command via the BMS bus, call up the "TEST"...

  • Page 35: Resetting Saved Alarm Messages (Reset)

    Press the "ESC" key to exit the display of the current alarm message. A reset is carried out by: pressing the "RESET" button on the front panel of the EDS460-DG, pressing an external reset button connected to the EDS460-DG, sending a reset command via the BMS bus.

  • Page 36: Displaying Standard Information

    Displaying standard information Press the "INFO" key. You will now see information relating to the de- vice and software on the EDS460-DG display. Press the " " arrow key several times to display all the information. Please have this information to hand if you should need to contact us for assistance by telephone.
  • Page 37 Settings can be password protected. When an attempt is made to change settings, the password entry screen ap- pears automatically: Enter password: 0 0 0 For details refer to see "Settings menu 9: password" on page 52. If you can't remember your password, contact the BENDER Service. TGH1429en/10.2008...

  • Page 38: Menu Overview Diagram

    Operation 6.3.2 Menu overview diagram Exit 1.Alarm/meas.values Exit 1.General 2.History 2.Channel 3.Relay 4.History 5.Language 6.Interface 3.Settings 7.Alarm addresses 8.Clock 9.Password 10.Factory setting 11.Service Exit Exit 1.TEST 4.Control 2.RESET 5.External devices 3.Test communication 6.Info TGH1429en/10.2008...

  • Page 39: Main Menu Functions

    Displays the minimum and maximum I(ds) measured value, with address and channel. 3.Settings Carry out settings for EDS460-DG 4.Control This menu offers various control options, such as TEST, RESET, etc. 5.External Settings on devices externally connected to devices the BMS bus (e.g.

  • Page 40: The Main Menu

    Operation 6.4 The main menu 6.4.1 Menu 1: Alarm/meas. values EDS460-DG displays the following for each measuring channel: Alarm status, test current I(ds), residual current I(d). I(ds) I(d) 1. 6mA 120mA <20mA Channel disabled Column 1: Channel number 1…12 Column 2:...
  • Page 41 Operation Residual current The residual current flowing through the measuring current transformer is continually measured and displayed. If the residual current exceeds 100 mA, it will be indicated on the dis- play. If the residual current exceeds 2 A, an alarm message will be signalled. Once the residual current reaches values of this magnitude, reliable insulation fault location becomes impossible.

  • Page 42: Menu 2: History

    Operation 6.4.2 Menu 2: History The non-volatile history memory saves up to 300 data records (alarms, device errors). If the history memory is full, the oldest entry will be de- leted in the event of an alarm to create space for the new entry. For de- tails about erasing the entire history memory refer to chapter "6.4.3.4 Settings menu 4: History".

  • Page 43: Menu 3: Settings

    4.History Erasing the history memory 5.Language Select the language for menu and alarm texts. 6.Interface Set the BMS bus address of the EDS460-DG. 7.Alarm- Setting of bus addresses for devices whose addresses alarm messages are to be displayed on this EDS460-DG.

  • Page 44: Settings Menu 1: General

    3.Rated frequency Set the rated frequency of the system being monitored. The EDS460-DG must always be set to "DC" (factory setting). This must be set correctly, otherwise the EDS460-DG will not be able to evaluate the test current pulse accurately. TGH1429en/10.2008...

  • Page 45: Settings Menu 2: Channel

    Operation 4.Type of system Select the type of distribution system for the system being monitored. The EDS460-DG must always be set to "DC" (factory setting). 6.4.3.2 Settings menu 2: Channel You make the measuring channel settings in this menu (either individ- ually or for all channels simultaneously).
  • Page 46 Please also heed the characteristics for a reliable response on page 65. 2.CT Set the transformer type. W/WR Bender standard measuring current transformers, circu- lar and rectangular W... and WR... series designs. Split-core type WS... series measuring current transform- ers.
  • Page 47 If the status that triggered the alarm is no longer present, the EDS460- DG terminates its alarm once the release delay has expired. Configurable values: 0s, 6s, 12s, 18s, 24s The alarm is terminated when the EDS460-DG has not recognised an insulation fault for the duration of a test current pulse.

  • Page 48: Settings Menu 3: Relays

    Operation 6.Converters Converters are a major source of interference for the monitored system. Channel is optimised for converters. Insulation fault lo- cation takes longer in this subcircuit. Channel is not optimised for converters. Insulation faults cannot be reliably detected in circuits containing con- verters.
  • Page 49 Operation Relay: 1...2 both relays: Exit 1.Relay mode:N/O-T 2.Alarm: 1.Relay mode Set the relay mode of operation: N/O-T N/O operation. Relay switches in the event of an alarm or a test. N/C-T N/C operation. Relay switches in the event of an alarm or a test.

  • Page 50: Settings Menu 4: History

    DG. Set the addresses of devices whose messages are to be displayed to "on". Addresses set to "on" are monitored for presence on the BMS bus; if a device cannot be found on the bus, a corresponding message will appear. The EDS460-DG own address is automatically set to "on". Exit 1.Address: 2.Address:...

  • Page 51: Settings Menu 8: Clock

    Operation 6.4.3.8 Settings menu 8: Clock Set the date format, date, time, and summer time changeover. Set the time and date on the BMS bus master. All slaves adopt this setting. The setting is synchronised every hour. The "Clock" menu setting remains stored for approx. 2 h after power supply failure.

  • Page 52: Settings Menu 9: Password

    6.4.3.10 Settings menu 10: Factory settings Resets every setting to its factory setting. Factory settings are given in parentheses "( )*" in the technical data. 6.4.3.11 Settings menu 11: Service This menu is intended for Bender service employees only. TGH1429en/10.2008...

  • Page 53: Menu 4: Control

    Control menu 3: Test communication This function enables you to test communication between the EDS460- DG and other BMS equipment. To do this, the EDS460-DG sends an alarm message via the BMS bus until the "Test communication" function is exited. A connected evaluation device (IRDH575, MK800, MK2430, FTC470...) must process this alarm.
  • Page 54 Operation Example: Alarm "insulation fault" on channel 1. 1. Select channel 1. Channel disabled Exit 1.Chan.: 2. Once the"↵" key is pressed, the alarm is transmitted on the BMS bus. This is represented by the alarm indication Insulation fault Exit 1.Chan.: TGH1429en/10.2008...

  • Page 55: Menu 5: External Devices

    Menu 5: External devices This menu can be used for setting and operating external devices con- nected via the BMS bus to this EDS460-DG. In this way, settings at other EDS460-DG can be carried out, for example. The menu items of the external devices available via this function are displayed on the EDS460-DG.

  • Page 56: Menu 6: Info

    EDS... If you otherwise try to program it, the er- ror message "Own address" will appear. When the device has been recognised, the EDS460-DG reads the current settings of the connected device. The address and the device type will be displayed in the first line.

  • Page 57: Tests And Service

    We recommend that the test function is called on each connected EDS460-DG at regular intervals. You call a test by: pressing the "TEST" button on the front panel of the EDS460-DG, pressing an external test button or calling the "TEST" function in the Control menu.

  • Page 58: Trouble Shooting

    Tests and service 7.4 Trouble shooting 7.4.1 Display device error An "error code" is displayed if a fault occurs. Display in the event of a fault: Device error: xx (xx = Error code). Please have this device information to hand if you should need to con- tact us for assistance by telephone.

  • Page 59: Device Error Display (Channel-Related)

    Alarm Line 3: Error code (refer to "Display device error" on page 58) Line 4: BMS bus address of the EDS460-DG and measuring channel on which the alarm has occurred. Possible causes: Incorrect basic programming of the EDS460-DG. Wrong p.c.b. assembly at four consecutive channels.

  • Page 60: Ct Connection Fault Display (Channel-Related)

    Measuring current transformer defective Power supply cable interrupted Power supply cable short-circuited 7.4.4 Display "peak" System-related faults may impair the insulation fault location process. The EDS460-DG marks the faulty channels in the "Alarm/meas.values" menu with "peak". I(ds) I(d) <100mA peak 7.4.5...

  • Page 61: Data

    Data 8. Data 8.1 Standards Observe the applicable national and international standards. The EDS460-DG type range complies with the standards: IEC 60364-4-41:2005, modified: Selection and erection of electrical equipment; Protection against electric shock; DIN VDE 0100-410; VDE 0100-410:2007-06 Errichten von Niederspannungsanlagen - Teil 4-41: Schutzmaßnahmen - Schutz gegen elektrischen Schlag;...

  • Page 62: Technical Data Eds460-Dg

    Data 8.3 Technical data EDS460-DG Insulation coordination acc. to IEC 60664-1 / IEC 60664-3 Rated insulation voltage............................AC 250 V Rated impulse voltage/pollution degree ......................4 kV / III Protective separation (reinforced insulation) between: ................(A1, A2) - (K1, L…K12, R / RT / T, AB) - (11, 12, 14) - (21, 22, 24) Voltage test according to IEC 61010-1 ......................
  • Page 63 Data Inputs/outputs Test/reset button ..........................internal / external Cable length for external test/reset button ....................0…10 m Interface Interface/protocol............................RS-485 / BMS Baud rate ................................ 9.6 kbit / s Cable length ..............................0…1200 m Recommended cable (shielded, shield connected to PE on one side) min. J-Y(St)Y ........2 x 0.8 Terminating resistor ................120 Ω...
  • Page 64 Data Classification of mechanical conditions acc. to IEC 60721 Stationary use (IEC 60721-3-3)..........................3M4 Transport (IEC 60721-3-2) ............................2M2 Storage (IEC 60721-3-1) ............................1M3 Connection Connection type ..........................screw-type terminals Connection properties: rigid / flexible......................0.2…2.5 mm2 / AWG 24…14 Flexible with ferrules....................0.2…1.5 mm2 (AWG 24…16) Stripping length ..............................

  • Page 65: Response Sensitivity Characteristics

    Data 8.4 Response sensitivity characteristics The type of distribution system, system voltage, leakage capacitance and test current all affect the EDS system's response sensitivity. The value of the test current can be set at the IRDH575 in- sulation monitoring device and at the PGH... insulation fault test device.
  • Page 66 3. The characteristics provided indicate the EDS system's response sensi- tivity when the EDS460-DG response value is set to 2 mA, 5 mA and 10 mA. Values above the relevant curve cannot be detected. 4. Select the upper characteristic for a EDS460-DG response value of 2 mA (factory setting).

  • Page 67: Eds460-Dg Characteristics

    Data 8.4.1 EDS460-DG characteristics DC 24 V 10mA Ce [µF] DC 60 V 10mA Ce [µF] TGH1429en/10.2008...
  • Page 68 Data DC 110 V 10mA Ce [µF] DC 230 V 10mA Ce [µF] TGH1429en/10.2008...

  • Page 69: Ordering Information

    Data 8.5 Ordering information Insulation fault evaluators Supply voltage Response Type Art. No. value EDS460-DG-1 DC 16…94 V 2…10 mA B 9108 0018 AC 42…460 Hz 16…72 V EDS460-DG-2 AC/DC 70…276 V, 2…10 mA B 9108 0019 AC 42…460 Hz EDS460-DGW-1 DC 16…94 V...
  • Page 70 Data Accessories Supply voltage Type Art. No. DI-1PSM (RS-485 repeater) AC/DC 24 V B 9501 2044 ± 20 % DI-2USB (interface converter Supply from USB B 9501 2045 RS-485/USB) with USB cable interface AN471 (power supply unit for DI-1 AC 230 V 50/ B 924 189 or DI-2) 60 Hz/ AC, DC 20...
  • Page 71 Data Measuring current transformer for EDS460-DG Bender measuring current transformers Inside Type of Type Art. No. diameter/mm construction circular-type B 9808 0003 circular-type B 9808 0010 circular-type B 9808 0018 W120 circular-type B 9808 0028 W210 circular-type B 9808 0034...
  • Page 72 Data Alternative measuring current transformers from the Bender range Inside Type of Type Art. No. diameter/mm construction W10/600 circular-type B 911 761 W0-S20 circular-type B 911 787 W1-S35 circular-type B 911 731 W2-S70 circular-type B 911 732 W3-S105 circular-type B 911 733...
  • Page 73 INDEX ALARM 32 Factory settings 52 Alarm status 33 Fault memory 44 fuses 21 Bender Service 52 bus address 50 History memory 42 Cables, shielded 26 Intended use 9 Checking the device function 34 Inverter 48 Commissioning 29 connection example 26...
  • Page 74 password 52 peak 60 Personnel 10 rated frequency 44 Relay mode of operation 49 RESET 35 Residual current 40 Response delay 46 Service 57 standard information 36 Standards 57 Summer time 51 switching on 29 System components 7 Test communication 53 test function 57 Time 51 Typical 13...
  • Page 76 Dipl.-Ing. W. Bender GmbH & Co.KG Londorfer Str. 65 • 35305 Grünberg • Germany Postfach 1161 • 35301 Grünberg • Germany Tel.: +49 (0)6401-807-0 Fax: +49 (0)6401-807-259 E-Mail: info@bender-de.com Web: http://www.bender-de.com...
