Mobile Computer
Quick Start Guide

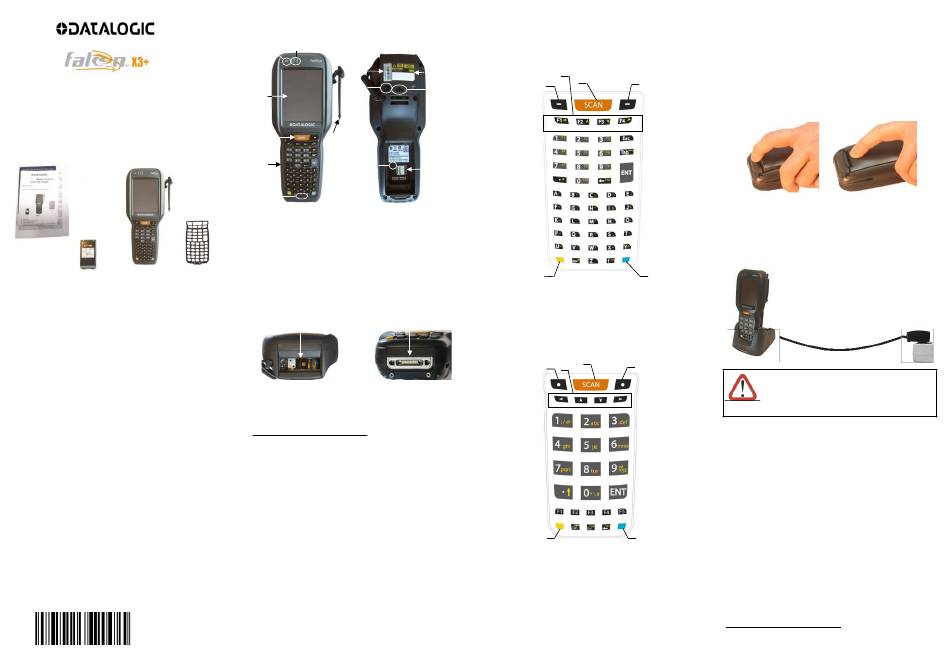

THE PACKAGE

The Falcon X3+ package includes the following items:
D
A
C
B
A) Falcon X3+ mobile computer
B) Rechargeable battery pack
C) Blank keypad overlay
D) Quick Start Guide/ Wavelink Avalanche Insert/ End User
License Agreement (EULA) Sheet
822001702
(Rev. A)
Nov. 2017

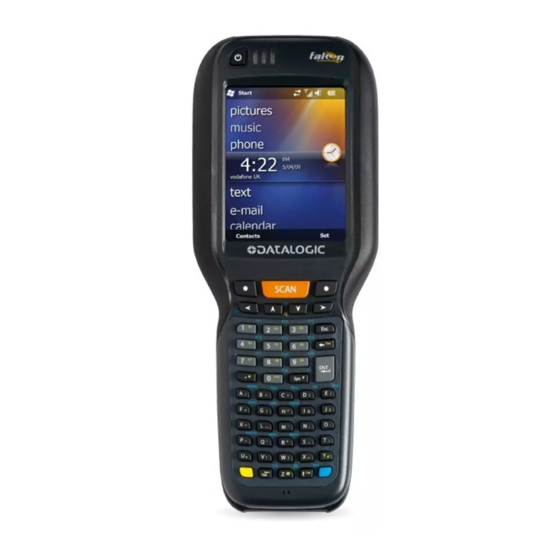

THE TERMINAL
A
B
I
H
J
K
C
D
G
E
L
M
F
H) Laser Safety Label
A) LEDs
I)
Product Label
B)
ON/OFF Power Key
J)
Color Camera/Flash (optional)
C) VGA Color Display*
K) Loudspeaker
D) Front Scan Key
L)
Reset Key (under battery)
E) Keypad
M) MicroSD Card Slot (under
F)
Microphone
battery)
G) Stylus
O
N
N) Data capture window*
O) Handylink connector
(host/client)
*
Remove protective film cover before use
KEYPADS
Alphanumeric Keyboard
1
2
5
5
3
4
Numeric Keyboard
2
5
5
1
4
3
1.

Navigation Keys

-
Up/down arrows with Yellow Modifier adjusts volume
-
Up/down arrows with Blue Modifier adjusts backlight
-
Left with Blue Modifier locks keyboard
-
Right with Blue Modifier acts as MS Start key
2.

Scan Key

3.

Yellow Modifier

4.

Blue Modifier

5.

Soft Keys

GETTING STARTED

Insert the Battery

Insert the battery with the contacts down and the latch toward the
device main connector. Then press the battery into the device
until the battery latch engages automatically:

Charge the Battery

With Single Slot Dock
Do not use the Falcon X3+ until batteries are
charged for minimum 4 hours.
CAUTION
The power supply for the Single Slot Dock is included in the Single Slot
Dock box (P/N 94A150057)
