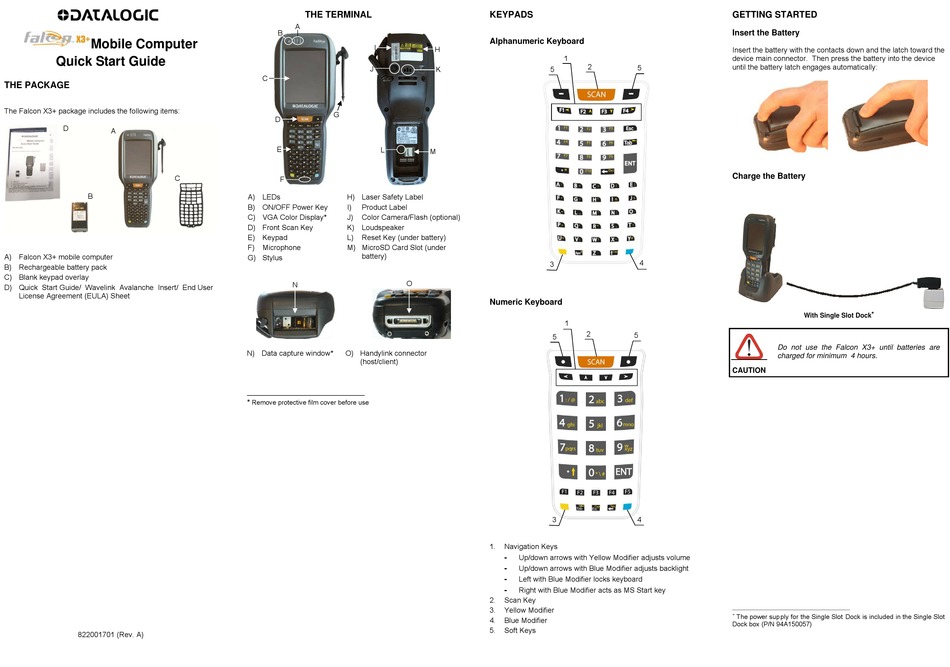

Datalogic falcon x3+ Quick Start Manual

Mobile Computer

Quick Start Guide
THE PACKAGE
The Falcon X3+ package includes the following items:
D
A
C
B
A) Falcon X3+ mobile computer
B) Rechargeable battery pack
C) Blank keypad overlay
D) Quick Start Guide/ Wavelink Avalanche Insert/ End User
License Agreement (EULA) Sheet
822001701 (Rev. A)
THE TERMINAL
A
B
I
J
C
G
D
E
L
F
A) LEDs H) Laser Safety Label
B) ON/OFF Power Key I) Product Label
C) VGA Color Display* J) Color Camera/Flash (optional)
D) Front Scan Key K) Loudspeaker
E) Keypad L) Reset Key (under battery)
F) Microphone M) MicroSD Card Slot (under
battery)
G) Stylus
O
N
N) Data capture window* O) Handylink connector
(host/client)
*
Remove protective film cover before use
KEYPADS
Alphanumeric Keyboard
H
1
2
K 5
M
3
Numeric Keyboard
1
2
5
3
1. Navigation Keys
Up/down arrows with Yellow Modifier adjusts volume
-
Up/down arrows with Blue Modifier adjusts backlight
-
Left with Blue Modifier locks keyboard
-
Right with Blue Modifier acts as MS Start key
-
2. Scan Key
3. Yellow Modifier
4. Blue Modifier
5. Soft Keys
GETTING STARTED
Insert the Battery
Insert the battery with the contacts down and the latch toward the
device main connector. Then press the battery into the device
until the battery latch engages automatically:
5
Charge the Battery
4
With Single Slot Dock
5
Do not use the Falcon X3+ until batteries are
charged for minimum 4 hours.
CAUTION
4

The power supply for the Single Slot Dock is included in the Single Slot
Dock box (P/N 94A150057)

