RA2L1 Group
Evaluation Kit for RA2L1 Microcontroller Group
Renesas RA Family
RA2 Series
All information contained in these materials, including products and product specifications, represents
information on the product at the time of publication and is subject to change by Renesas Electronics
Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
through various means, including the Renesas Electronics Corp. website (http://www.renesas.com).
www.renesas.com
EK-RA2L1 v1
User's Manual
Rev. 1.00 Oct 2020
Advertisement
Table of Contents
Related Manuals for Renesas EK-RA2L1
Summary of Contents for Renesas EK-RA2L1
- Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
- Page 2 Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
- Page 3 Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
- Page 4 Renesas or its affiliates shall in no event be liable for any loss of profit, loss of data, loss of contract, loss of business, damage to reputation or goodwill, any economic loss, any reprogramming or recall costs (whether the foregoing losses are direct or indirect) nor shall Renesas or its affiliates be liable for any other direct or indirect special, incidental or consequential damages arising out of or in relation to the use of this EK-RA2L1, even if Renesas or its affiliates have been advised of the possibility of such damages.
-
Page 5: Table Of Contents
User’s Manual Renesas RA Family EK-RA2L1 v1 Contents Kit Overview ..........................4 Assumptions and Advisory Notes ......................6 Kit Contents ..........................7 Kit Ordering Information ......................7 Hardware Architecture and Default Configuration ..............8 Kit Architecture ............................8 System Block Diagram .......................... 10 Jumper Settings ............................. - Page 6 Figure 1. EK-RA2L1 Board Top Side ......................5 Figure 2. EK-RA2L1 Board Bottom Side ......................6 Figure 3. EK-RA2L1 Kit Contents ........................7 Figure 4. EK-RA2L1 Board Functional Area Definitions .................. 9 Figure 5. EK-RA2L1 Board Block Diagram ....................10 Figure 6. Copper Jumpers ..........................11 Figure 7.
- Page 7 Table 17. EK-RA2L1 Board LED Functions ....................23 Table 18. EK-RA2L1 Board Switches ......................24 Table 19. EK-RA2L1 Internal Regulator Settings ..................28 Table 20. EK-RA2L1 Board Design Package Contents ................30 R20UT4827EG0100 Rev 1.00 Page 3 of 31 Oct.29.20...
-
Page 8: Kit Overview
EK-RA2L1 v1 – User's Manual 1. Kit Overview The EK-RA2L1, an Evaluation Kit for RA2L1 MCU Group, enables users to seamlessly evaluate the features of the RA2L1 MCU group and develop embedded systems applications using Flexible Software Package (FSP) and e studio IDE. -

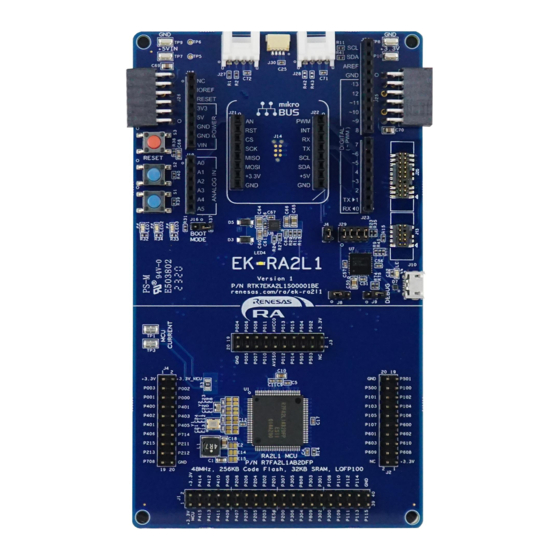

Page 9: Figure 1. Ek-Ra2L1 Board Top Side
Renesas RA Family EK-RA2L1 v1 – User's Manual Figure 1. EK-RA2L1 Board Top Side R20UT4827EG0100 Rev 1.00 Page 5 of 31 Oct.29.20... -
Page 10: Assumptions And Advisory Notes
1. It is assumed that the user has basic understanding of microcontrollers and embedded systems hardware. 2. It is recommended that the user refers to the EK-RA2L1 Quick Start Guide to get acquainted with the kit and the Quick Start example project that EK-RA2L1 board comes pre-programmed with. -
Page 11: Kit Contents
• EK-RA2L1 v1 kit orderable part number: RTK7EKA2L1S00001BE Note: The underlined character in the orderable part number represents the kit version. • EK-RA2L1 board dimensions: 80 mm (width) x 140 mm (length) R20UT4827EG0100 Rev 1.00 Page 7 of 31 Oct.29.20... -
Page 12: Hardware Architecture And Default Configuration
4. Hardware Architecture and Default Configuration 4.1 Kit Architecture The EK-RA2L1 board is designed with two of three sections or areas to help shorten the learning curve of the users and maximize the design and knowledge reuse among similar kits. The contents of these three areas are conceptually standardized among similar kits. -
Page 13: Figure 4. Ek-Ra2L1 Board Functional Area Definitions
Renesas RA Family EK-RA2L1 v1 – User's Manual Figure 4. EK-RA2L1 Board Functional Area Definitions R20UT4827EG0100 Rev 1.00 Page 9 of 31 Oct.29.20... -
Page 14: System Block Diagram
10 pin and 20 pin Analogue User /IRQ/IO Buttons EK-RA2L1 MCU Board Reset Switch System Control & Ecosystem Access Native Pin Access Voltage/ Power Current Meas. Probes Jumper Figure 5. EK-RA2L1 Board Block Diagram R20UT4827EG0100 Rev 1.00 Page 10 of 31 Oct.29.20... -
Page 15: Jumper Settings
4.3.2 Traditional Pin Header Jumpers These jumpers are traditional small pitch jumpers that require an external shunt to open/close them. The traditional pin jumpers on the EK-RA2L1 board are 2 mm pitch headers and require compatible 2 mm shunt jumpers. - Page 16 Renesas RA Family EK-RA2L1 v1 – User's Manual Location Circuit Group Default Open/Closed Function MCU Boot Mode Open Configures the MCU for normal boot mode MCU Power Closed Connects AVCC0 to +3.3 V MCU Power Closed Connects AVSS0 to GND...
-
Page 17: System Control And Ecosystem Access Area
5.1 Power The EK-RA2L1 kit is designed for +5 V operation. An on-board Low Dropout Regulator (LDO) is used to convert the 5 V supply to a 3.3 V supply. The 3.3 V supply is used to power the RA MCU and other peripheral features. -
Page 18: Power Supply Options
5.1.3 Power-up Behavior When powered, the white LED near the center of the board (the “dash” in the EK-RA2L1 name) will light up. For more details on initial power up behavior, see the EK-RA2L1 Quick Start Guide. -
Page 19: Debug And Trace
J10-5 Ground A yellow indicator, LED5, shows the visual status of the debug interface. When the EK-RA2L1 board is powered on, and LED5 is blinking, it indicates that the S124 Debug MCU is not connected to a programming host. When LED5 is on solid, it indicates that the S124 Debug MCU is connected to a programming interface. -
Page 20: Debug In
Debug Connector at J13 supports JTAG and SWD. Either of these connectors may be used for external debug of the target RA MCU. To configure the EK-RA2L1 board to use the Debug In mode, configure the jumpers using the following table. -
Page 21: Table 7. Jtag/Swd/Trace Connector
Renesas RA Family EK-RA2L1 v1 – User's Manual Table 7. JTAG/SWD/TRACE Connector JTAG Connector EK-RA2L1 JTAG Pin Name SWD Pin Name ETM Pin Name Signal/Bus J20-1 Vtref Vtref Vtref +3V3 J20-2 SWDIO P108/SWDIO J20-3 J20-4 SWCLK P300/SWCLK J20-5 J20-6 J20-7 N.C. -
Page 22: Debug Out
EK-RA2L1 v1 – User's Manual 5.2.3 Debug Out The EK-RA2L1 board can be configured to use the S124 Debug MCU to debug target RA MCU on an external board. A yellow indicator, LED5, shows the visual status of the debug interface. When the EK-RA2L1 board is powered on, and LED5 is blinking, this indicates that the S124 Debug MCU is not connected to a programming host. -
Page 23: Sparkfun Qwiic Connector
Renesas RA Family EK-RA2L1 v1 – User's Manual Figure 10. Seeed Grove and Qwiic Connectors ® ® 5.3.2 SparkFun Qwiic Connector A Qwiic connector is provided at J30. The Main MCU acts as a two-wire serial master, and a connected module acts as a two-wire serial slave. -
Page 24: Figure 11. Pmod 1
Table 13. The trace cut jumpers are shown in Figure Note: Exercise caution while modifying power source trace jumpers, E16 and E17. Permanent damage to the EK-RA2L1 board and/or connected modules may result. Figure 12. Pmod 1 Trace Cut Jumpers R20UT4827EG0100 Rev 1.00... -
Page 25: Arduino™ Connector
Renesas RA Family EK-RA2L1 v1 – User's Manual 5.3.3.2 Pmod 2 A 12-pin Pmod type-2A connector is provided at J25, Pmod 2. The RA MCU acts as the SPI master, and the connected module acts as an SPI slave device. This interface may additionally be re-configured in firmware as several other Pmod types. -
Page 26: Figure 14. Arduino Uno Connectors
Renesas RA Family EK-RA2L1 v1 – User's Manual Arduino Compatible Connector EK-RA2L1 Description Signal/Bus J18-8 J19-1 P000 (AN000) J19-2 P001 (AN001) J19-3 P002 (AN002) J19-4 P003 (AN003) J19-5 P012 (AN007) J19-6 P014 (AN009) J23-1 D0 / RXD P410 (RXD0) J23-2... -
Page 27: Mikroelektronika™ Mikrobus Connector
Figure 15. mikroBUS Connection 5.4 Miscellaneous 5.4.1 User and Power LEDs 5 LEDs are provided on the EK-RA2L1 board. Behavior of the LEDs on the EK-RA2L1 board is described in the following table. Table 17. EK-RA2L1 Board LED Functions Designator Color... -
Page 28: User And Reset Switches
Figure 16. User LEDs Figure 17. Power LED 5.4.2 User and Reset Switches Three miniature, momentary, mechanical push-button type SMT switches are mounted on the EK-RA2L1 board. Pressing the Reset switch (S3) generates a reset signal to restart the RA MCU. -
Page 29: Mcu Boot Mode
Renesas RA Family EK-RA2L1 v1 – User's Manual Figure 18. Reset and User Switches 5.4.3 MCU Boot Mode A two-pin header (J16) is provided to select the Boot mode (P201) of the RA MCU. For normal operation, or Single-Chip mode, leave J16 open. To enter SCI Boot mode or USB Boot mode, place a jumper on J16. -
Page 30: Mcu Native Pin Access Area
6.1 Breakout Pin Headers The EK-RA2L1 board pin headers, J1, J2, J3 and J4, provide access to all RA MCU interface signals, and to voltages for all RA MCU power ports. Each header pin is labeled with the voltage or port connected to that pin. -
Page 31: Mcu Current Measurement
Included in the Native Pin Access area is a current measurement resistor and test points to measure the MCU core power current. The EK-RA2L1 board provides a precision 5 mΩ resistor (Vishay, part number WSLP08055L000FEA18) for current measurement of the main 3.3 V MCU power. Measure the voltage drop across these resistors and use Ohm’s Law to calculate the current. -
Page 32: Table 19. Ek-Ra2L1 Internal Regulator Settings
Renesas RA Family EK-RA2L1 v1 – User's Manual Table 19. EK-RA2L1 Internal Regulator Settings RA MCU Internal Voltage Jumper setting for Equivalent Circuit Regulator E2, E14, E15 Default: All Open Linear Regulator (LDO) Switching Regulator (DCDC) All Closed R20UT4827EG0100 Rev 1.00 Page 28 of 31 Oct.29.20... -
Page 33: Certifications
Renesas RA Family EK-RA2L1 v1 – User's Manual 7. Certifications The EK-RA2L1 v1 kit meets the following certifications/standards. See page 3 of this user’s manual for the disclaimer and precautions. 7.1 EMC/EMI Standards • FCC Notice (Class A) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 34: Design And Manufacturing Information
Renesas RA Family EK-RA2L1 v1 – User's Manual 8. Design and Manufacturing Information The design and manufacturing information for the EK-RA2L1 v1 kit is available in the “EK-RA2L1v1 Design Package” available on renesas.com/ra/ek-ra2l1. • Design package file name: ek-ra2l1-v1-designpackage.zip •... -
Page 35: Revision History
Renesas RA Family EK-RA2L1 v1 – User's Manual Revision History Description Rev. Date Page Summary 1.00 Oct.29.20 — Initial release R20UT4827EG0100 Rev 1.00 Page 31 of 31 Oct.29.20... - Page 36 EK-RA2L1 v1 – User’s Manual Publication Date: Oct.29.20 Published by: Renesas Electronics Corporation...
- Page 37 EK-RA2L1 v1 – User’s Manual R20UT4827EG0100...
