INSTEON 2475F Quick Start Manual

Light
Set Button
Status LED*

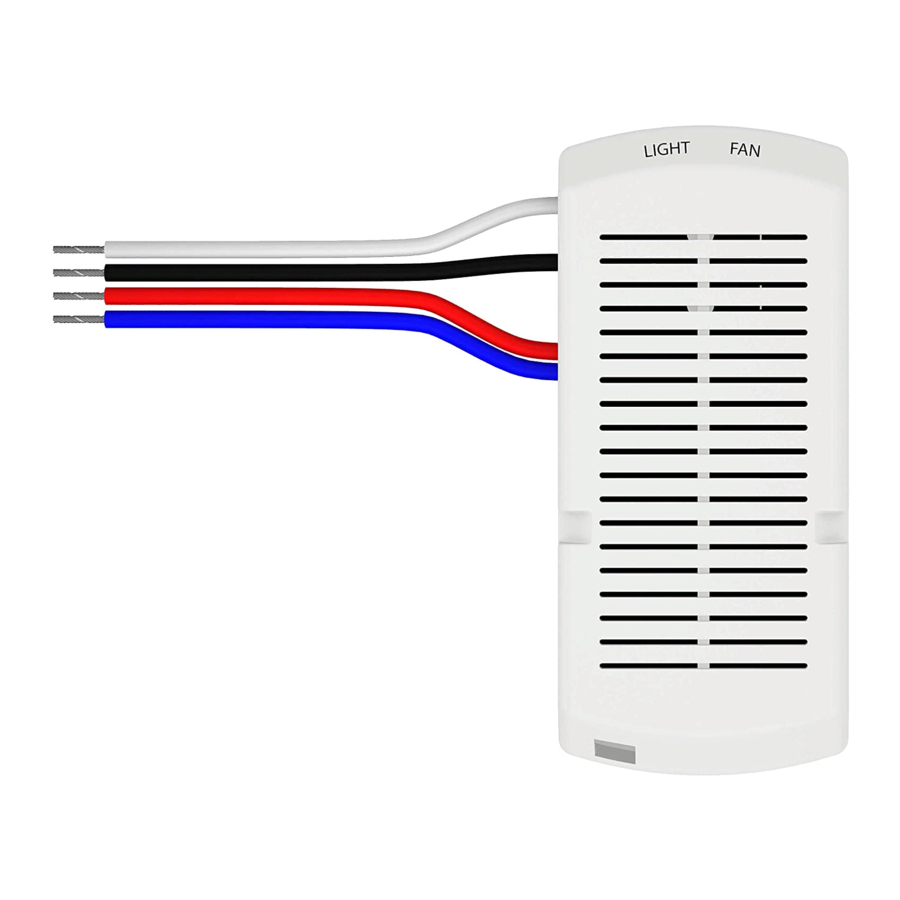

Neutral (white)
Lights (blue)
Fan (red)
Line (black)
Status LEDs
On Blinking
Fan/Light On Linking
Fan/Light Off Unlinking
1
Installation
A. Write down the Ceiling Fan Controller's Insteon ID for future reference
B. Using your fan's pull chains, turn light on and set fan to highest speed. Note: All
fan and light controls will be conducted through Ceiling Fan Controller once installed.
C. Turn off the circuit breaker supplying power to the fan
D. Remove the ceiling fan from the electrical box. Refer to the fan's installation guide
for help if necessary.
E. Disconnect the wires from the ceiling fan (and light, if applicable)
F. Connect Ceiling Fan Controller per the wiring diagram. If your fan does not have a
light, cap the blue wire with the included wire nut.
G. Ensure all connections are secure with no exposed copper
H. Turn the breaker back on. The Ceiling Fan Controller's Fan LED will be red and
Light LED will be green (connected lights will turn on). Tapping Light Set Button will
turn lights off.
I. Wait to re-install your fan until after linking the Ceiling Fan Controller
Manual Linking
Follow the manual linking process described in the product manual
for the controller from which you plan to use with this device.
Referencing the table below, tap the Ceiling Fan Controller's Fan Set
button until beeper and Fan LED indicate the desired fan speed.
For safety, the fan motor cannot be
engaged by tapping the set button
Single-beep
1st tap Low
2nd tap Medium Double-beep
High Fast double-beep
3rd tap
Off None
4th tap
For more information about manually linking and unlinking, see the
user manual online at www.insteon.com/get-started-2475f
Fan
Set Button
Status LED
Neutral
Ceiling Fan
Blinks green slow
Blinks green med
This device complies with FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
Blinks green fast
any interference, including interference that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorise aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
Red
l'utilisateur de l'appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est susceptible d'en
compromettre le fonctionnement.
See Owner's Manual for warranty information. Protected under U.S. and foreign patents (see
www.insteon.com/patents). ©2018 Insteon

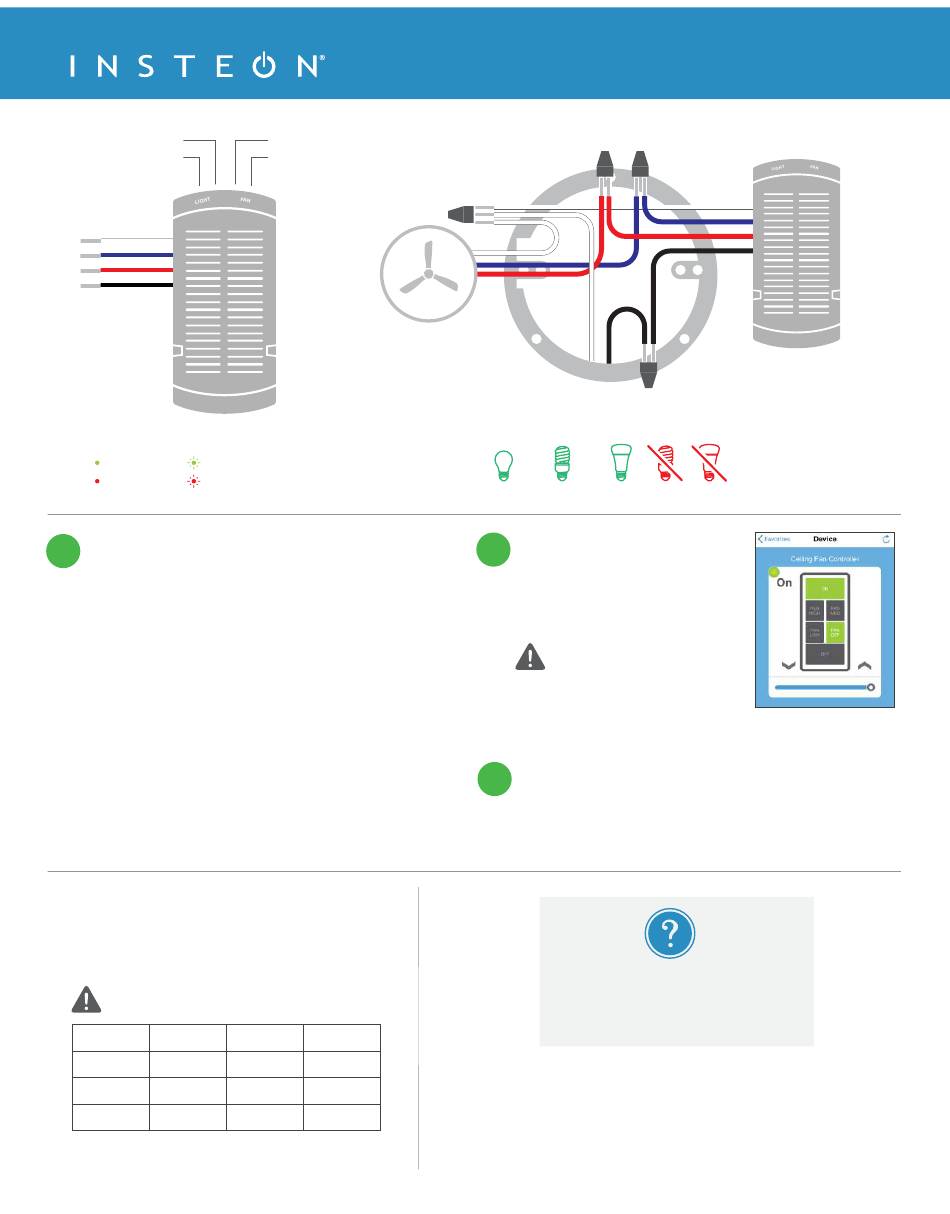

Wiring Diagram
Fan Light*
Line
*If your ceiling fan has lights attached, make sure they are
dimmable. Quality of dimming varies by type and brand.
Incandescent Dimmable Dimmable CFL
& Halogen CFL LED
2
Add to Insteon Hub
From within the Insteon for Hub app, select Add
a Device, and follow the instructions to add a
wired-in device. Tip: It doesn't matter which set
button you use when adding it to the Insteon for
Hub app. Use the 'add by ID' option if necessary.
Wait to test fan speed controls until
after re-installing your fan.
If you do not own the Insteon Hub (2245-xxx), ISY-99,
or other Insteon compatible central controller, see the
Manual Linking section below. We strongly recommend
a central controller for managing Insteon devices,
especially for devices not easily accessible after
installation such as the Ceiling Fan Controller.
3
Re-install Fan
A. Carefully remount cowling with Ceiling Fan Controller inside (or in electrical box)
B. Use the included cable tie to secure Ceiling Fan Controller to the fan's bracket
Support and Resources
For the complete Owner's Manual and more, visit
insteon.com/get-started-2475f
Insteon Ceiling Fan Controller
Quick Start Guide
LED
Example of the control screen in the
Insteon for Hub app. Requires
Insteon Hub, sold separately.
