INSTEON 2477SA1 Quick Start Manual

Quick-Start Guide
®

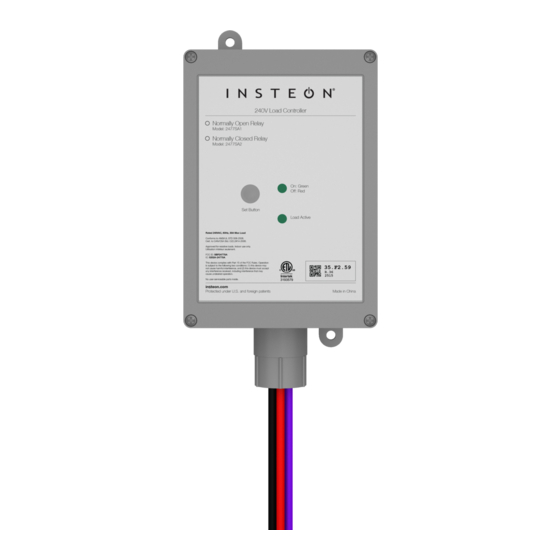

INSTEON 240V 30 AMP Load Controller
(Dual-Band)
Models: 2477SA1 – Normally Open Relay
2477SA2 – Normally Closed Relay

Introduction

Remotely control your appliances that run on voltages between 120
and 240 volts, up to 30 Amps. Weatherproof case allows for use
with appliances located outdoors.

Preparation

Because this product involves high voltage levels, it is
recommended that installation be performed only by a qualified
electrician or by a homeowner who is extremely knowledgeable and
familiar with electrical circuitry. Please take an extra level of
precaution when installing this product. If you have any questions
regarding installation, we suggest consulting an electrician.

Tools Needed

•
Screwdriver (to remove cover of junction box)
•
Wire cutter / stripper
•
Various tools to mount 240V Load Controller to a wall

Installation

1) At the circuit breaker or fuse panel, disable the circuit supplying
power to the electrical junction box that is wired to the appliance
you wish to control with 240V Load Controller
2) Remove the cover of the junction box and disconnect the two
supply lines coming from the circuit breaker, ensuring that you
have ½" bare and clean copper wire on the ends.
3) See Figure 1 on the next page to properly connect 240V Load
Controller to your appliance and the junction box. Connect the
240V Load Controller wires to the wires of the same color on
your appliance and junction box wherever possible.
4) Ensure that all wire connectors are firmly attached and that
there is not exposed copper except for the GROUND wire
5) Enable power to the junction box from the circuit breaker or fuse
panel
6) Test that 240V Load Controller is working properly by pressing
the Set button to toggle your appliance off, and then on

Using 240V Load Controller

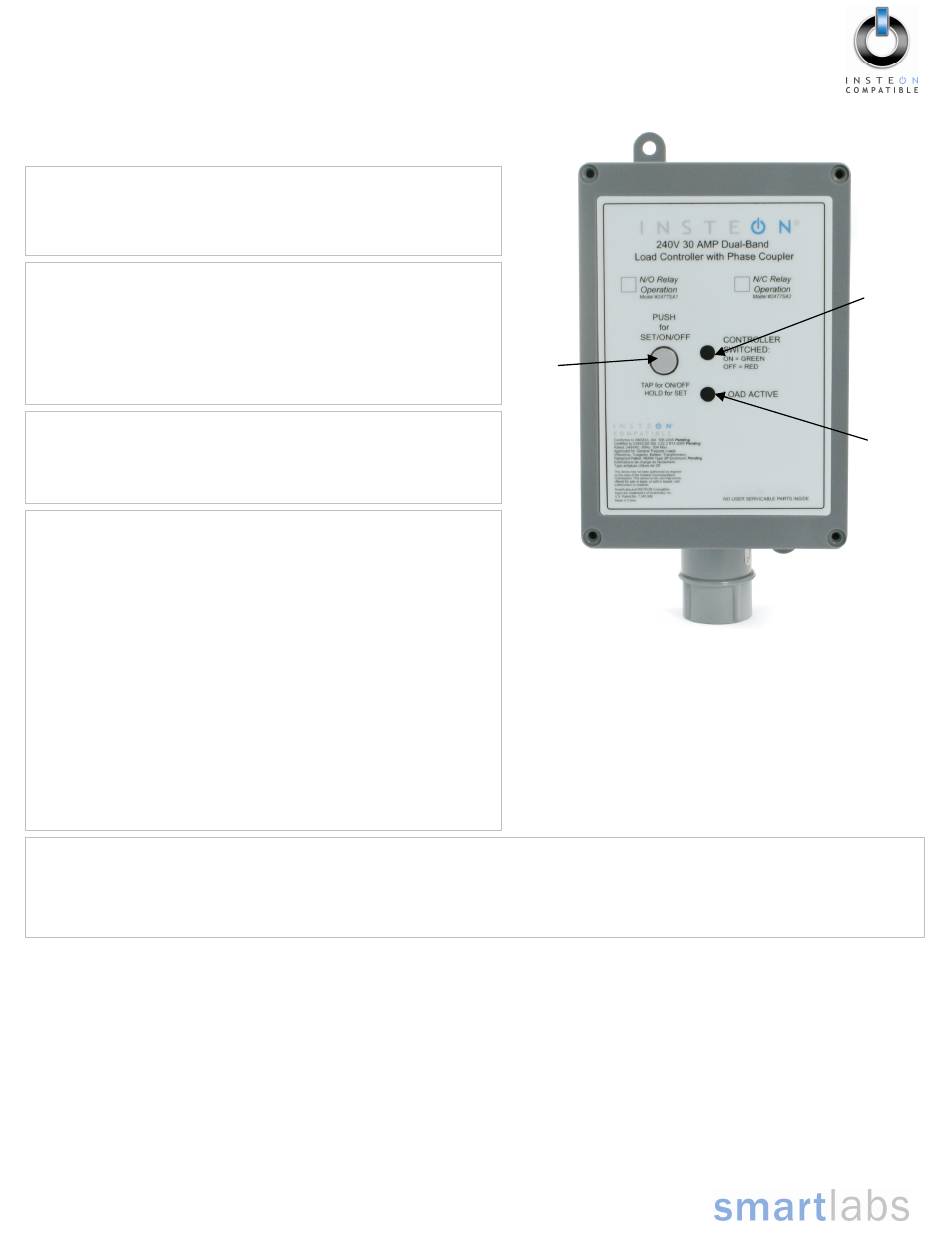

Use the Set button on 240V Load Controller to toggle the attached load on and off
The Status LED will be solid green when the attached load is on and solid red when the load is off
The Load Active LED will be solid amber or green as long as the appliance is wired to 240V Load Controller
SmartLabs Limited Warranty – SmartLabs warrants to original consumer of this product for a period of 2 years from date of purchase, this product will be
Page 1 of 2
free from defects in material & workmanship & will perform in substantial conformity with its Owner's Manual. Warranty shall not apply to defects caused by
Rev. 02-02-2010
misuse or neglect.
U.S. Patent No. 7,345,998, International patents pending © Copyright 2010
SmartLabs, 16542 Millikan Ave., Irvine, CA 92606, 1-800-SMARTHOME (800-762-7846)
Set
button
Status
LED
Load
Active
LED
