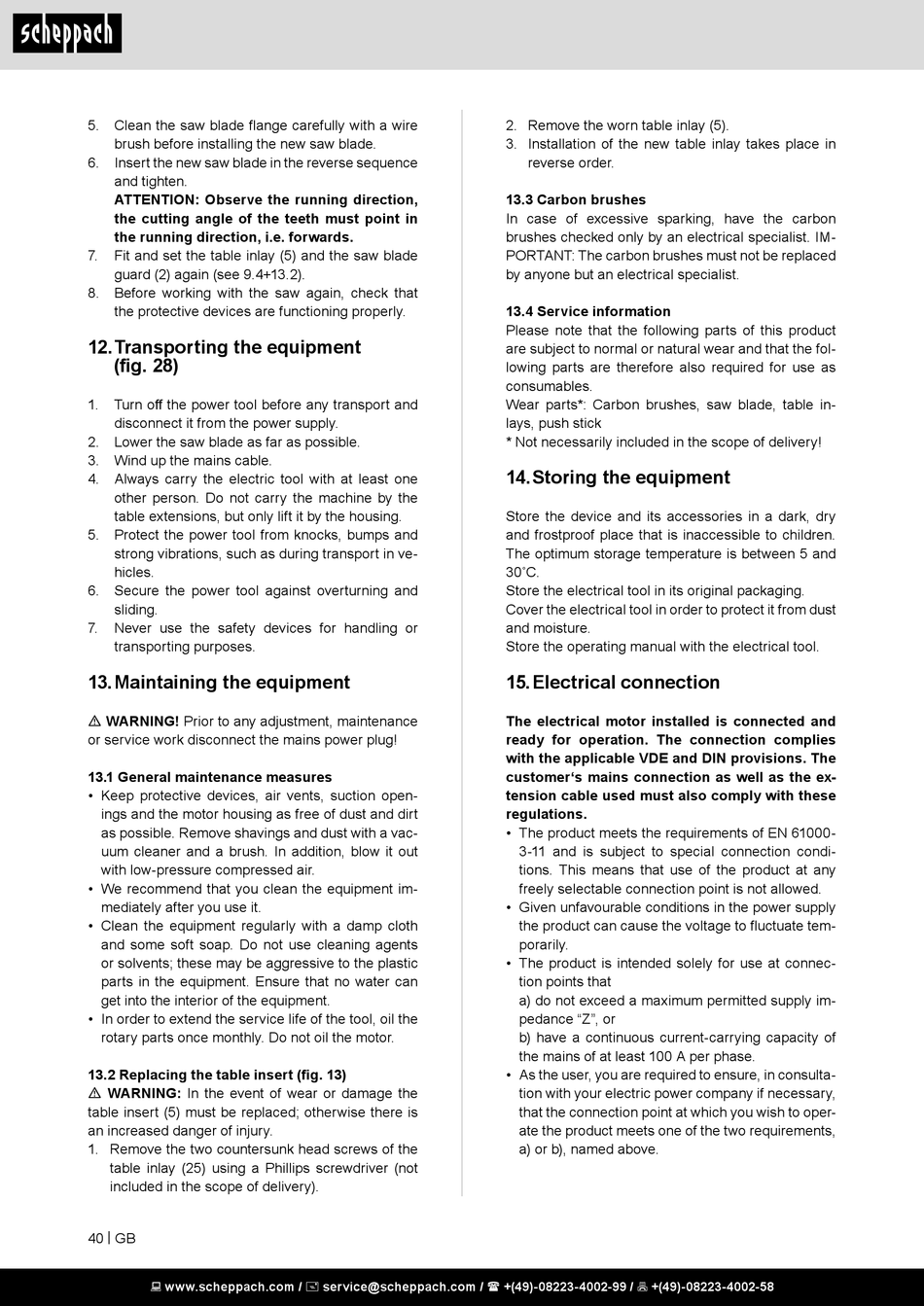

5. Clean the saw blade flange carefully with a wire
brush before installing the new saw blade.
6. Insert the new saw blade in the reverse sequence
and tighten.
ATTENTION: Observe the running direction,
the cutting angle of the teeth must point in
the running direction, i.e. forwards.
7. Fit and set the table inlay (5) and the saw blade
guard (2) again (see 9.4+13.2).
8. Before working with the saw again, check that
the protective devices are functioning properly.

12. Transporting the equipment

(fig. 28)
1. Turn off the power tool before any transport and
disconnect it from the power supply.
2. Lower the saw blade as far as possible.
3. Wind up the mains cable.
4. Always carry the electric tool with at least one
other person. Do not carry the machine by the
table extensions, but only lift it by the housing.
5. Protect the power tool from knocks, bumps and
strong vibrations, such as during transport in ve-
hicles.
6. Secure the power tool against overturning and
sliding.
7. Never use the safety devices for handling or
transporting purposes.

13. Maintaining the equipment

m WARNING! Prior to any adjustment, maintenance
or service work disconnect the mains power plug!
13.1 General maintenance measures
• Keep protective devices, air vents, suction open-
ings and the motor housing as free of dust and dirt
as possible. Remove shavings and dust with a vac-
uum cleaner and a brush. In addition, blow it out
with low-pressure compressed air.
• We recommend that you clean the equipment im-
mediately after you use it.
• Clean the equipment regularly with a damp cloth
and some soft soap. Do not use cleaning agents
or solvents; these may be aggressive to the plastic
parts in the equipment. Ensure that no water can
get into the interior of the equipment.
• In order to extend the service life of the tool, oil the
rotary parts once monthly. Do not oil the motor.
13.2 Replacing the table insert (fig. 13)
m WARNING: In the event of wear or damage the
table insert (5) must be replaced; otherwise there is
an increased danger of injury.
1. Remove the two countersunk head screws of the
table inlay (25) using a Phillips screwdriver (not
included in the scope of delivery).
40 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
2. Remove the worn table inlay (5).
3. Installation of the new table inlay takes place in
reverse order.
13.3 Carbon brushes
In case of excessive sparking, have the carbon
brushes checked only by an electrical specialist. IM-
PORTANT: The carbon brushes must not be replaced
by anyone but an electrical specialist.
13.4 Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: Carbon brushes, saw blade, table in-
lays, push stick
* Not necessarily included in the scope of delivery!

14. Storing the equipment

Store the device and its accessories in a dark, dry
and frostproof place that is inaccessible to children.
The optimum storage temperature is between 5 and
30˚C.
Store the electrical tool in its original packaging.
Cover the electrical tool in order to protect it from dust
and moisture.
Store the operating manual with the electrical tool.

15. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable VDE and DIN provisions. The
customer's mains connection as well as the ex-
tension cable used must also comply with these
regulations.
• The product meets the requirements of EN 61000-
3-11 and is subject to special connection condi-
tions. This means that use of the product at any
freely selectable connection point is not allowed.
• Given unfavourable conditions in the power supply
the product can cause the voltage to fluctuate tem-
porarily.
• The product is intended solely for use at connec-
tion points that
a) do not exceed a maximum permitted supply im-
pedance "Z", or
b) have a continuous current-carrying capacity of
the mains of at least 100 A per phase.
• As the user, you are required to ensure, in consulta-
tion with your electric power company if necessary,
that the connection point at which you wish to oper-
ate the product meets one of the two requirements,
a) or b), named above.
