- Page 1 TV7400 2.4GHz Amplified Wireless TV Headset User Guide Keep this user guide for future reference. Always retain your proof of purchase in case of warranty service.
-
Page 2: Table Of Contents
Controlling the Tone (Bass & Treble)................14 Technical specifications ....................15 Troubleshooting ....................... 15 Cleaning & Maintenance ....................16 Need Help? If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support. Australia 02 4574 8888 www.oricom.com.au Mon-Fri 8am –... -
Page 3: Features
The Oricom Wireless TV Headset is an audio amplification system specifically designed for people with hearing difficulties. The Oricom Wireless TV Headset can be used with all kinds of audio systems for free listening enjoyment. This product can be used on all audio devices with a 3.5mm/optical audio output, including all TV's,... - Page 4 Features Need help? If you have any problems setting up or using your TV7400 TV headset, please find answers to Frequently Asked Questions, available at oricom.com.au WARNINGS: • Never attempt to recharge conventional dry cells. • Batteries (battery pack or batteries installed) shall not be exposed to excessive heat from sources including: sunshine, fire or similar. • Never use another type of battery or non-rechargeable batteries to replace the rechargeable batteries supplied. • When the headsets are not in use, move the switch to the OFF position to avoid damaging the batteries.
-
Page 5: Getting To Know Your Product Components

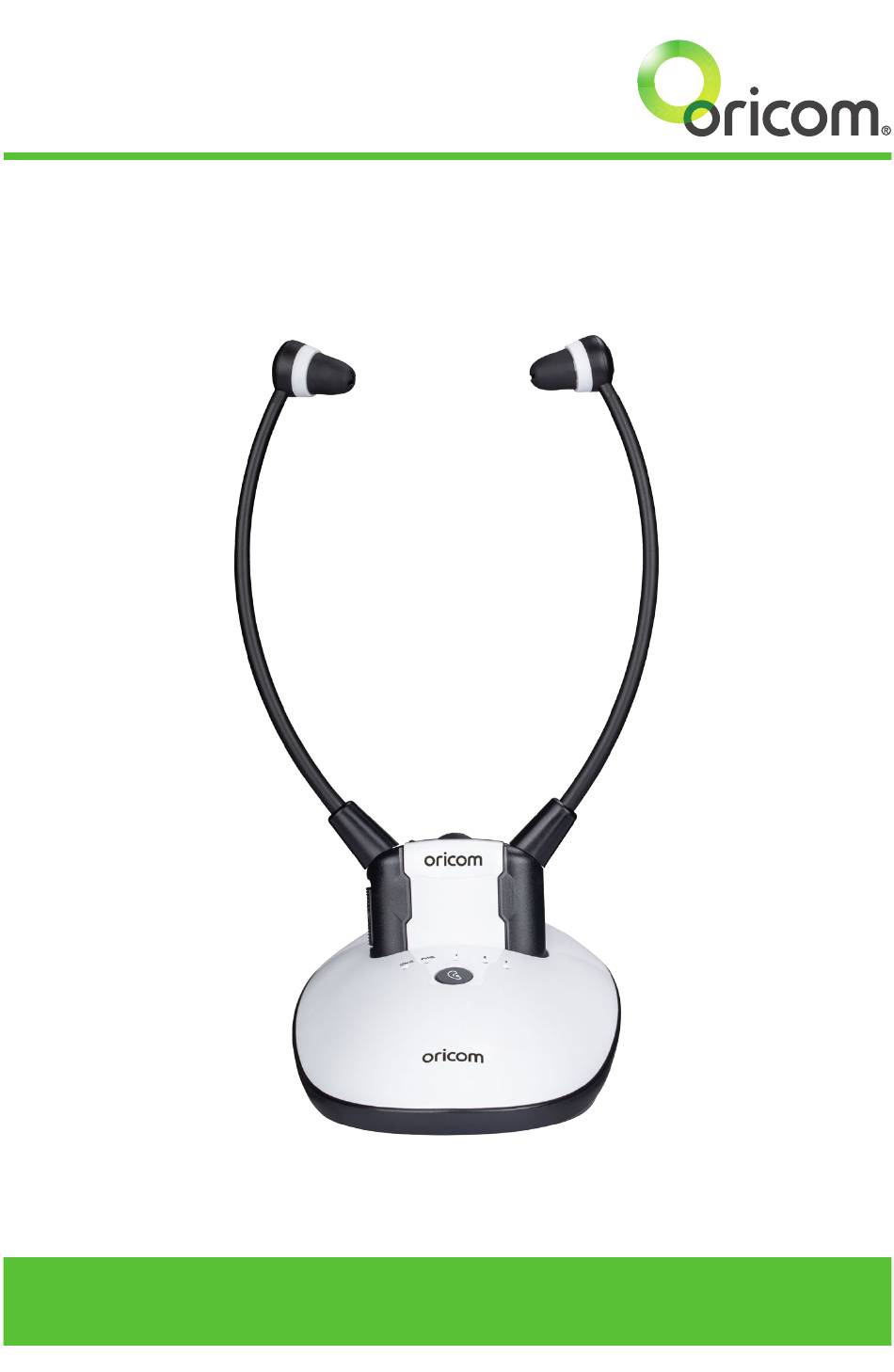

Getting to know your product Getting to know your product Components (A1) TV Headset Receiver (A2) Charging Cradle and Transmitter (A3) Power Supply (A4) Optical Cable (A5) Audio Cable (both ends with 3.5mm stereo plug) (A6) RCA Adapter Cable *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 6: Function Identification: Headset Receiver
Function identification: headset receiver Function identification: Headset receiver FRONT REAR (B1) Earbuds (B2) Volume Control (B3) Power/Signal LED Indicator (B4) Mute Button for Verbal Communications (B5) Microphone (B6) Pair Button for Frequency Channel (B7) Sound Balance Control (B8) Power On/Off Switch (B9) Battery Contact *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 7: Function Identification: Transmitter
(C5) LED Indicator (Yellow): Bass enhanced + Treble enhanced (C6) LED Indicator (Yellow): Treble enhanced (C7) LED Indicator (Yellow): Bass enhanced (C8) Audio In (C9) Input Selection (Audio IN or Optical IN) (C10) Optical In Socket (C11) DC In Socket Please note that only one input (either audio input or optical input) must be connected. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 8: Charging The Battery
This unit should be operated with built-in rechargeable battery only. When disposing of the unit, always comply with applicable laws relating to the disposal of battery. Please place them in a proper disposal container to ensure that they are eliminated safely and in an environmentally friendly way. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 9: Installation Transmitter
NOTE: 6.3mm and SCART Adapters not included. (D1) C onnect the Power Supply to the DC IN Socket located on the Charge Cradle rear panel. (D2) C onnect the Power Supply to mains power outlet (100-240V~50/60Hz). (D3) C onnect one end of the Optical Cable to the rear panel of the Charge Cradle. (D4) C onnect the other end of the Optical Cable to your Audio Source (e.g. TV or audio device) with Optical Output. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 10: Headset Receiver
Note: When using Optical Cable connection, please set your audio devices/systems to PCM Two-Channel (support 32KHZ—196KHZ). For details, please refer to the operation manual of your audio devices/systems for the proper setting. Headset receiver Make sure the built-in Battery inside the Headset Receiver is fully charged for the first use. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 11: Operation Initial Operation
Routine Operation S witch on the Audio Source (TV set or other audio device) that the Transmitter is connected to. The Power LED Indicator will glow continuously (see figure (3)). P ut the Ear Phone plug into the 3.5mm phone jack of TV Receiver. On the TV Receiver, switch ON the On/Off Switch (see figure (4)). The green Power LED Indicator will glow continuously. A djust the Volume to the desired sound level (see figure (5)), then fit the earbuds in your ears. NOTE: Make sure the volume on your Audio Source (TV set or other audio device) is turned up to at least half of its full volume to get good sound quality in your Earbuds. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 12: Improving Sound By Switching Channels
Audio Source is too weak for proper reception. However, if the Signal returns to an acceptable level, the Transmitter will automatically switch ON again. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 13: Adjusting The Sound Balance (Left-Right)
This will shut off the Audio Source and the Receiver will become an amplifier by activating the Microphone. To resume listening to your audio device, press the Mic button again. The microphone will be shut off and the audio will resume. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 14: Controlling The Tone (Bass & Treble)
Controlling the Tone (Bass & Treble) Controlling the Tone (Bass & Treble) When necessary, Treble or Bass in the Headset Receiver can be adjusted on the Transmitter by the Tone Clarity Button. Simply press the Tone Clarity Button to select Treble or Bass, and match to your level of hearing aid capability. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 15: Technical Specifications
ON and set to a channel that broadcasts an audio signal. • E nsure that the volume on the connected audio component is turned up to at least half its full volume. • T he connected audio/video equipment may not be in playback mode. Start playback on by the equipment. • Use the Volume Control on the Headset to turn up the volume. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... -
Page 16: Cleaning & Maintenance
Pairing: D isconnect the power adaptor of the transmitter to the electrical outlet. Turn ON the receiver. P ress and hold the MIC button for about 5 seconds, the green LED flash fast in the receiver, then plug in the power adaptor of the transmitter to socket. The receiver and the transmitter is then paired automatically, and the green LED on the receiver lights steadily. *Need some help? Call 02 4574 8888 or go to www.oricom.com.au... - Page 17 In the event of a minor failure, Oricom reserves the right to choose to repair or replace the product.
- Page 18 No change to the conditions of this Express Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury arising out of or in connection with a: 1.
- Page 19 Express Warranty (Australia) Please note that this Express Warranty excludes expenses incurred by you in returning any faulty product to us. You must arrange and pay any expenses incurred (including postage, delivery, freight, transportation or insurance of the product) to return the faulty product to us, however, we will arrange delivery of the repaired or replaced faulty product to you. Important Information Repair Notice Please be aware that the repair of your products may result in the loss of any user-generated data (such as stored telephone numbers, text messages and contact information). Please ensure that you have made a copy of any data saved on your product before sending for repair. Please also be aware that products presented for repair may be replaced by refurbished products or parts of the same type rather than being repaired.
- Page 20 Oricom Support - Australia For all product enquiries, troubleshooting or to discuss the range of Oricom products, feel free to contact Oricom or visit our website for answers to frequently asked questions. (02) 4574 8888 Monday - Friday 8am –...
