1. Product Overview

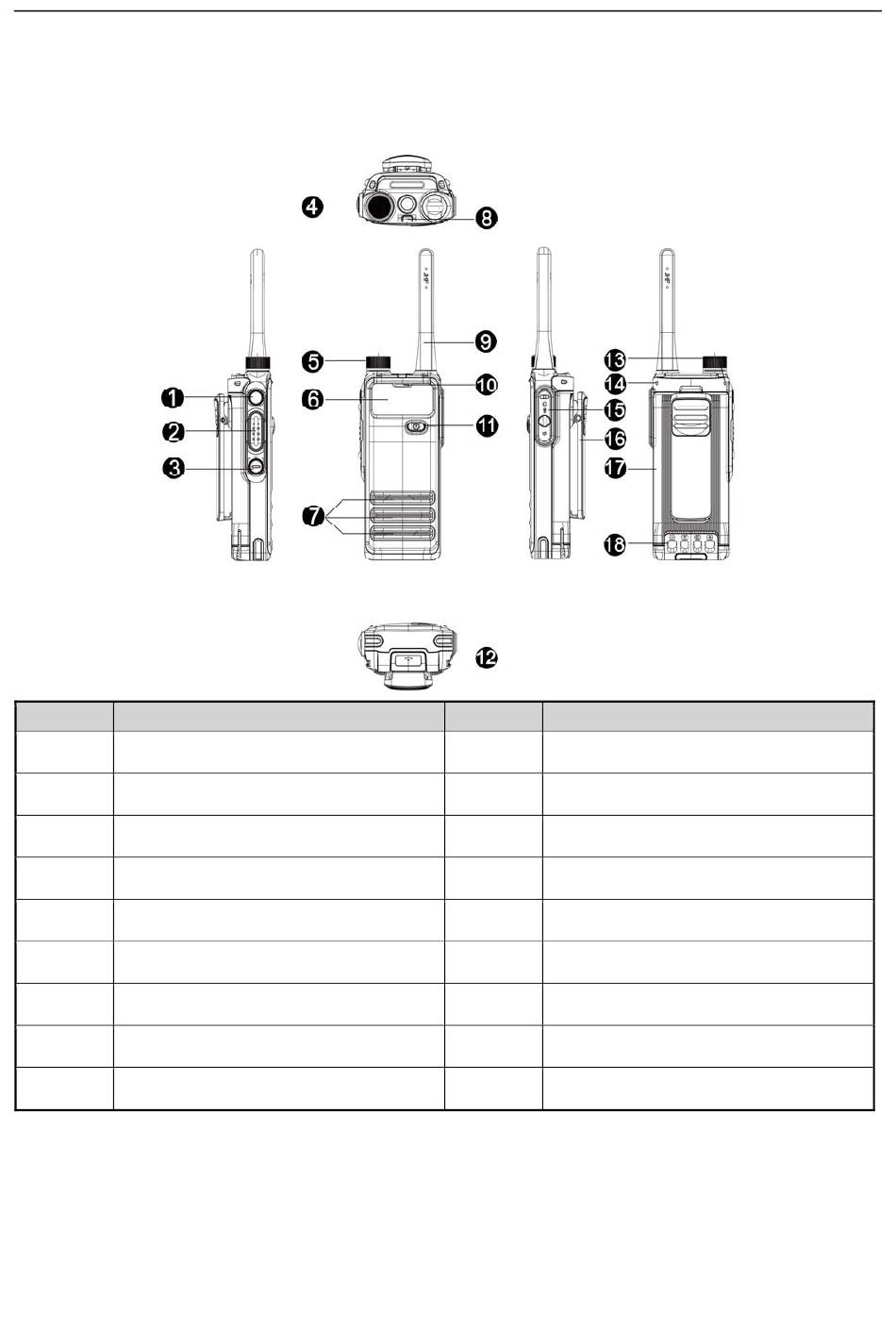

1.1 Product Layout
No.
1
Side Key 1 (SK1)
2
Push-to-Talk (PTT) Key
3
Side Key 2 (SK2)
4
Top Key (TK)
5
Smart Knob
6
OLED Display
7
Speaker
8
LED Indicator
9
Antenna
1.2 Programmable Keys
For enhanced convenience, you can request your dealer to program TK, SK1, and SK2 as shortcuts to radio features.
For details, consult your dealer.
Part Name
No.
10
Microphone
11
On-Off Key
12
Battery Latch
13
Strap Hole 1
14
Strap Hole 2
15
Accessory Interface
16
Belt Clip
17
Battery
18
Charging Piece
Part Name

Advertisement

Table of Contents
loading

Related Manuals for Hytera HP70X

Summary of Contents for Hytera HP70X

  • Page 1 1. Product Overview 1.1 Product Layout Part Name Part Name Side Key 1 (SK1) Microphone Push-to-Talk (PTT) Key On-Off Key Side Key 2 (SK2) Battery Latch Top Key (TK) Strap Hole 1 Smart Knob Strap Hole 2 OLED Display Accessory Interface Speaker Belt Clip LED Indicator...

  • Page 2: Basic Operations

    2. Basic Operations 2.1 Charging the Battery  Use the approved charger to charge the battery.  Read the Safety Information Booklet before charging.  The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by International Air Transport Association (IATA).

  • Page 3: Conventional Mode

     Press the preprogrammed Operation Mode Switch key.  If the Zone/Subgroup Switch Mode feature is enabled, you can switch the operation mode by switching the contact through the menu or the Smart knob.  Auto Switch  The Mode Automatic Switch feature allows the radio to automatically switch the operation mode, so as to guarantee the normal communication of the radios in no-signal coverage areas or when the system fails.

  • Page 4: Selecting A Subgroup

    2.5.2.2 Selecting a Subgroup A subgroup consists of multiple groups or private contacts. To select a subgroup, press the preprogrammed Subgroup Up or Subgroup Down key.

  • Page 5: Status Indications

    3. Status Indications 3.1 LCD Icons 3.2 LED Indications LED Indicator Radio Status Flashes green The radio is being turned on. Flashes green slowly The radio is standby in trunking mode. Glows green The radio is receiving. Glows red The radio is transmitting. The radio is establishing a call in trunking mode.

  • Page 6: Call Services

    4. Call Services When you are speaking during a call, keep the microphone about 2.5 cm to 5 cm away from your mouth. This ensures optimal voice quality on the receiving radio. In trunking mode, if the radio is not registered or attached, or an empty group is selected, you cannot initiate a call.
  • Page 7 4.1.3.2 Trunking Mode In trunking mode, a group call ends in any of the following cases:  The calling party hangs up.  The call duration exceeds the preset time.  The BS signal is lost.  A pre-emptive call or an emergency call occupies the channel. ...

  • Page 8: Call On Analog Channel

    4.1.6.2 Trunking Mode In trunking mode, a private call ends in any of the following cases:  The calling or called party hangs up.  The call duration exceeds the preset time.  The BS signal is lost.  A pre-emptive call or an emergency call occupies the channel. ...

  • Page 9: Emergency Call

    4.3 Emergency Call The Emergency feature allows you to seek help from your companion or the control center in case of emergency. You can initiate an emergency call with the highest priority even when your radio is transmitting or receiving. This feature is configured and enabled by your dealer.
  • Page 10 FCC/ISEDC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
