CP1000. This manual’s target audience is professional installers for Engine Distributors and OEMs of engine-driven machines. The engine manufacturer specific application information should be followed for any detailed or specific requirements. Cattron sales and technical support are available at www.cattron.com/contact to discuss specialized requirements or custom applications.

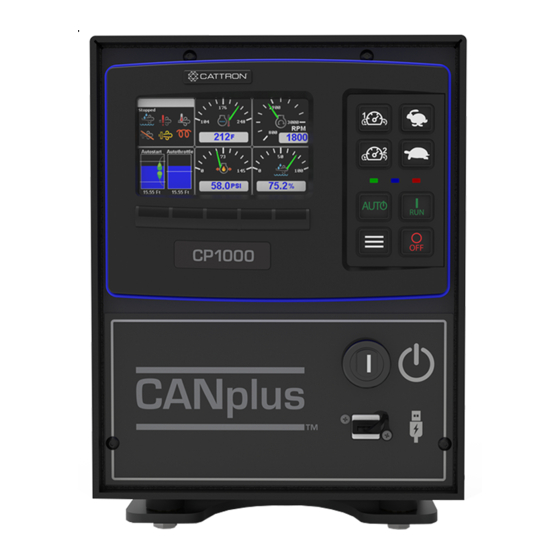

CANplus CP1000 Installation Manual Mechanical Mounting The CP1000 control panel is adaptable to a wide variety of applications. The included engine harness connector facilitates quick installation. The following is a list of installation guidelines: The panel mount shall be Easily accessible by the operator. Placed away from moving equipment.
CANplus CP1000 Installation Manual Connector Pinouts There are two connectors on the CP1000, as described in the following subsections. D21 to Engine Pinout This connector contains the typical connections required for electronically or mechanically governed engines. The following is the pinout: Signal Comment Signal...
CANplus CP1000 Installation Manual D31 IO Pinout This connector contains the CP1000’s expanded IO. The following is the pinout: Signal Comment Signal Comment 1 A @ Switched In 1 Active Low Switched Out 5 System Voltage Transducer 1 A @ Switched In 2 Active Low Power 1...
The CP1000 has protection against these negative surges. However, it is still required to have a protection/suppression diode as close to the relay as possible. Cattron recommends the use of relays that have this protection/suppression diode built in. The protection/suppression diode must have sufficient voltage ratings to survive and sufficiently suppress these negative voltage surges.
CANplus CP1000 Installation Manual Testing WARNING DURING THE FOLLOWING PROCEDURE, CORRECT ANY PROBLEMS BEFORE PROCEEDING TO THE NEXT STEP. CONTINUED TESTING MAY DAMAGE THE PANEL, HARNESS OR ENGINE. Use the following testing procedure: 1. Turning the keyswitch ON initiates self-test; check all connections and battery polarity on failure. 2.
CANplus CP1000 Installation Manual Certifications FCC Part 15 Certification This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CANplus CP1000 Installation Manual Industry Canada Certification Note: These statements are required to be listed in both English and French Languages. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
CANplus CP1000 Installation Manual Technical Support For remote and communication control systems support, parts and repair, or technical support, visit us online at: www.cattron.com/contact. 9M01-1000-A401-EN Revision B...
