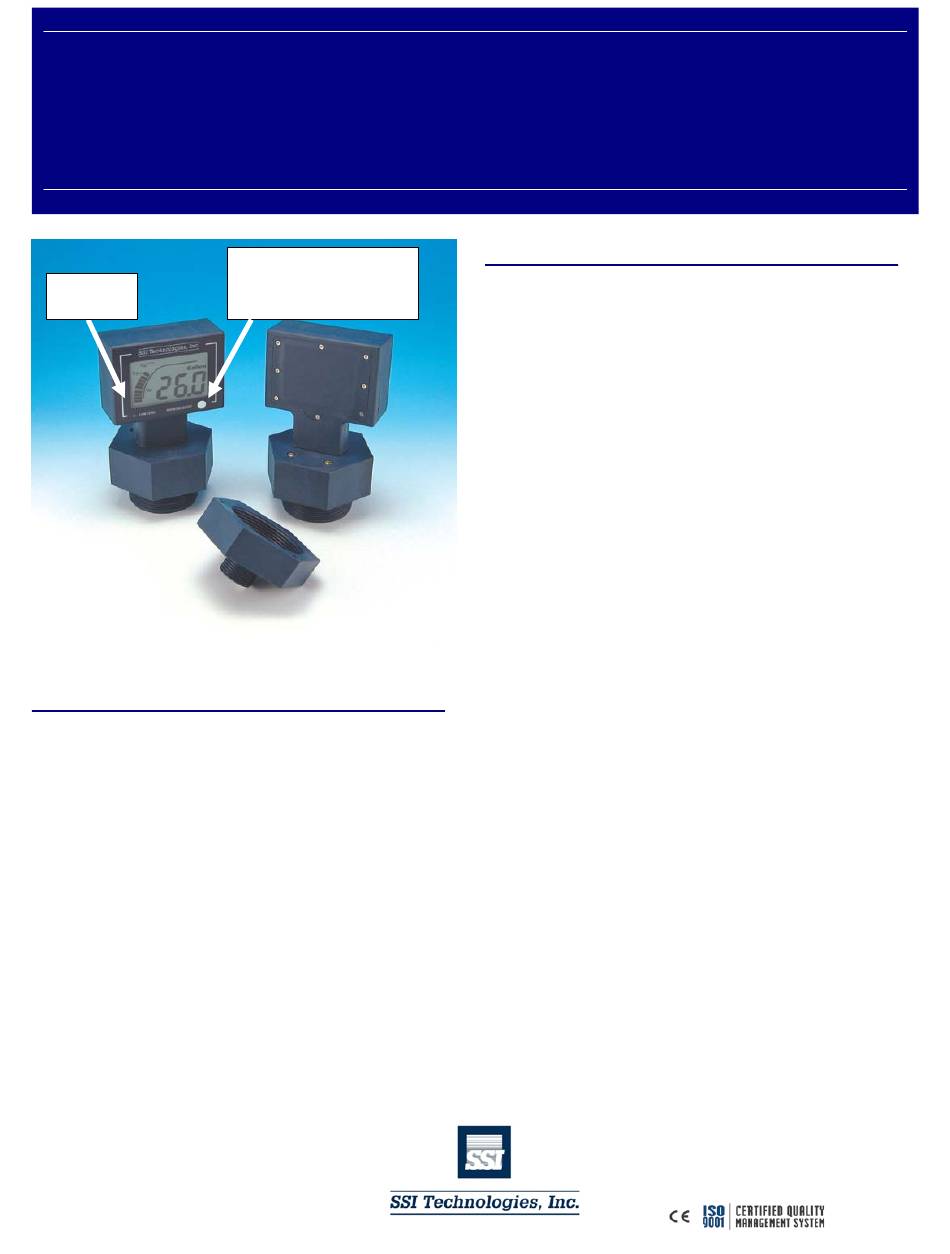

SSI Technologies - Application Note DT-AN5
Digital Fluid – Trac
Low Level
Warning
Product Description

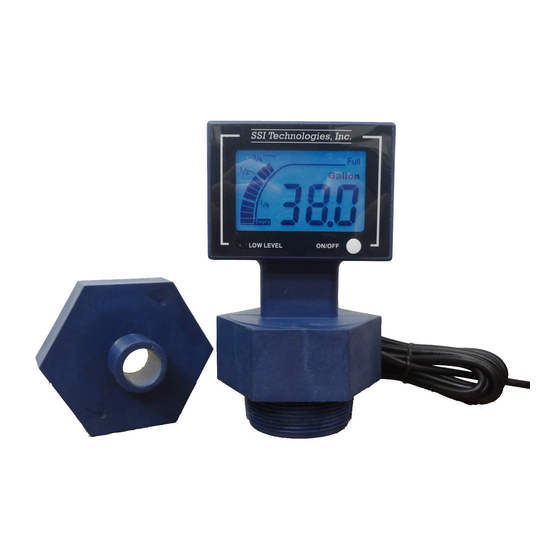

Digital Fluid-Trac™ Model DFT-110 multi unit drum
level gauge is a cost competitive non-contact liquid
level drum gauge. The DFT-110 drum gauge was
designed for usage on ANSI MH2-2004 vertical
drums ( ≤ 32 inch depths). The DFT -110 drum
gauge allows the user to easily select between the
following vertical drum settings:
•
15 gallon
•
30 gallon
•
55 gallon
•
57 liter
•
114 liter
•
208 liter
SSI TECHNOLOGIES, INC.
Controls Division
2643 W. Court Street
Janesville, WI 53548-5011
Phone: (608)758-1500 Fax: (608) 758-2491
www.ssitechnologies.com
TM
(DFT – 110) Multi-Unit Drum Gauge
Product Overview
Press and release
Refresh/Select to update
the level reading and select
display units
Product Features
•
Multiple Selectable Units: 15, 30, 55 gallons
or 57, 114, 208 liters
•
Resolution: +/- 0.5 gallon or +/- 1 liter
•
Accuracy: +/-2% of full scale volume (based on
55 gal / 208 liter setting)
•
Automatic Shutoff To Prolong Battery Life
•
NEMA 4 Packaging
•
Static Display Useful for Usage Consumption
Calculations: The static level reading can be
used for manual rate calculations – i.e. daily or
weekly consumption.
•
Low Level Warning Light: A red LED will flash
once every second when the volume is at 10%
or below the maximum volume.
•
Easy to install: Digital Fluid-Trac™ DFT-110
has no components to protrude into the drum.
•
Standard: Fits 2" NPT or ¾" NPS opening
•
Dead Band: 6" from top of barrel when using
the optional ¾" adaptor
•
More Reliable: No components to chemically
corrode inside liquid media.
•
Chemical compatibility:
DFT-110 drum gauge works with a wide variety
of media such as water, waste water, motor oil,
hydraulic fluid and diesel fuel.
*
Outside of stated dead band.
The Digital Fluid-Trac™ DFT-110 drum level gauge
is NOT intended for use with gasoline.
SSI can customize the drum level gauge for other
sizes for large volume OEM orders.
Contact SSI Technologies at (608) 758-1500.
Page 1
*
*
Digital Fluid-Trac™
Copyright 12/23/09
SSI Technologies Inc.
All Rights Reserved
Revision 1
RoHS
