SSI Digital Fluid-Trac DFT-110 Application Note

SSI Technologies – Application Note DT-AN5
Digital Fluid-Trac™ (DFT-110) Multi-Unit Drum Gauge
Low Level
Warning

Product Description

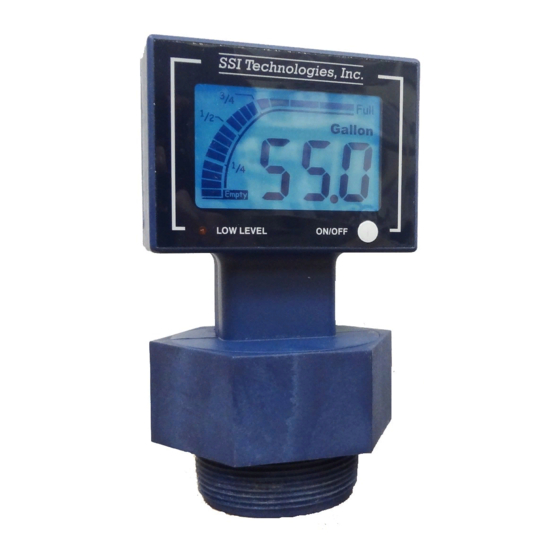

Digital Fluid-Trac™ Model DFT-110 multi unit drum
level gauge is a cost competitive non-contact liquid
level drum gauge. The DFT-110 drum gauge was
designed for usage on ANSI MH2-2004 vertical drums
(≤ 32 inch depths). The DFT-110 drum gauge allows
the user to easily select between the following vertical
drum settings:
•
15 gallon
•
30 gallon
•
55 gallon
•
57 liter
•
114 liter
•
208 liter
SSI TECHNOLOGIES, INC.
Controls Division
2643 W. Court Street
Janesville, WI 53548-5011
Phone: (608)758-1500
Fax: (608) 758-2491
www.ssitechnologies.com
Product Overview
Press and release
Refresh/Select to update the
level reading and select
display units
Page 1

Product Features

•
Multiple Selectable Units: 15, 30, 55 gallons
or 57, 114, 208 liters
•
Resolution: +/- 0.5 gallon or +/- 1 liter
•
Automatic Shutoff To Prolong Battery Life
•
NEMA 4 Packaging
•
Static Display
Consumption Calculations: The static level
reading can be
calculations – i.e. daily or weekly consumption.
•
Low Level Warning Light: A red LED will
flash once every second when the volume is at
10% or below the maximum volume.
•
Easy to install: Digital Fluid-Trac™ DFT-110
has no components to protrude into the drum.
•
Standard: Fits NPT openings (2" or ¾")
•
More Reliable: No components to chemically
corrode inside liquid media.
•
Chemical compatibility: Digital Fluid-Trac™
DFT-110 drum gauge works with a wide
variety of media such as water, waste water,
motor oil, hydraulic fluid and diesel fuel.
•
Angle Performance:
DFT-110 is rated @ +/- 2 Degrees when using
the ¾ Inch Adaptor and +/- 3 Degrees when
used in the 2" hole.
The Digital Fluid-Trac™ DFT-110 drum level gauge is
NOT intended for use with gasoline.
SSI can customize the drum level gauge for other sizes
for large volume OEM orders.
Contact SSI Technologies at (608) 758-1500.
Useful for Usage
used for manual rate
Digital Fluid-Trac™
Copyright April 21, 2009
SSI Technologies Inc.
All Rights Reserved
Revision 1
RoHS
