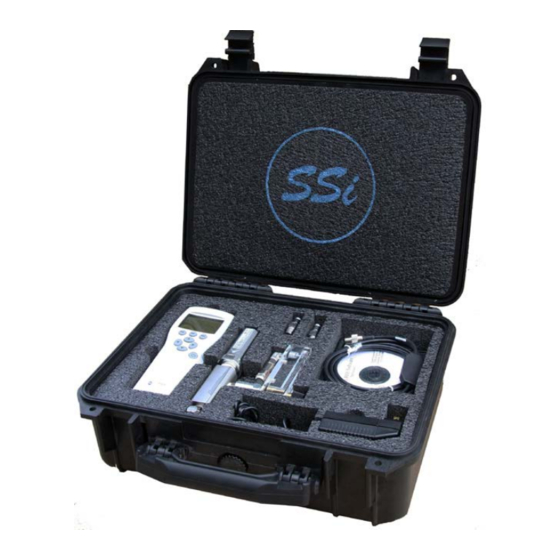

- Page 1 OPERATIONS MANUAL DPL4000 Portable Low Range Dew Point Analyzer 7205 Edington Drive / Cincinnati, OH 45249 / Tel (513) 772-0060 / Fax (513) 772-9466 Page #1 of 17 ___________________________________________________________________________ M4581 – DPL4000...
- Page 2 Special Features: The dew point sensor in the DPL4000 performs two functions that provide increased accuracy and response time. • Automatic Calibration – The sensor warms itself and performs an offset (zero point) correction.
- Page 3 5 and 15 minutes, depending on the dew point of the measured gas and the dew point that the sensor was exposed to prior to installation. DPL4000 Components: 3, 6, 7, 9, 10 Page #3 of 17 ___________________________________________________________________________ M4581 – DPL4000...
-
Page 4: Installing And Removing The Battery Pack
12. Battery Pack (PN 32015) Installing and Removing the Battery Pack The DPL4000 is supplied with a rechargeable battery pack. It is also possible to power the instrument using four (4) “AA” 1.5V alkaline batteries. To use the alkaline batteries, you will need to install the supplied metal contact plate at the base of the battery housing. -
Page 5: Charging The Battery Pack
To navigate in the menus, press arrow buttons. 0403-033 Figure 2 Buttons The following numbers refer to Figure 2 above. Shortcut buttons Arrow buttons Power on/off button Page #5 of 17 ___________________________________________________________________________ M4581 – DPL4000... -
Page 6: Turning On The Device
To return to the previous level, press To return to normal operation, press Exit. Display Menu Quantities and Units You can select between 1 and 3 quantities to display at one time. The options are: Page #6 of 17 ___________________________________________________________________________ M4581 – DPL4000... -
Page 7: Graphic History
Functions Menu Alarm The DPL4000 can be set to beep and have the backlight blink when the measurement exceeds pre-determined limits. The alarm level(s) can be set for only one quantity at a time. To set the alarm levels, follow the instructions below: Page #7 of 17 ___________________________________________________________________________ M4581 –... -
Page 8: Analog Input
The alarm does not work when the device is turned off. Analog Input This feature has not been enabled on the DPL4000. It is possible to obtain an analog output directly from the sensor. For information on this procedure, please contact Super Systems Inc. -
Page 9: Recording/Viewing Menu
If you choose Memory full, you will see the maximum recording time on the display. You can also delete files to empty the memory. To accept the maximum recording time, press Start again. Page #9 of 17 ___________________________________________________________________________ M4581 – DPL4000... -
Page 10: Stopping Recording
You can switch off DPL4000 during recording to save the battery. A message will appear on the display to inform that recording will continue undisturbed even when the power is turned off. If the indicator is switched off during recording, the progress bar is shown on the display every 10 seconds (continuously if the charger is connected). -
Page 11: Clear Data Memory
To return to the basic display, press Exit. Transferring Recorded Data to PC The recorded data can be transferred to a PC using the DPL4000 / MI70 Link program. With this software the recorded data can be examined and saved easily in the Microsoft Windows® environment and transferred to a spreadsheet program, such as Microsoft Excel®,... -
Page 12: Settings Menu
Select Settings and then press Select User interface and then press Select Language and press Set. Then select the desired language and press Select. To return to the basic display, press Exit. Page #12 of 17 __________________________________________________________________________ M4581 – DPL4000... -
Page 13: Automatic Power Off
Reselect the language. Automatic Power Off To save battery life, the DPL4000 can be set to turn off automatically after a period of inactivity. As a default, this feature has been turned off. This will allow for extended periods of datalogging without the risk of interruption from power loss. -
Page 14: Button Tones And Backlight
For correct time and date in the recorded data files, follow the instructions below: Open the menu by pressing Open. Select Settings and press Select Date and time and press Page #14 of 17 __________________________________________________________________________ M4581 – DPL4000... -
Page 15: Measurement Settings
Select Device information and press Show. The first display gives the information on the MI70 indicator. For details on the probe, press More and then press To return to the basic display, press Exit. Page #15 of 17 __________________________________________________________________________ M4581 – DPL4000... -
Page 16: Factory Settings
Revert. To confirm the selection, press Yes. Power is turned off automatically. When turning on DPL4000 again, the factory settings are restored. You will have to set the language, date, and time again. Page #16 of 17 __________________________________________________________________________ M4581 – DPL4000... -
Page 17: Revision History
REVISION HISTORY Rev. Description Date MCO # First release Added part numbers 2/20/2019 2257 Page #17 of 17 __________________________________________________________________________ M4581 – DPL4000...
