MABIS 15-705-000 Quick Start Quide

20-Second Flexible Tip Dual Scale
Digital Thermometer
Thank you for purchasing a MABIS Digital Thermometer. Please read the following
detailed instructions to achieve the most accurate temperatures and safe operation.
With proper care and use, your thermometer will provide you with years of reliable
readings.
What is a "Normal" Temperature?
Although the generally accepted "normal" temperature reading is 98.6 ° F (37.0 ° C),
temperature readings can vary from 97 ° F (36.1 ° C) to 99 ° F (37.2 ° C) and still may be
considered "normal". Variations in temperature can be attributed to activities such as
exercise, smoking, eating and drinking. Even time of day may influence your tem-
perature. For example, your temperature is lower in the morning than in the after-
noon. Other variations may be due to the location of the temperature
reading. While the oral temperature follows the guidelines previously described, a
rectal temperature is generally 1.0 ° F (0.5 ° C) higher. Conversely, an axillary (under
the arm) temperature will be 1.0 ° F (0.5 ° C) lower.

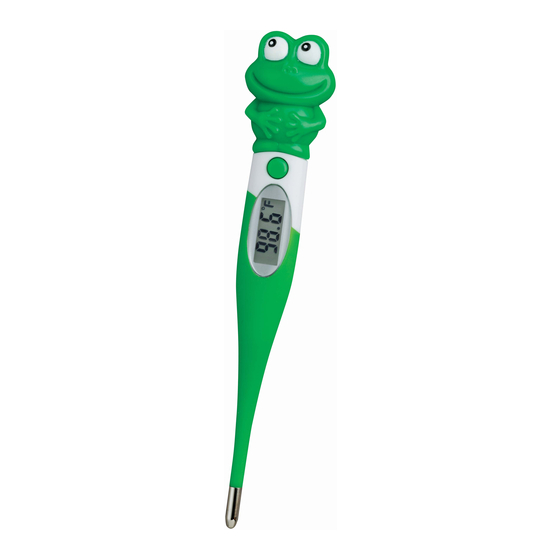

Features of your MABIS Digital Thermometer
DIGITAL DISPLAY WINDOW
PROBE TIP
ON/OFF BUTTON
Cleaning Instructions
You can clean your Digital Thermometer by wiping it with soap and water or
70% Isopropyl Alcohol. THE UNIT MUST NEVER BE SUBMERSED IN ANY
LIQUID OR STERILIZED IN ANY WAY (GAS OR STEAM AUTOCLAVES).
Failure to follow these instructions will cause severe damage to your unit and
void your warranty.
Switching Dual Scale
NOTE: To change between Celcius and Fahrenheit readings, hold the POWER
button for 2 seconds until the "Lo" with an "m" displays and changes between °F and
°C. Press the POWER button again to turn the thermometer off.
How to Take Your Temperature
1. Clean the thermometer according the instructions provided.
2. Apply a disposable probe cover to the clean, dry thermometer.
3. Determine whether the measurement site will be oral, rectal or underarm.
NOTE: Measurement time may vary based on the selected site.
Once the desired temperature is selected, press the POWER
button (the unit will beep) to activate the thermometer. This is the
LCD display test, which insures all parts of the display are func-
tioning properly.
The last measured temperature with an "m" will appear. If there
is no previous measurement, "Lo" °F(°C) will be displayed.
98.6°F(37.0°C) will briefly appear
Finally, a "Lo" with a flashing °F(°C) will appear in the display to
indicate that the thermometer is ready for measurement.
NOTE: If the room temperature is above 89.6°F(32.0°C), the room temperature will
display instead of the Lo.
Taking an Oral Temperature
Approximate measurement time: 20 seconds
1. Using the diagram on the right, place the
probe tip under the tongue as near as
HEAT
possible to the heat pocket. The diagram
POCKET
also shows the temperature variables by
not placing the tip in the heat pocket
area.
NOTE: Drinking hot or cold fluids,
exercising, smoking or performing other
activities may raise or lower your
temperature. Therefore, it is important to
relax for approximately 5 minutes with your
mouth closed prior to taking a reading.
2. The current temperature is shown and the ° F ( ° C) will continue to flash during the
reading.
3. When the peak temperature has been reached, the
ing and the thermometer will sound ten long beeps if the temperature is
o
below 100 F(37.8°C). If the temperature is above 100
will sound ten sets of three short beeps each.
4. To turn the unit off, press the ON/OFF button. The unit will automatically shut off
after approximately nine minutes.
NOTE: The mouth must remain closed during the measurement for the most
accurate reading. Opening the mouth could result in an extended measurement time
and may affect the reading.
Taking an Axillary Temperature (under the arm)
Approximate measurement time: 30 seconds
1. Wipe the underarm with a dry towel.
2. Place the probe tip under the arm so the tip is touching the skin with the
thermometer perpendicular to the body.
3. Position the arm across the chest so the probe tip is well covered by the arm. This
also insures the probe is not affected by the room's air.
4. When the peak temperature has been reached, the
ing and the thermometer will sound ten long beeps if the temperature is
o
below 100 F(37.8°C). If the temperature is above 100
will sound ten sets of three short beeps each.
5. To turn the unit off, press the ON/OFF button. The unit will automatically shut off
after approximately nine minutes.
NOTE: Axillary temperatures are generally 1.0 ° F (0.5 ° C) lower than oral readings.
Taking a Rectal Temperature
Approximate measurement time: 15 seconds
NOTE: Rectal temperatures are an appropriate and reliable method for infants and
small children. Otherwise, this method should only be used when it is impossible or
impractical to take an oral or axillary temperature.
BATTERY COVER
1. After applying the disposable probe cover, apply a water-soluble lubricant to
(Animal May Vary)
the tip.
2. Gently insert the probe a MAXIMUM of 1/2" into the rectum.
3. When the peak temperature has been reached, the
ing and the thermometer will sound ten long beeps if the temperature is
o
below 100 F(37.8°C). If the temperature is above 100
will sound ten sets of three short beeps each.
4. To turn the unit off, press the ON/OFF button. The unit will automatically shut off
after approximately nine minutes.
NOTE: Rectal temperatures are generally 1.0 ° F (0.5 ° C) higher than oral readings.
Using Disposable Probe Covers
It is recommended to use the enclosed disposable probe covers to prevent cross
contamination. Additional probe covers can be purchased from your MABIS Dealer
or with the order form provided.
General Care
1. The thermometer should only be used under the supervision of an adult.
2. Do not walk, run or talk during temperature taking.
3. Clean the thermometer before and after each use.
4. Store the unit in the protective case when not in use.
5. Do not bite the probe.
6. Do not store the unit where it will be exposed to direct sunlight, dust or humidity.
Avoid extreme temperatures.
7. Dropping or subjecting your thermometer to strong shocks should be avoided.
8. Do not attempt to disassemble the unit, except to replace the battery.
9. If measurement is not attainable, the unit must be replaced.
NOTE: Performance of the device may be degraded if: operated outside of stated
temperature and humidity range; stored outside of stated temperature and humidity
range; thermometer undergoes mechanical shock (drop); patient temperature is
below ambient temperature.
Changing the Battery
The battery in your digital thermometer needs to be replaced when the "
bol appears. Replace the battery with a LR41 or equivalent.
To replace the battery,
1. Remove screw and slide the battery cap away from the
unit.
2. Gently pull the battery tray out until it stops. Using a non-
metal pointed tool, carefully remove the battery and insert
the new battery with the positive (+) side facing up.
3. Carefully slide the battery cap back into place, making
sure that the cap fits snugly to protect the battery com-
partment from moisture and replace screw.
NOTE: Please properly dispose of the battery away from
children and heat.
HEAT
Specifications
98.8 o F 98.8 o F POCKET
37.1 o C 37.1 o C
DISPLAY:
DISPLAY RESOLUTION:
98.4 o F 98.4 o F MEASUREMENT RANGE:
36.9 o C 36.9 o C
ACCURACY:
AVERAGE MEASUREMENT TIME:
98.1 o F
36.7 o C
TONE:
97.9 o F 97.9 o F
36.6 o C 36.6 o C
97.7 o F MEMORY:
36.4 o C
BATTERY:
BATTERY LIFE:
AUTOMATIC SHUT-OFF:
AMBIENT OPERATING TEMPERATURE:
HUMIDITY:
o STORAGE TEMPERATURE:
F(°C) will stop flash-
HUMIDITY:
DIMENSIONS:
o
F(37.8°C) the unit
WEIGHT:
Specifications are subject to change without notice. Meets ASTM Standard E1112.
o
F(°C) will stop flash-
o
F(37.8°C) the unit
o
F(°C) will stop flash-
o
F(37.8°C) the unit
" sym-
Liquid Crystal Display
4 Digits (1/10TH of a degree increments)
° ° ° °
90.0 F to 109.9 F (32 C - 42.9 C)
° ° ° ° ° °
±0.2 F (98.0 F - 102.0 F) ±0.1 C (37.0 C - 39.0 C)
Oral 20 seconds. Rectal 15 seconds. Axillary 30 seconds
Thermometer beeps when activated and deactivated.
A series of beeps signal when peak temperature is reached.
Displays last measured temperature
One, LR41 or equivalent
Approximately 1,500 measurements
After approximately 9 minutes
° ° ° °
50.0 F to 113.0 F (10 C to 45 C)
15% to 95% RH
-4.0 ° F to 122.0 ° F (-20 ° C to 50 ° C)
15% to 95% RH
Puppy: 5-3/4" x 7/8" x 3/4" Frog: 5-3/4" x 1-1/8" x 3/4"
Bunny: 5-7/8" x 7/8" x 5/8" Cow: 5-5/8" x 7/8" x 3/4"
Duck: 5-3/4" x 7/8" x 3/4"
Puppy: 0.48 ounces (13.5 grams) Frog: 0.51 ounces (14.6 grams)
Bunny: 0.42 ounces (11.8 grams) Cow: 0.47 ounces (13.2 grams)
Duck: 0.50 ounces (14.2 grams)
Model 705
#MT-F19-BPDVF 04/08
©2008 MABIS Healthcare
LIMITED FIVE YEAR WARRANTY
MABIS Healthcare ('MABIS') guarantees that its MABIS Digital Thermometer will be free
from manufacturing defects under normal use for a period of five years.
This warranty covers only normal use, and does not apply to use in any clinical or
commercial applications. This warranty does not cover batteries or other power sources
that may be provided with or used with the MABIS Digital Thermometer. This warranty is
voided if the MABIS Digital Thermometer product is misused or abused in any manner.
If the MABIS Digital Thermometer fails to operate during the time the original
purchaser owns it, return it postage prepaid to: MABIS Healthcare, Attn: Repair
Department, 1931 Norman Drive South, Waukegan, IL 60085. MABIS will repair or
replace the defective unit at the option of MABIS Healthcare. Repair or replacement of
the defective unit, at MABIS' option, is the sole remedy under this warranty.
ANY IMPLIED WARRANTIES WHICH THE PURCHASER MAY HAVE ARE LIMITED IN
DURATION TO THE TIME THAT THE ORIGINAL CONSUMER PURCHASER OWNS
THE PRODUCT. Some states do not allow limitations or how long an implied warranty
lasts, so the above limitation may not apply to you.
This warranty constitutes MABIS' only responsibility and obligation to repair and/or
replace materials or components, or refund the purchase price. MABIS will not be
responsible for any indirect, incidental, special, consequential, or punitive damages or
other loss, including, but not limited to, damage to or loss of other property or equipment
and personal injuries, whether to purchaser or others. MABIS shall in no event be liable
to the purchaser for any amount in excess of the cost of repair and/or replacement of the
unit, or the purchase price of the unit. Some states do not allow the exclusive or
limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
