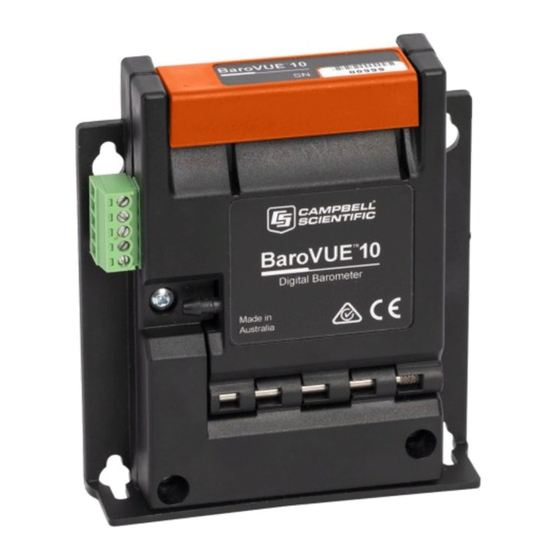

Campbell BaroVUE 10 Product Manual

Digital barometer
Hide thumbs Also See for BaroVUE 10:
Table of Contents

Advertisement

Quick Links

Download this manual
04/2021
Copyright © 2021
Campbell Scientific, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BaroVUE 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell BaroVUE 10

Summary of Contents for Campbell BaroVUE 10

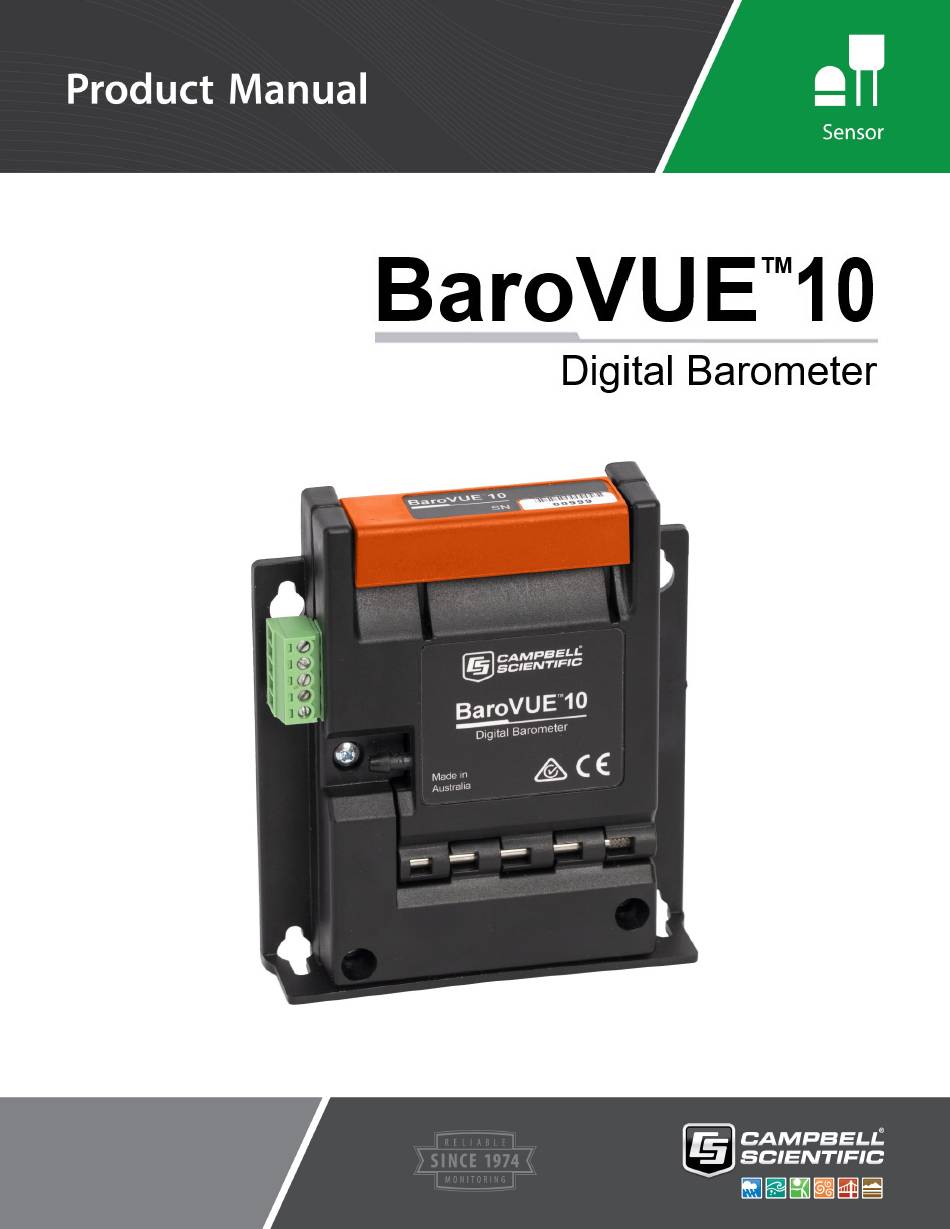

  • Page 1 04/2021 Copyright © 2021 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Precautions 3. Initial inspection 4. Overview 5. QuickStart 6. Specifications 6.1 Accuracy 7. Installation 7.1 Wiring 7.1.1 SDI-12 data logger connections 7.1.2 RS-232 connections 7.2 Programming 7.2.1 SDI-12 programming 7.2.2 RS-232 programming 7.3 Mounting 7.3.1 External air intake 7.3.2 Typical mounting 7.3.3 ENC100 mounting...
  • Page 3 8.7.2 Recovery mode 9. Troubleshooting and maintenance 9.1 Troubleshooting 9.2 Maintenance 9.3 Sensor card replacement procedure Appendix A. Importing Short Cut code into CRBasic Editor Appendix B. SDI-12 sensor support B.1 SDI-12 command basics B.1.1 Acknowledge active command (a!) B.1.2 Send identification command (al!) B.1.3 Start verification command (aV!) B.1.4 Address query command (?!) B.1.5 Change address command (aAb!)

  • Page 4: Introduction

    4,570 m above sea level. The BaroVUE 10 is designed for use in environmental applications and is compatible with all Campbell Scientific data loggers.

  • Page 5: Initial Inspection

    BaroVUE 10 beyond repair. 3. Initial inspection   Upon receipt of the BaroVUE 10, inspect the packaging and contents for damage. If any damage during transport has occurred, file damage claims with the sensor provider.  ...

  • Page 6: Overview

    SDI-12 or RS-232 protocol to a data logger. The BaroVUE 10 also includes built-in outlier detection and quality metric with each measurement ensuring a reliable and accurate pressure sample.

  • Page 7: Quickstart

    . It is included in installations of LoggerNet, RTDAQ, and PC400. The following procedure also shows using Short Cut to program the BaroVUE 10.  1. Open Short Cut and click Create New Program.  2. Double-click the data logger model.
  • Page 8  3. In the Available Sensors and Devices box, type BaroVUE10 or find the sensor in the Sensors > Meteorological > Barometric Pressure folder, and double-click BaroVUE10 (SDI-12) Barometric Pressure Sensor. SDI-12 Address defaults to 0. Enter the correct SDI-12 Address for the sensor if it has been changed from the factory default value.
  • Page 9  6. In Output Setup, type the scan rate, a Table Name, and Data Output Storage Interval. Click Next.  7. Select the output options.  8. Click Finish and save the program. Send the program to the data logger if the data logger is connected to the computer.

  • Page 10: Specifications

    6. Specifications Digital output: SDI-12, RS-232 serial 1 s for the M! SDI-12 command Response time: Default configuration   SDI-12: Default SDI-12 address is 0 RS-232: 9600 baud rate, eight data bits, no parity, one stop bit Operating range   Pressure: 500 to 1100 hPa Temperature:...

  • Page 11: Accuracy

    7.1 Wiring The BaroVUE 10 does not support communications through SDI-12 and RS-232 simultaneously. The data logger connects to the BaroVUE 10 with a 5-pin screw terminal plug connector. This connector is removable and may be replaced. FIGURE 7-1. 5-pin screw terminal plug connector and connections...

  • Page 12: Sdi-12 Data Logger Connections

    U and C terminals are automatically configured by the measurement instruction. If multiple SDI-12 sensors are connected to a data logger, Campbell Scientific recommends using separate terminals when possible. However, multiple SDI-12 sensors can connect to the same data logger control or U terminal.

  • Page 13: Programming

    7.2 Programming Short Cut is the best source for up-to-date programming code for Campbell Scientific data loggers. If your data acquisition requirements are simple, you can probably create and maintain a data logger program exclusively with Short Cut. If your data acquisition needs are more complex, the files that Short Cut creates are a great source for programming code to start a new program or add to an existing custom program.

  • Page 14: Mounting

    Table 7-3: Serial instructions Instruction Function SerialFlush() Clears the buffer. Scan() Establish a scan rate. SerialOut() Send command to the sensor. Set up the COM port to receive the incoming serial data. Note that in the beginning of the CRBasic program, the variable used in the SerialIn() SerialIn() instruction needs to be declared as an ASCII string...

  • Page 15: Typical Mounting

    To prevent condensation, install the sensor in an environmentally protected enclosure, complete with desiccant. Change desiccant at regular intervals. The BaroVUE 10 is typically mounted in a Campbell Scientific enclosure next to the data logger. Secure the BaroVUE 10 to an enclosure backplate by inserting screws through the mounting holes in the BaroVUE 10 and into the grommets.

  • Page 16: Enc100 Mounting

    FIGURE 7-3. BaroVUE 10 mounted in a Campbell Scientific enclosure 7.3.3 ENC100 mounting Campbell Scientific offers the ENC100 for situations where it is desirable to house the BaroVUE 10 in its own enclosure (see FIGURE 7-4 (p. 14)). The ENC100 is a small enclosure with dimensions of 17 x 14 x 10 cm (6.7 x 5.5 x 3.9 in).

  • Page 17: Din-Rail Mounting

    FIGURE 7-4. ENC100 is a small enclosure that can house one BaroVUE 10 7.3.4 DIN-rail mounting The BaroVUE 10 can also be mounted to a DIN Rail using the DIN Rail mounting kit (purchased separately). The DIN Rail mounting kit contains the following parts:...

  • Page 18: Operation

    FIGURE 7-6. BaroVUE 10 with optional DIN Rail mounting kit 8. Operation This section discusses the following: 8.1 Factory settings 8.2 SDI-12 commands 8.3 Quality metric 8.4 Correcting pressure to sea level 8.5 Device Configuration Utility 8.6 RS-232 polled mode commands 8.7 Main menu...

  • Page 19: Factory Settings

    As measurement data is transferred between the BaroVUE 10 and data logger digitally, there are no offset errors incurred with increasing cable length as seen with analog sensors. However, with increasing cable length, there is still a point when digital communications break down, resulting in either no response or excessive SDI-12 retries and incorrect data due to noise problems.

  • Page 20: Quality Metric

      8.3 Quality metric For each pressure value, the BaroVUE 10 can output a number known as the quality metric (QM). The QM indicates the quality in the pressure measurement. For more information about the QM, refer to the following table.

  • Page 21: Correcting Pressure To Sea Level

    Contact your local Campbell Scientific office for a recalibrated. replacement card. The BV10 BaroVUE 10 card is out of calibration or has 0 to 3.99 Recalibrate the sensor now. a fault. Contact your local Campbell Scientific office for a replacement card.
  • Page 22  1. Open the main case by unclipping the latch and opening the main door. FIGURE 8-1. BaroVUE 10 with main door open  2. Open Device Configuration Utility. BaroVUE™10 Digital Barometer     19...
  • Page 23  4. If this is the first time connecting the BaroVUE 10 to the computer, click Install USBDriver before connecting the cable to the computer.  5. Use the USB cable to connect the BaroVUE 10 USB port to a computer USB port. See FIGURE 8-1 (p.
  • Page 24  7. Click Connect to access the Settings Editor.  8. Click the Live Data tab to view real-time measurements. The Quality Metric Sample value should be greater than 5 (see Quality metric (p. 17)). BaroVUE™10 Digital Barometer     21...
  • Page 25  9. To change the SDI-12 address, click the SDI-12 tab, click the SDI-12 box, select a different value, then click Apply.  10. Click the RS-232 tab to change the RS-232 Mode, Baud Rate, Parity, Continuous Mode Sample Period, and Continuous Mode Measurement Units. After changing settings, click Apply.

  • Page 26: Updating Operating System

     6. Select the file. It will have an .a43 extension.  7. Click OK. The operating system will start downloading. When download is complete, the BaroVUE 10 will restart and the green LED will flash. WARNING: Do not remove power or disconnect the device during the operating system download.
  • Page 27  3. Type a command from Table 8-4 (p. 24).  4. Press enter to make the measurement. Table 8-4: RS-232 command list Command Values returned Units  1. Pressure  1. hPa  2. Temperature  2. °C  3. Quality Metric  3. not applicable (N/A)  1.

  • Page 28: Main Menu

     2. Connect the BaroVUE 10 to power.  3. Use the USB cable to connect the BaroVUE 10 USB port to a computer USB port.  4. Open a terminal program and set the communication settings to match the device. If the...

  • Page 29: Rs-232 Polled Mode Commands

    Updating device settings:   > indicates the currently active settings.   To change a setting, type the character associated with the menu option and press enter.   To save changes, navigate to the main menu, type +, and press enter.  ...

  • Page 30: Recovery Mode

     3. Type a command from Table 8-5 (p. 27).  4. Press enter to make the measurement. Table 8-5: RS-232 command list Command Values returned Units  1. Pressure  1. hPa  2. Temperature  2. °C  3. Quality Metric  3. not applicable (N/A)  1.
  • Page 31 FIGURE 8-3. BaroVUE 10 with main door open  2. Connect the BaroVUE 10 to power.  3. Use the USB cable to connect the BaroVUE 10 USB port to a computer USB port.  4. Open a terminal program and set the communication settings to the factory defaults (Factory settings (p.

  • Page 32: Troubleshooting And Maintenance

    However, it is recommended that the sensor card is sent to Campbell Scientific for calibration every 12 months regardless of the value of the quality metric. Refer to...

  • Page 33: Sensor Card Replacement Procedure

    9.3 Sensor card replacement procedure CAUTION: The BaroVUE 10 is sensitive to static when the main case is opened. To avoid damage, take adequate anti-static measures when handling.  1. Contact Campbell Scientific for your replacement sensor card and take this newly calibrated card with you to the site of the BaroVUE 10 installation.
  • Page 34  6. Store the old sensor card in an electrostatic protective package and return it to Campbell Scientific for recalibration or general servicing.
  • Page 35  8. Unpack the replacement sensor card, avoiding static discharges to the element by touching the package before touching the element.  9. Either hold the new sensor card by the top of the package (the other end to the gold pins) or use a pair of fine nosed pliers or tweezers to grip the sensor card.

  • Page 36: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut code into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into the CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor:  1.

  • Page 37: Appendix B. Sdi-12 Sensor Support

    SDI-12, Serial Data Interface at 1200 baud, is a protocol developed to simplify sensor and data logger compatibility. Only three wires are necessary — serial data, ground, and 12 V. With unique addresses, multiple SDI-12 sensors can connect to a single SDI-12 terminal on a Campbell Scientific data logger.

  • Page 38: Acknowledge Active Command (A!)

    Table B-1: Campbell Scientific sensor SDI-12 command and response set Response Name Command Address Query a<CR><LF> aAb! Change Address b<CR><LF> Start Measurement atttn<CR><LF> aM1!...aM9! Start Measurement aMC! atttn <CR><LF> aMC1!...aMC9! and Request CRC Start Concurrent Measurement atttnn<CR><LF> aC1!...aC9! aCC! Start Concurrent Measurement atttnn<CR><LF>...

  • Page 39: Start Verification Command (Av!)

    cccccccc 8-character vendor identification mmmmmm 6 characters specifying the sensor model 3 characters specifying the sensor version (operating system) Up to 13 optional characters used for a serial number or other specific xxx…xx sensor information that is not relevant for operation of the data logger Terminates the response <CR><LF>...

  • Page 40: Start Measurement Commands (Am!)

    B.1.6 Start measurement commands (aM!) A measurement is initiated with the M! command. The response to each command has the form atttn<CR><LF>, where a = sensor address ttt = time, in seconds, until measurement data is available. When the data is ready, the sensor notifies the data logger, and the data logger begins issuing D commands.

  • Page 41: Stopping A Measurement Command

    Data logger security may need to be unlocked before activating the transparent mode. Transparent mode is entered while the computer is communicating with the data logger through a terminal emulator program. It is accessed through Campbell Scientific data logger support BaroVUE™10 Digital Barometer     38...

  • Page 42: Changing An Sdi-12 Address

    SDI-12 sensor. The steps shown in Changing an SDI-12 address (p. 39) are used with most Campbell Scientific data loggers. B.2.1 Changing an SDI-12 address This example was done with a CR1000X, but the steps are only slightly different for CR6, CR3000, CR800-series, CR300-series, CR1000 data loggers.
  • Page 43  5. Click the Terminal tab.  6. Select All Caps Mode.  7. Press Enter until the data logger responds with the data logger (CR1000X>) prompt.  8. Type SDI12 and press Enter.  9. At the Select SDI12 Port prompt, type the number corresponding to the control port where the sensor is connected and press Enter.

  • Page 44: References

     11. To change the SDI-12 address, type aAb!, where a is the current address from the previous step and b is the new address. Press Enter. The sensor changes its address and responds with the new address. In the following example, the sensor address is changed from 0 to B.  12.
  • Page 45 See Product Details on the Ordering Information pages at www.campbellsci.com . Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty for more information.
  • Page 46 To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed. For all returns, the customer must provide a “Statement of Product Cleanliness and Decontamination”...
  • Page 47 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 48 Campbell Scientific regional offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
