7.4. What is required for your calibration
and configuration
NEP-5000 sensors come with Subconn or Glanded-NEP cable options. This section describes
the equipment required to connect each sensor option to the calibration module.
7.4.1.

Subconn options only

1. Connect your NEP-5000 Subconn option to the Subconn Female Pigtail provided in
your NEP-5000 kit (Figure 7.4.1.A).

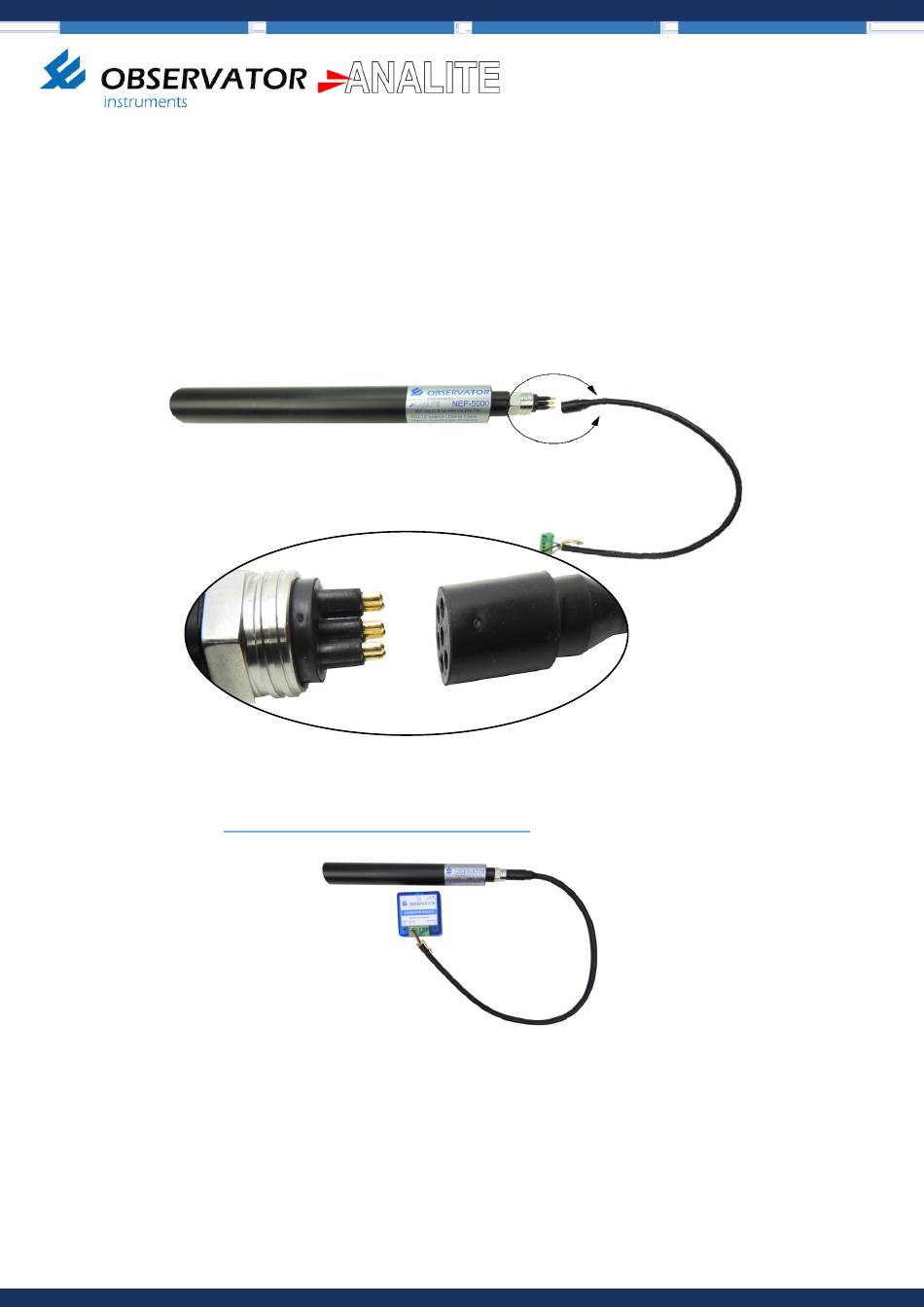

Figure 7.4.1.A: Probe connection to Subconn Female Pigtail
2. Connect the Subconn Female Pigtail to the blue box calibration module (refer to
Section 7.5 "Connect the calibration
Figure 7.4.1.B: Example of Configuration for Subconn SDI-12 Probes
Note: Always be mindful of following the correct Pinout which changes based on your probe
configuration
