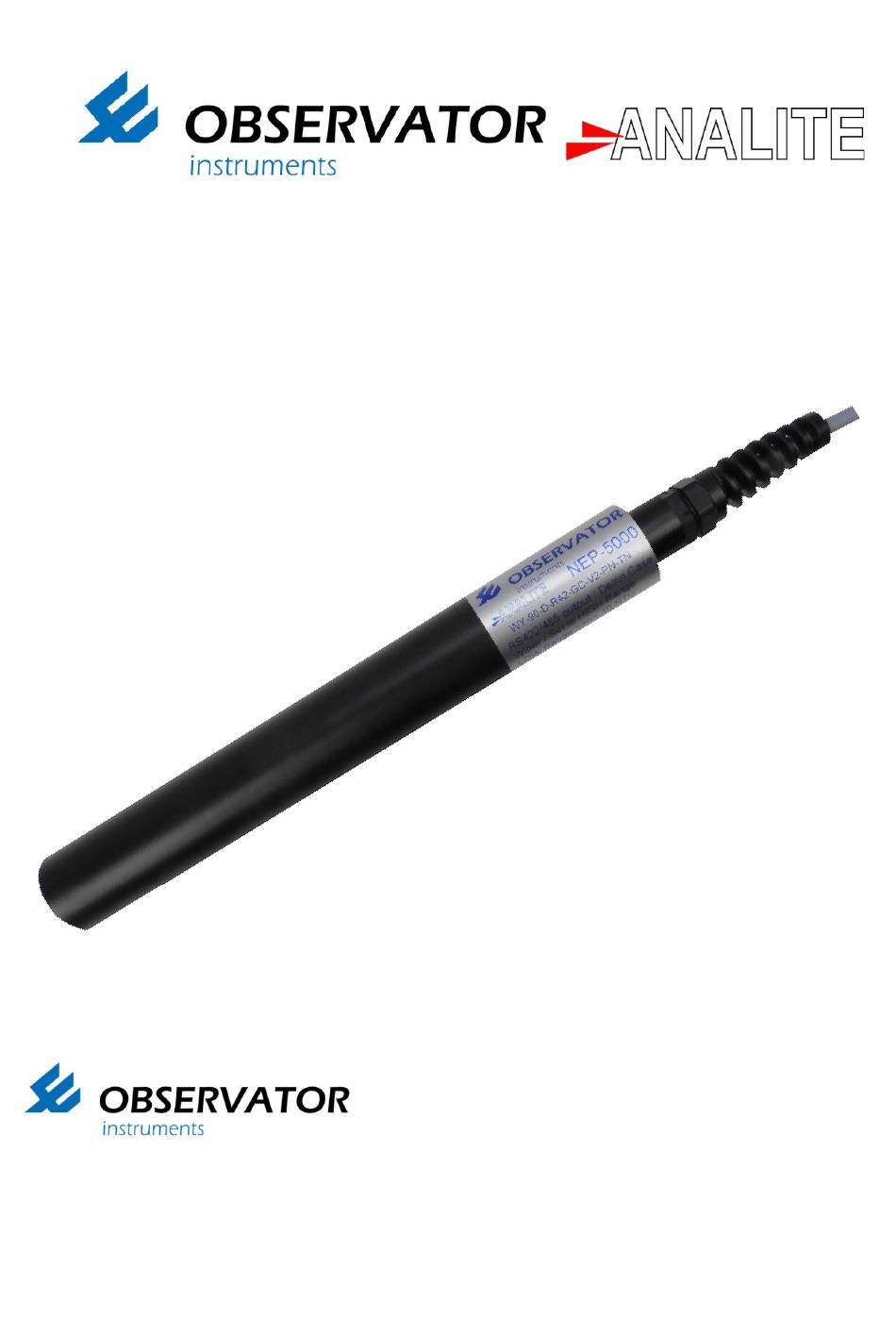

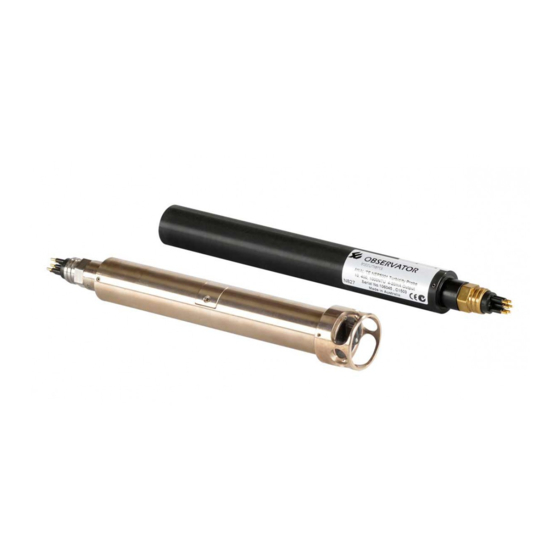

NEP-5000 MANUAL
Nep-5000 General Information
ABN 56 007 283 963
Manual
8-10 Keith Campbell Court, PO Box 9039
Version 2019-08-29 – August 2019
Scoresby, VIC 3179 AUSTRALIA
Author: Observator Instruments
Tel: +61 3 8706 5000, Fax: +61 3 8706 5049
Email: sales.au@observator.com
Web: www.observator.com
Observator Instruments
Page 1
Copyright 2019
©
