GNSS Module Series
L26-LB EVB User Guide

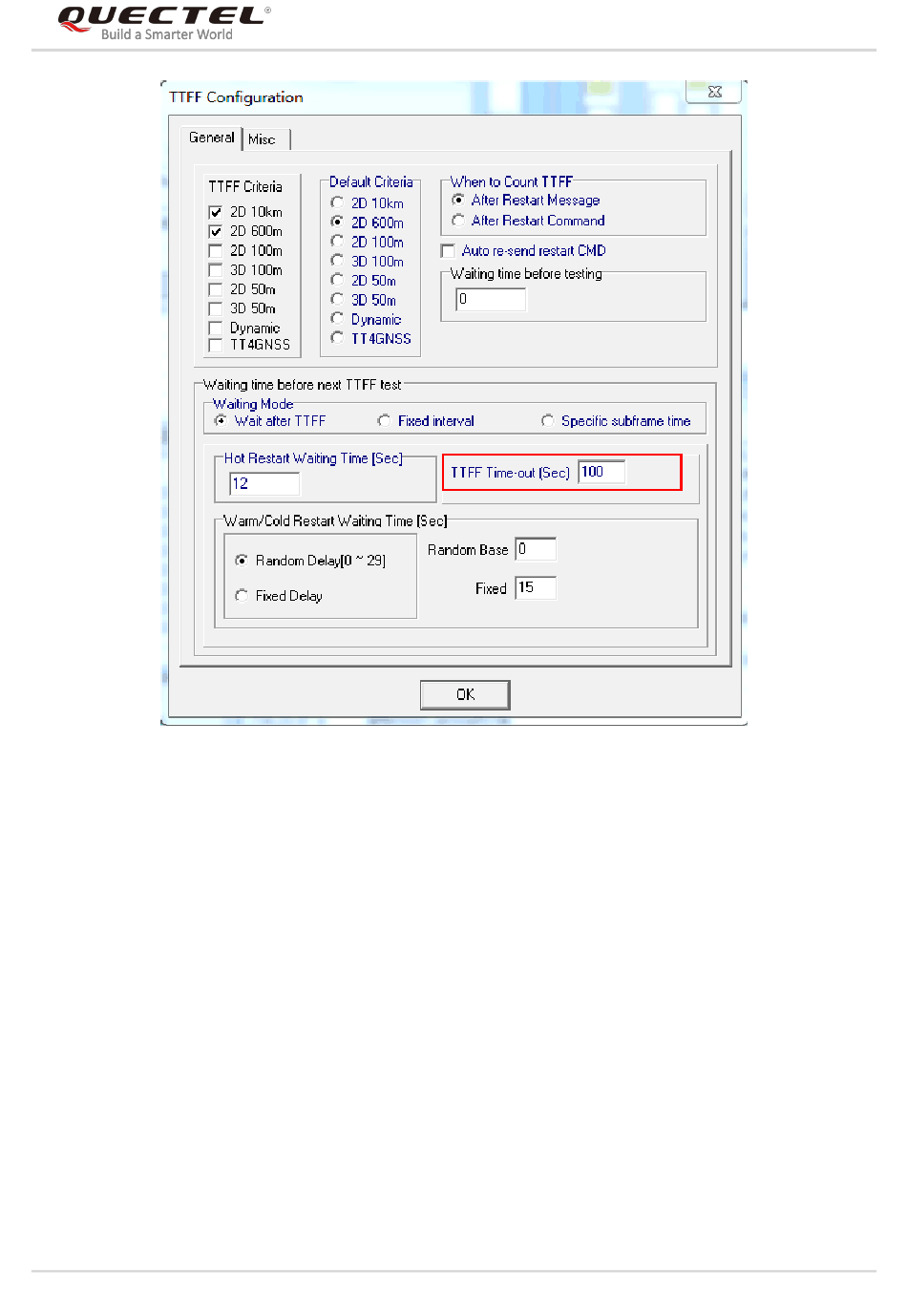

Figure 20: Set TTFF Time-out (Sec)
Generally, if hot start is selected, "TTFF Time-out (sec)" is recommended to be set as 10 s. If warm start
is selected, it can be set as 50 s. If cold start is selected, it can be set as 100 s. "TTFF Time–out (sec)"
can help judge TTFF and save time.
Step 4: After all above operations, click the "Run" button to start the test and it can be stopped by
clicking "Stop" button.
L26-LB_EVB_User_Guide
25 / 28
