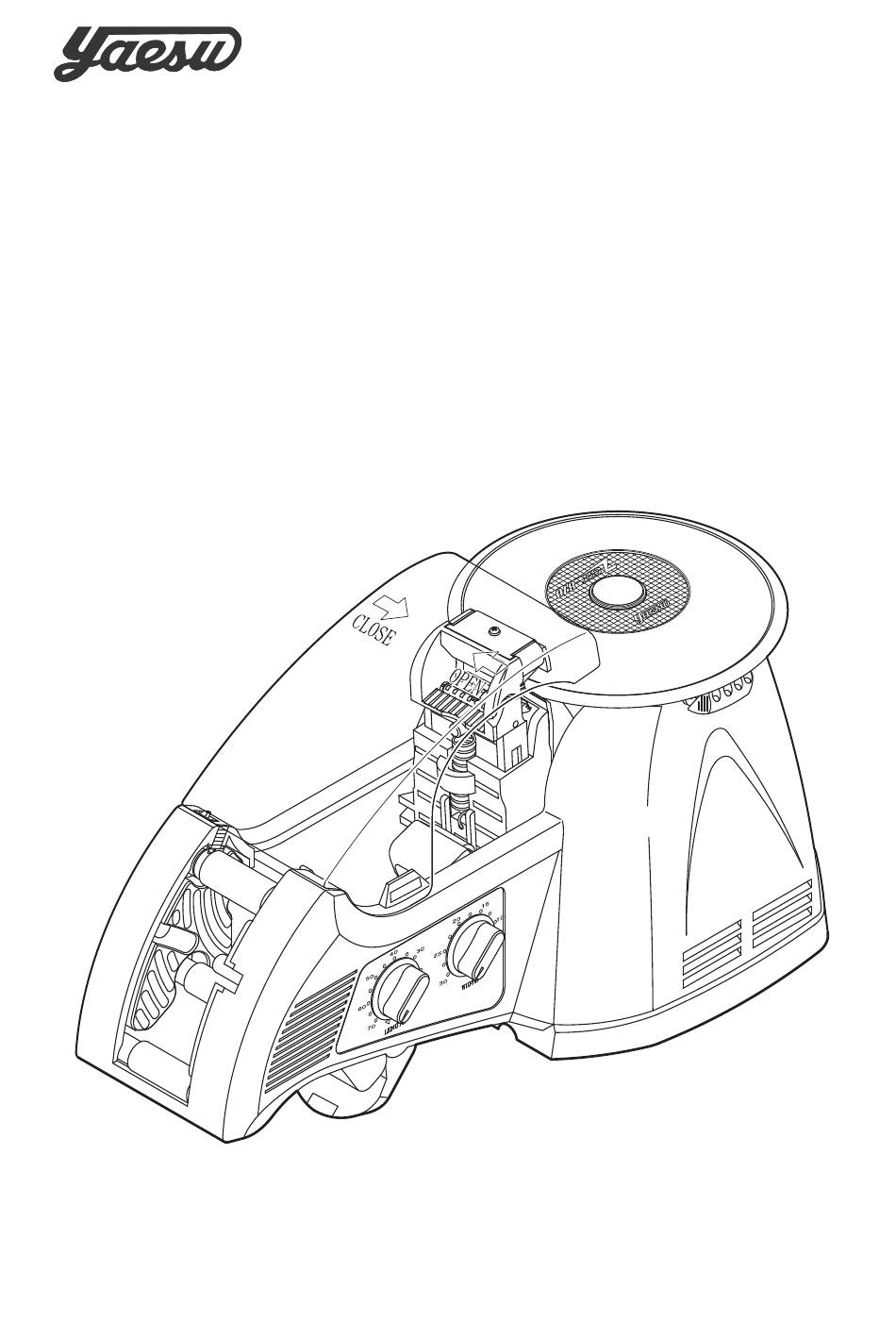

- Page 1 AUTO TAPE DISPENSER ZCUT-870 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents

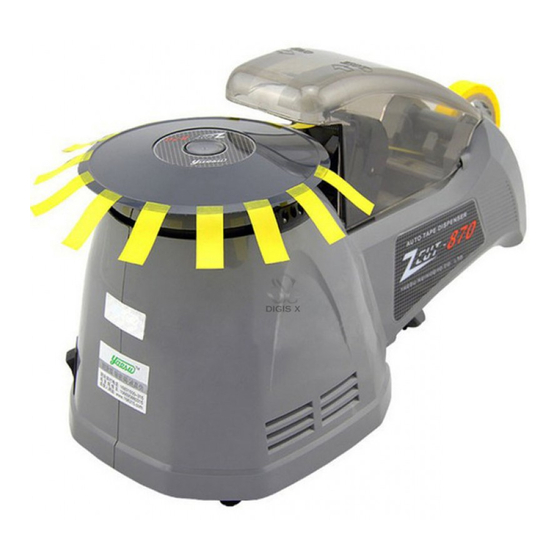

Before Use Thank you for buying Auto Tape Dispenser model ZCUT-870. ZCUT-870 is a compact, unique feeding system which allows to many kinds of tape, includes minimum size of thin tapes. Please read this Instruction Manual carefully. For your safety, please keep this Instruction Manual for reference, retraining and trouble shooting. -
Page 3: Safety Instructions
Safety Instructions The safety guidelines in this Instruction Manual must be observed in order to prevent damage to the machine or injury to the operator or other person. The safety guidelines prescribed "Warning " and "Caution" describe possib- le injury or damage that may be suffered from operating or maintaining the machine in a manner other than as described in this Instruction Manual. - Page 4 Warning Do not plug in, unplug the cord, or operate the machine with wet hands. Failure to observe this may result in injury due to electric shocks. Never insert your finger, or any other body part, or any foreign object into the machine. Failure to observe this may result in injury.
- Page 5 Caution Do not expose the machine to water or other liquids. Do not install or use the machine where it may come into contact with water or other liquids. Exposure to water or other liquid cam cause injury due to electric shock, or failure of the machine.
-
Page 6: Identification Of Parts
I dentif ication of P arts Cutter Blade Arm Power Switch Lower Blade Stopper Start Button Upper Blade Turn Table Safety Cover Release Button Movable Sensor Roller Lock Lever Brake Roller Tape Holder Lower Blade Slit Cut-Piece Spacing Knob Tape Holder Adjustment Lever Length Adjustment Knob Support Stand Fuse Holder... -
Page 7: Loading The Tape
Loading the Tape WARNING: Whenever you set Start Button the tape, do not touch the UPPER and LOWER BLADES. Make sure to turn the POWER SWITCH off, and according to Instruction Manual when you set the tape. Tape Holder Adjustment Lever ■Make sure the SUPPORT STAND in use. -
Page 8: Setting The Tape Length And Cut-Piece Spacing
S etting the T ape Length and C u t- P iece S pacing Cut-Piece Spacing Knob You can adjust the length and cut-piece spacing Length Adjustment Knob whether Z CUT-87 0 is "ON" or "OFF". ■Turn the LENGTH ADJUSTMENT KNOB to the desired tape length. (The number which is pointed in approx imate Millimeter.) (The actual length differs from the shown length depends on the type of tape and its condition.) - Page 9 ■When the tape reach over the MOVABLE SENSOR, the machine will stop cutting. PRESET MODE ZCUT-870 is able to be programmed. ■Turn the POWER SWITCH off. ■During pressing the START BUTTON, turn the POWER SWITCH on in a same time.
-
Page 10: Dealing With Curling Tape
When performing any maintenance, make sure ZCUT-870 is "OFF". ■If you have been using ZCUT-870 for a long time, tape residue starts to stick on the blades, and it becomes harder to cut. Remove tape residue with alcohol. ■Check the screw of UPPER BLADE regularly. -
Page 11: Replacing The Upper And Lower Blades
Replacing the Upper and Lower Blades The blades are consumable, and they will eventually Lower Blade Upper Blade worn out. Screw If it happens, please replace a new one. The staying power of blades are based on the tape's quality, material, thickness which you are using. WARNING: The blades are very sharp. -
Page 12: Specifications
Some types of tape available with the machine may not be cut depending upon conditions. Warranty All parts on ZCUT-870 auto tape dispenser against defects in design, materials, and workmanship are under warranty for a period of 180 days. Parts excluded from the above mentioned is cutting blades, as these part is considered as a "wear parts".
