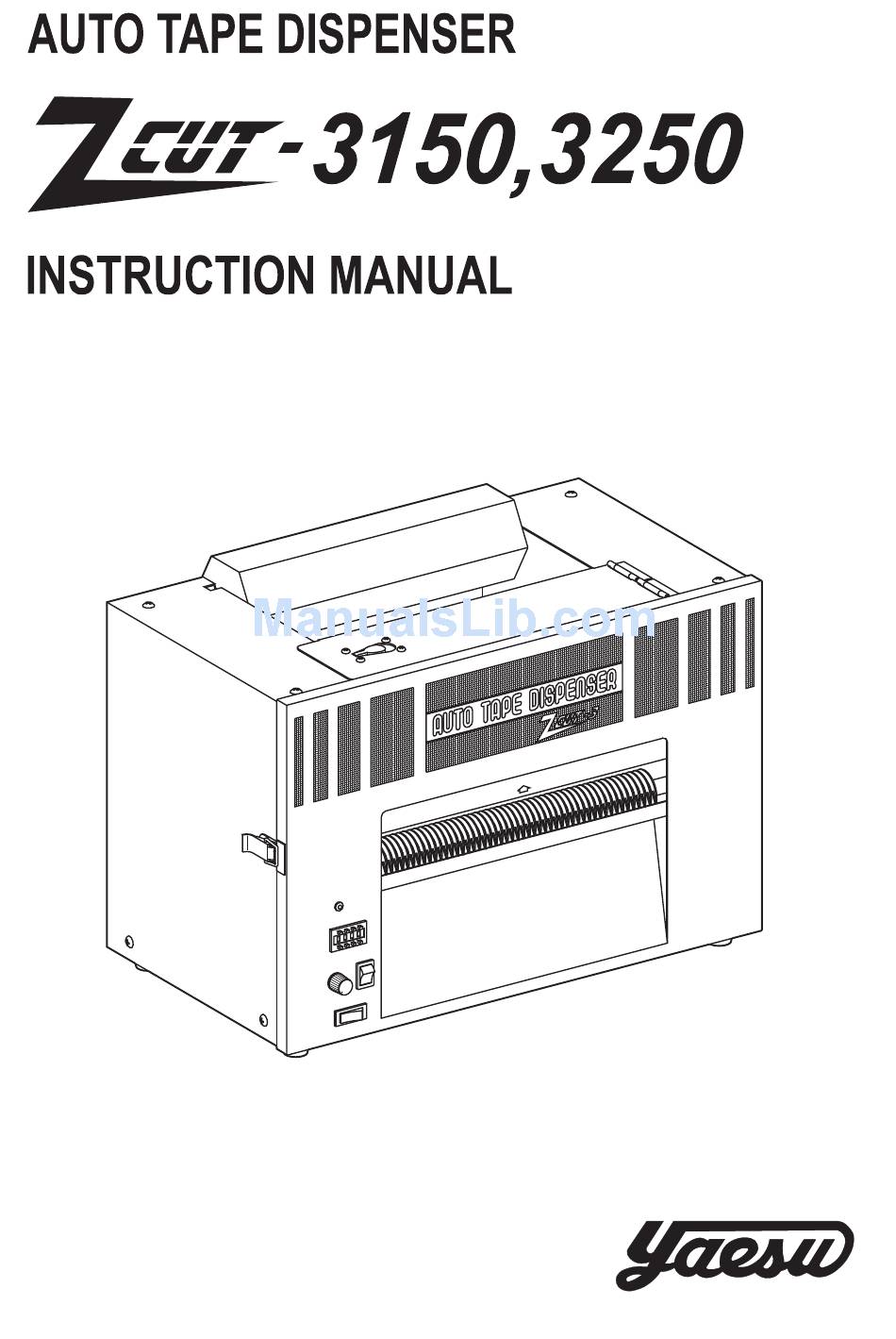

- Page 1 YAESU KEIKOGYO CO., LTD.
-
Page 2: Identification Of Parts
IDENTIFICATION OF PARTS ② ① TAPE (not include) 1. POWER SWITCH 2.TAPE LENGTH COUNTER 3. AUTO / MANUAL SWITCH 4. INTERVAL ADJUSTMENT KNOB 5. OVER LOAD ALARM LAMP 6. PANEL SWITCH 7. SAFETY LID 8. HOOK 9. TAPE OUTLET 10. FRONT PANEL HOOK 11. -
Page 3: Before Use
INTRODUCTION Thank you for purchasing our Automatic Tape Dispenser. Our product is produced for industrial use. Please read this Instruction Manual careflly and become familier with machine before handling it. BEFORE USE 1) Before you plug in the cord, make sure that the Power Switch 1 is off. 2) Set the Tape Length Counter 2 for more than 200mm. -
Page 4: Safety Switch
MANUAL 1) Set Manual/mode to cut a tape one by one. 2) Switch on by pressing the Start button. 3) In the case of cutting any longer than 120mm, it is effective to lift a tape up while taking a tape. Then next piece of tape will come out like automatically. -
Page 5: Maintenance
MAINTENANCE 1) Please make sure that switch is turned off and Power Cord is unplugged. 2) Use neutral detergent and clean up rollers and other spare parts. Do not use thinners, benzine, and any kind of alcoholic oil. 3) Normally, it is not necessary to put any oil to Solenoid and any other main parts. However, please put some oil on the parts of blade cutter as depends on the condition. -
Page 6: Troubleshooting
If feeding roller is turning and tape doesn't come out, please Confirm whether feeding roller is turning contact our agent or manufacturer If checking all things as mentioned above and still having a problem, please contact your supplier or YAESU JAPAN... -
Page 7: Specifications
50/60Hz 120VAC 50/60Hz 600W 220-240VAC 50/60Hz DIMENSIONS 330 (W) X 290 (H) X 250 (D) mm (ZCUT-3150) 430 (W) X 290 (H) X 250 (D) mm (ZCUT-3250) WEIGHT 16 KGS. (ZCUT-3150) 18 KGS. (ZCUT-3250) TAPE SPEED 132mm/sec 50Hz 160mm/sec 60Hz... - Page 8 YAESU KEIKOGYO CO., LTD. 39-8, Senju Motomachi, Adachi-Ku, Tokyo, 120-0041, Japan Phone 81-3-3888-8751 81-3-3888-1592 PLEASE VISIT OUR WEB SITE http://www.yaesu1965.com/ 14K17...
