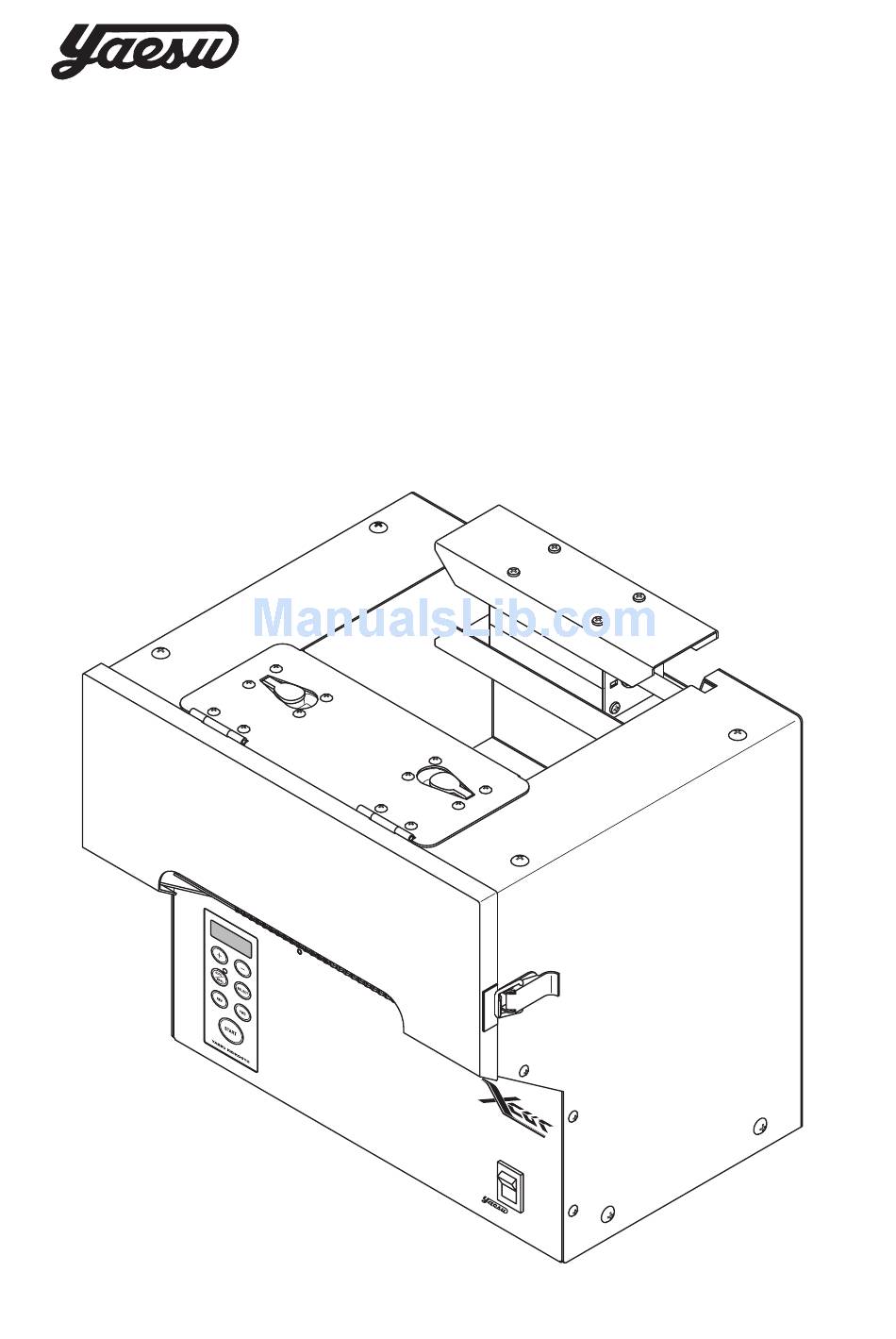

- Page 1 AUTO TAPE DISPENSER XCUT-150 INSTRUCTION MANUAL...
-
Page 2: Please Read Before Use
Please read before use Thank you very much for purchasing our tape dispenser XCUT-150. This machine is composed of Scissor Cut mechanism for the wide tape width. High speed tool steel is used in the cutter blade which makes cutting stable and life time longer. Moreover, it is possible to set 7 different cutting length and to improve the productivity and efficiency. -
Page 3: Safety Instructions
Safety Instructions The safety guidelines in this Instruction Manual must be observed in order to prevent damage to the machine or injury to the operator or other persons. The safety guidelines presciribed "Warning " and "Caution" describe possible injury or damage that may be suffered from operating or maintaining the machine in a manner other than as described in this Instruction Manual. - Page 4 Warning Do not plug in, unplug the cord, or operate the machine with wet hands. Failure to observe this may result in injury due to electric shock. Never insert your finger, or any other body part, or any foreign object into the machine. Failure to observe this may result in injury.
-
Page 5: Identification Of Parts
Identification Of Parts Roller #1 Bobbin Case Silicon Sponge Roller Tape Guide Fix Screw Tape Guide Front Panel Hook Front Panel Hook Cutter Blade Safety Switch Panel Tape Outlet Front Panel Power Inlet Safety Cover Power Switch Safety Cover Hook Spare Fuse Panel Display Digital Display... - Page 6 Tape Setting ■ Put AC cord into Power Inlet accordingly. Connect to Power Cord ■ Make sure the Power Switch is off then plug into an appropriate grounded AC outlet. AC CORD ■ Turn on Power Switch. INLET ・ When switching on, you will see the setting length as registered before. ・...
-
Page 7: Mode Setting
Set the Tape Length ■ Make sure that cutting length is displayed. Confirm the cutting length ・ Alphabets from A to F show the cutting length in 4 digit. ・ In the case displayed not for cutting length, please press “SELECT BUTTON”... - Page 8 P Mode Operation Preset Mode Confirm the cutting length A buzzer will sound when the number of setting pieces is completed. You can use the mode either MANUAL or AUTO. This setting is 999 pcs maximum. SELECT ■ Press SELECT BUTTON and select the cutting length from A to F and 4 Example of A～F Display:A 100mm...
-
Page 9: Memo Function
MEMO Function While operating, memorize the number of present cutting. Press longer ■ Press AUTO/MANUAL BUTTON longer and display 4 digit. ■ Press ＋BUTTON. ・ Transfer the data for the number of present cutting. ・ The data transferred is not deleted even if switching off. ■... -
Page 10: Troubleshooting
Trouble Shooting ＜Error Messages＞ In the case of buzzer sound during the operation, the following message may display. E-02 Blade is out of Position A signal show that the blade is not installed well or machine stops because of the thickness or hardness of the tape. ・... -
Page 11: Warranty
Warranty We warrant to the original purchaser of the product that will be free form defects in material or workmanship for as long as the original purchaser owns the product, when given normal wear and proper usage. The limited warranty for the machine shall be for a period of 180 days form the date of purchase. - Page 12 YAESU KEIKOGYO CO., LTD. 39-8, Senju Motomachi, Adachi-Ku, Tokyo, 120-0041, Japan Phone 81-3-3888-8751 81-3-3888-1592 PLEASE VISIT OUR WEB SITE http://www.yaesu1965.com/ 15E26...
