Vortice ECODRY Instruction Booklet page 19

ENGLISH
CAUTION: Before installation decide if the cable entry is to be from the rear or the bottom. Follow the
relevant instructions. Do not use the backplate as a guide for drilling.
Positioning

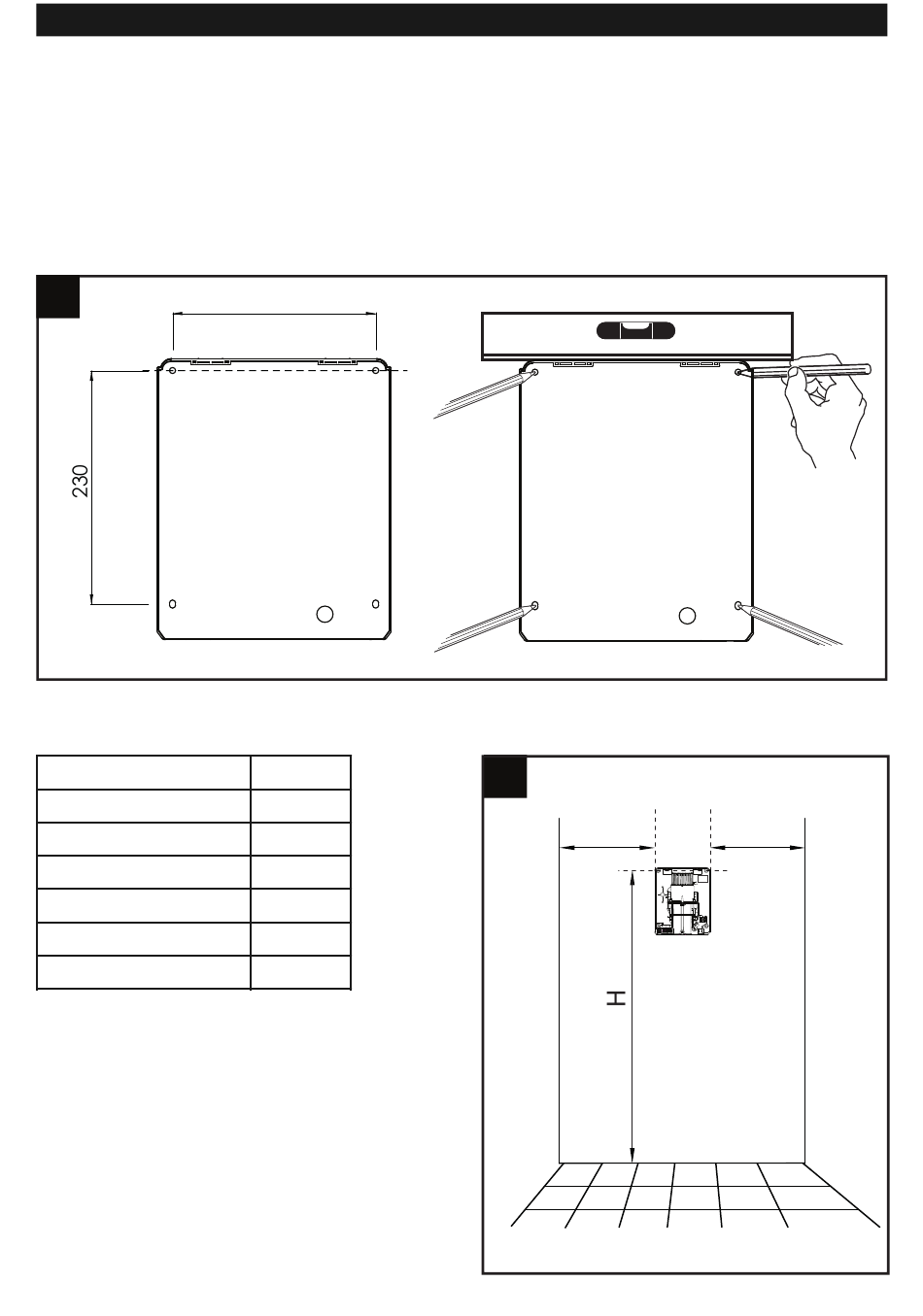

Mark the location on the wall with a pencil. Use the Installation Template to mark the locations for the four fixing
points (fig. 4).
4
Recommended height measurements from the floor to top screws (fig. 4b):
Installation target
Adult male
Adult female
Children 5-8 years old
Children 8-11 years old
Children 11-14 years old
Wheelchair user
200
H
1300mm
1265 mm
928 mm
1028 mm
1108 mm
1050 mm
4b
≥350 mm ≥350 mm
19
