2.12 SYSTEM WIRING

WARNING: Failure to heed the following may result in injury or death.
•
RISK OF ELECTRICAL SHOCK - Disconnect all AC power when installing or
servicing this system. Follow all state, local, and National Electrical Code(s)
(provincial and Canadian Electrical Code(s) if applicable). Use copper conductors
only.
•
RISK OF ELECTRICAL SHOCK - The earth terminals and the equipment bonding
wire must be connected. The electrical supply must match the system rated voltage
and current. Ensure that power is linked to the main pump power source for the pool
to ensure that the AutoPilot
are off.
•
RISK OF ELECTRICAL SHOCK - For ease of service it is recommended that a
manual disconnect box be installed between the electrical service and the system.
Follow the steps below:

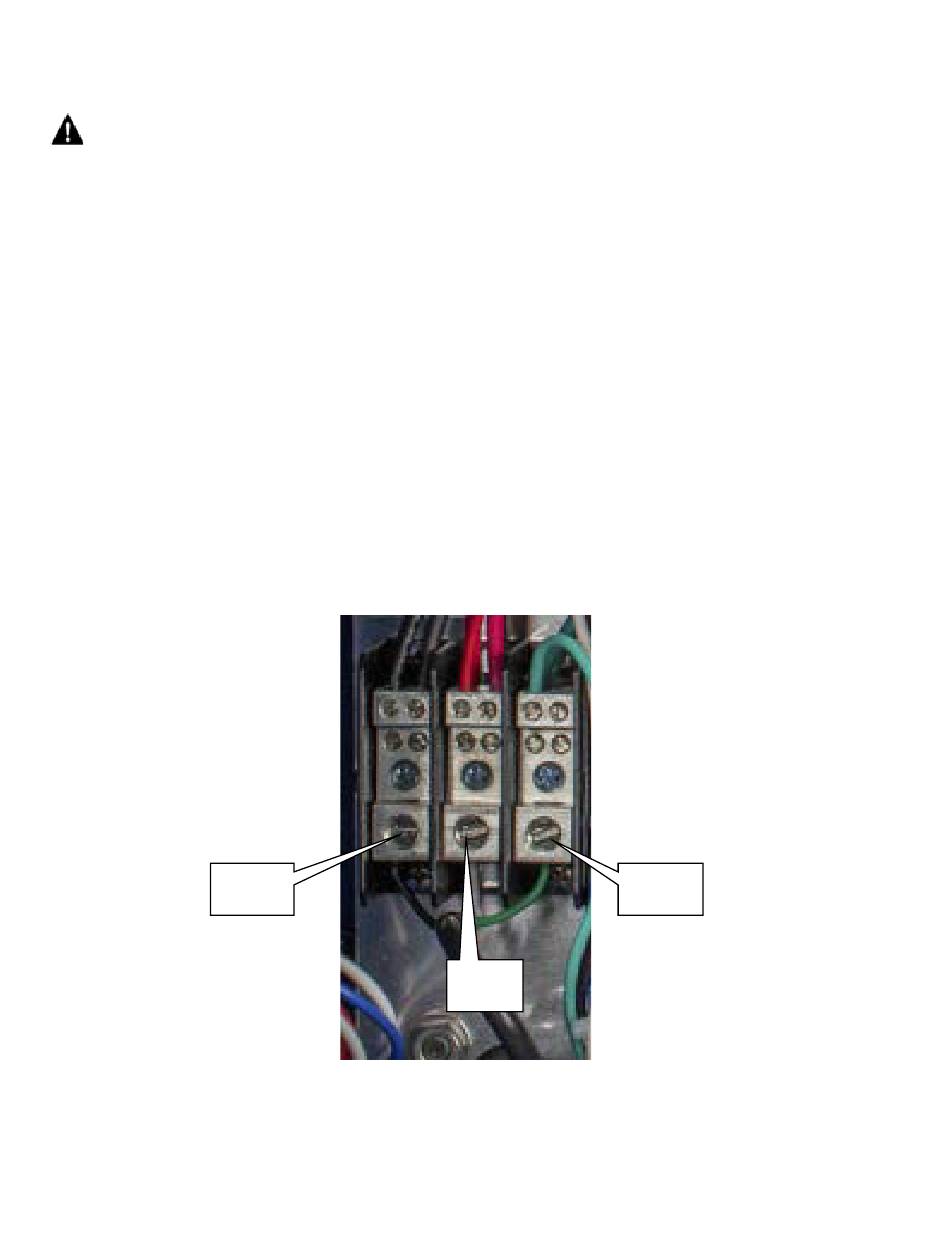

1. Connect the electrical supply from the pool equipment room to the terminal block on
the lower left side of the power supply enclosure. Ensure that the electrical service
is protected by a ground fault circuit interrupter and is rated for the model that is
installed. ProA8-14 models can use 110-240Vac. ProB17-28 models use
208/240Vac. See Electrical Requirements in section 1.3 for details.
Line 1
(Black)
2. Connect the blue control cord to a chemical feed controller or for manual operation,
to a 120 volt AC outlet. When connecting to a chemical feed controller, be sure the
PROA / PROB Manual
®
PRO WC system never operates when the pool pumps
All PROA and PROB Models
Line 2
(Red)
Page 16 of 28
Ground
(Green)
