2.9 INSTALL KIT INSTALLATION

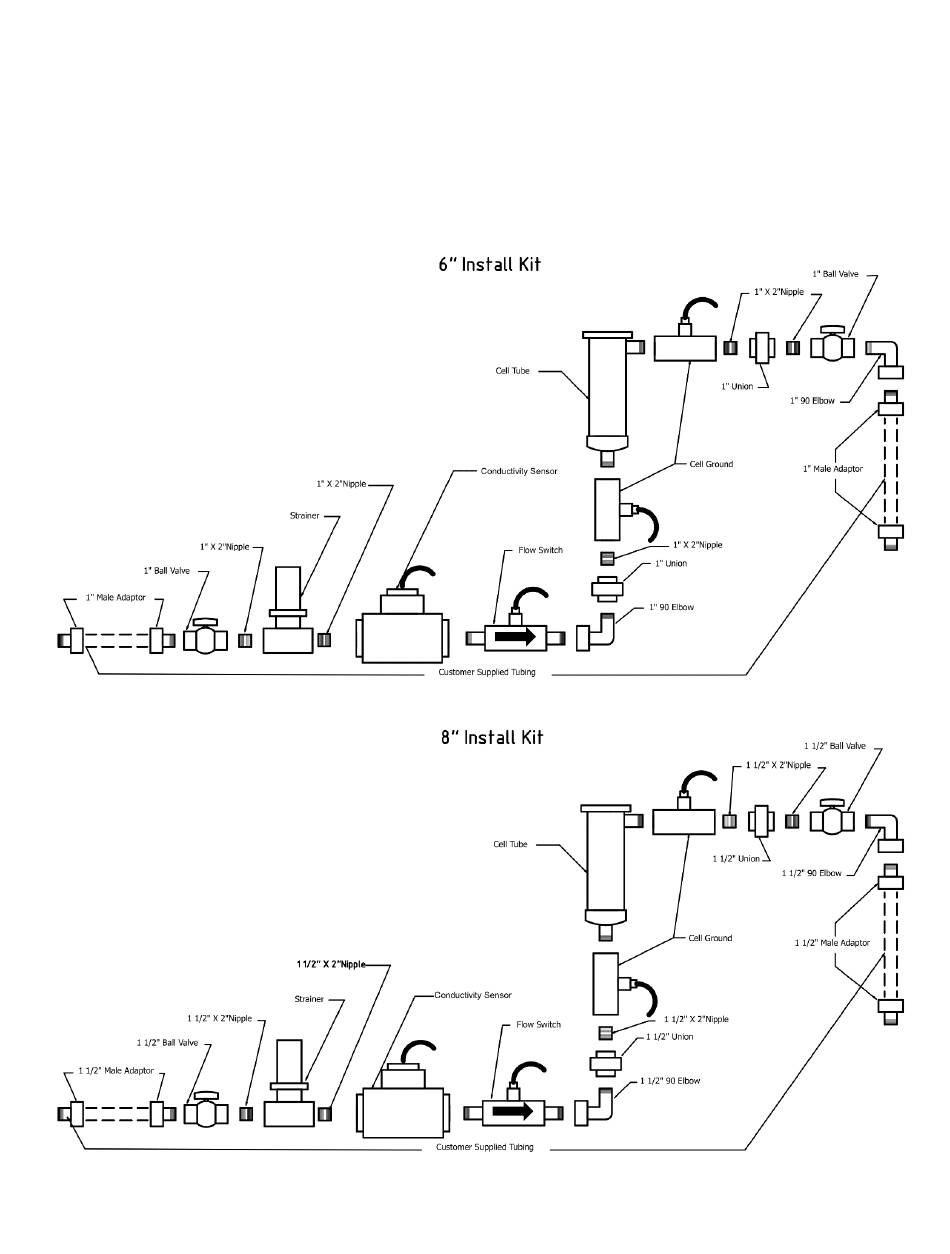

Confirm all parts listed in the installation kit are available. Follow the diagram below when
positioning the parts provided in the installation kit.
NOTE: The flow switch must be installed with the arrow facing the bottom of the cell
tube.
PROA8, PROA11, PROA14, PROB17 Assembly Diagram
PROA / PROB Manual
PROB22 & PROB28 Assembly Diagram
Page 14 of 28
9/24/19
