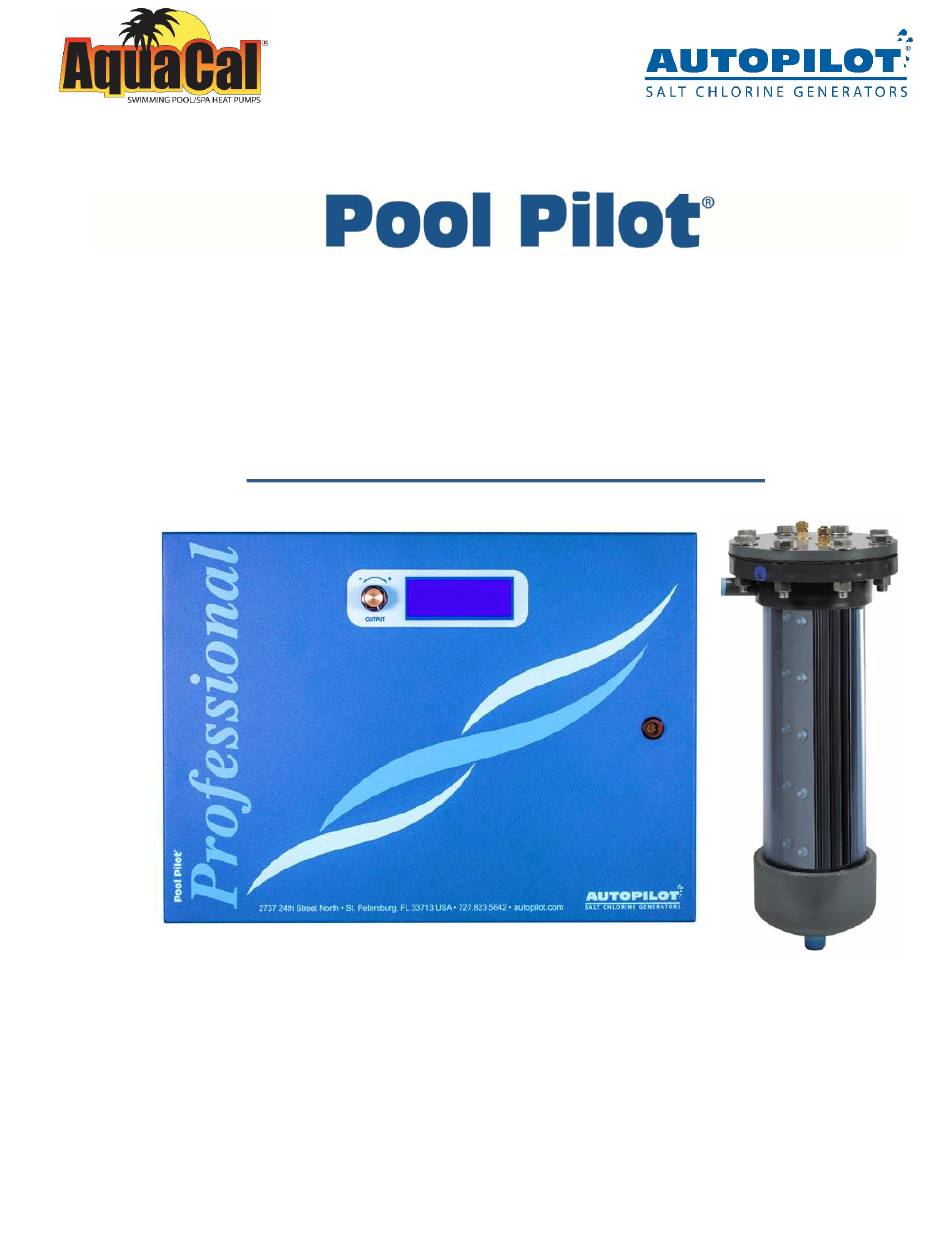

PRO WC
PROA & PROB Water Cooled Series
Swimming Pool Purification System
Owner's Manual: Installation / Operation and Maintenance
®
This manual covers the installation and operation of the AutoPilot
PRO WC Chlorine
Generators
Important!
Read this manual and product labels before installing or operating this equipment.
This document is Purchaser's property and is to remain with the equipment owner.
LTP0155
PROA / PROB Manual
9/24/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pool Pilot PROA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Autopilot Pool Pilot PROA Series

  • Page 1 PROA & PROB Water Cooled Series Swimming Pool Purification System Owner’s Manual: Installation / Operation and Maintenance ® This manual covers the installation and operation of the AutoPilot PRO WC Chlorine Generators Important! Read this manual and product labels before installing or operating this equipment.
  • Page 2 PROA / PROB Manual 9/24/19...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.0 DESCRIPTION General Information Principles of Operation General Specifications and Sizing Guidelines 2.0 INSTALLATION Unpacking Storage Safety Considerations Plan Ahead Additional Parts Required for Installation Installation Diagram Power Supply Installation Electrolytic Cell Installation Install Kit Installation 2.10 Plumbing the System 2.11 Plumbing the Power Supply Cooling Lines 2.12 System Wiring 2.13 Instructions for Adding a Salt Feed Relay...

  • Page 4: General Specifications And Sizing Guidelines

    PROA / PROB Manual 9/24/19...
  • Page 5 If you should need to contact AquaCal AutoPilot, Inc. for questions, service, or parts, please have your model and serial numbers available. Please also have the name of your installer and date of your equipment’s installation. If you have questions, please refer to our website for the latest manual revisions, additional information, and helpful service advice.

  • Page 6: Description

    SECTION 1 DESCRIPTION 1.1 GENERAL INFORMATION ® The AutoPilot PRO WC Water Cooled Series Saline Chlorination system is the most electrically efficient, on-site sodium hypochlorite generator offered by AquaCal AutoPilot, Inc. The system is designed for commercial swimming pool applications and is capable of producing up to 28 lbs.
  • Page 7 208 to 240 50/60 Hz ® The AutoPilot PRO WC systems require a 120 VAC control signal from a chemical feed controller or from a standard 15-amp wall outlet. The control connection is rated at 1-amp. PROA / PROB Manual...
  • Page 8 Space Requirements PROA8, 11, 14 & PROB17 11” 26” (66 cm) (28 cm 6" Cell Tube 6” 15” (15.2 cm) 22” (38.6 cm Cooling Water DC Power to Sensors Lines Cell AC Input PROB22 & PROB28 26” (66 cm) 14” 26”...
  • Page 9 Sizing Guidelines Chlorinator sizing must comply with all state and local codes. Please contact your local health department for specific requirements or contact your local AquaCal AutoPilot, Inc. representative for assistance. Head Loss Data – Cell Only Without Accessory Kit Head loss data reported in feet of H PROA8, 11, 14 &...

  • Page 10: Installation

    Follow all state, local, and National Electrical Code(s) (provincial and Canadian Electrical Code(s) if applicable). Use copper conductors only. • RISK OF ELECTRICAL SHOCK - AutoPilot ® PRO WC systems are intended to be installed according to all local and national regulations.

  • Page 11: Plan Ahead

    Use caution when handling, servicing, or operating the equipment. Do not energize or operate the system if the cell housing is damaged or improperly assembled. • PERSONAL SAFETY HAZARD – Do not allow children to operate the AutoPilot ® PRO WC system.

  • Page 12: Installation Diagram

    2.6 INSTALLATION DIAGRAM Rated (See Table) PROA / PROB Manual Page 12 of 28 9/24/19...

  • Page 13: Power Supply Installation

    • ® RISK OF ELECTRICAL SHOCK - The AutoPilot PRO WC system must be mounted a minimum of 5 ft. (1.5 m) from the pool. CAUTION: Failure to heed the following may result in personal injury or equipment damage.

  • Page 14: Install Kit Installation

    2.9 INSTALL KIT INSTALLATION Confirm all parts listed in the installation kit are available. Follow the diagram below when positioning the parts provided in the installation kit. NOTE: The flow switch must be installed with the arrow facing the bottom of the cell tube.

  • Page 15: Plumbing The System

    2.10 PLUMBING THE SYSTEM ® AutoPilot PRO WC systems require a minimum of 20 gpm of flow through the electrolytic cell to achieve the rated production of chlorine. The cell housing is plumbed using a bypass to achieve the 20 gpm of flow required. The cell return line must be installed after all other components.

  • Page 16: System Wiring

    The electrical supply must match the system rated voltage and current. Ensure that power is linked to the main pump power source for the pool ® to ensure that the AutoPilot PRO WC system never operates when the pool pumps are off.

  • Page 17: Instructions For Adding A Salt Feed Relay

    2.15 BONDING THE SYSTEM ® All AutoPilot PRO WC systems include cell-bonding assemblies. These assemblies are included in the install kit. The bonding assemblies must be connected with a minimum #8 AWG bonding wire. Connect the bonding wire from the top cell grounding assembly to the bottom cell grounding assembly and then from the bottom cell grounding assembly to the bonding lug located on the outside of the power supply.

  • Page 18: Operation

    Never leave large amounts of salt on the surface of the pool. Use only pure NaCl. Do not use salt with additives. Contact your dealer or AquaCal AutoPilot, Inc. for a list of approved salt.

  • Page 19: System Operation

    7. Depending on the model, the system will begin producing chlorine in 10 to 60 seconds. If the AutoPilot® PRO WC system is linked to a chemical feed controller, adjust the output to the system maximum, which will allow for full production every time the controller calls for it. If the system is being operated manually, adjust the system to find the point at which chlorine levels are maintained to the desired level.
  • Page 20 The screen below is displayed when the system detects no flow through the electrolytic cell housing. This condition will stop the system from generating chorine. Once flow is restored, the system will start automatically, and this screen will no longer be active. This screen is displayed if a low salt condition is present.
  • Page 21 The screen below indicates a disconnected or defective salt sensor. This screen will shut the system output off. Reconnect or replace the salt sensor to restore system operation. In order to prevent the system from being cycled on and off rapidly, the system has start delay of 60 seconds.
  • Page 22 Daily system run time can be viewed by pressing and holding the “A” button on the microcontroller for 5 seconds. This system is capable of controlling the salt concentration of the pool with the addition of an external relay (see saturated salt feeder system). The factory set point for salt is 5,000 ppm. The salt set point can be adjusted to any value between 3,000 and 7,000 ppm.

  • Page 23: Maintenance

    SECTION 4 MAINTENANCE ® AutoPilot PRO WC systems are designed to operate 24 hours a day and 7 days a week at maximum production rates and will give you years of trouble-free use if you follow these basic maintenance and cleaning instructions.

  • Page 24: Acid Wash Operation

    This electrode stack is in excellent A cell stack with calcium condition and does not require bridged plates. cleaning Clean the cell when calcium buildup is present. WARNING: Failure to heed the following may result in permanent injury or death. •...
  • Page 25 Visually inspect the power supply once every month. Open the enclosure and visually check for any abnormal conditions such as burned wires, loose connections, or corrosion. Operate the system to verify performance once every month. 1. Turn the system on. 2.

  • Page 26: Warranty Information

    AutoPilot accepts no responsibility and is not liable ® for any extended warranties or variations to this warranty offered by re-sellers of AutoPilot PRO WC systems. PROA / PROB Manual Page 26 of 28...
  • Page 27 Warranty Registration Card Please complete and return to activate the AquaCal AutoPilot, nc. warranty Please mail or fax to AquaCal AutoPilot, nc. 2737 24 St North, St. Petersburg, FL 33713 Fax: (877).408.8142 Dealer Name: _______________________________________________________ Address: _________________________________City:__________________ State: ______________________Zip: ___________ Tel:_____________________...
  • Page 28 AquaCal AutoPilot, Inc. 2737 24 Street North St. Petersburg, FL 33713 (727) 823-5642 PROA / PROB Manual Page 28 of 28 9/24/19...
