SAFETY NOTES

1 Safety notes
2

Correct use

3

Commissioning

4
Read the operating instructions before commissioning.
■
Connection, mounting, and setting may only be performed by trained specialists.
■
Not a safety component in accordance with the EU Machinery Directive.
■
UL: Only for use in applications in accordance with NFPA 79. These devices shall
■
be protected by a 1 A fuse suitable for 30 V DC. Adapters listed by UL with connec‐
tion cables are available.
When commissioning, protect the device from moisture and contamination.
■
These operating instructions contain information required during the life cycle of
■
the sensor.
LASER CLASS 1
Laser
1
EN/IEC 60825-1:2014
IEC60825-1:2007
Maximum pulse power < 250 mW
Puls length: 4 ns
Wavelength: 658 nm
Complies with 21 CFR 1040.10
and 1040.11 except for deviations
pursuant to Laser Notice No. 50,
dated June 24, 2007
ATTENTION
WARNING: Interruption, manipulation or incorrect use can lead to hazardous exposure
due to laser radiation.
The WTT12L is an opto-electronic photoelectric proximity sensor (referred to as "sensor"
in the following) for the optical, non-contact detection of objects. If the product is used
for any other purpose or modified in any way, any warranty claim against SICK AG shall
become void.

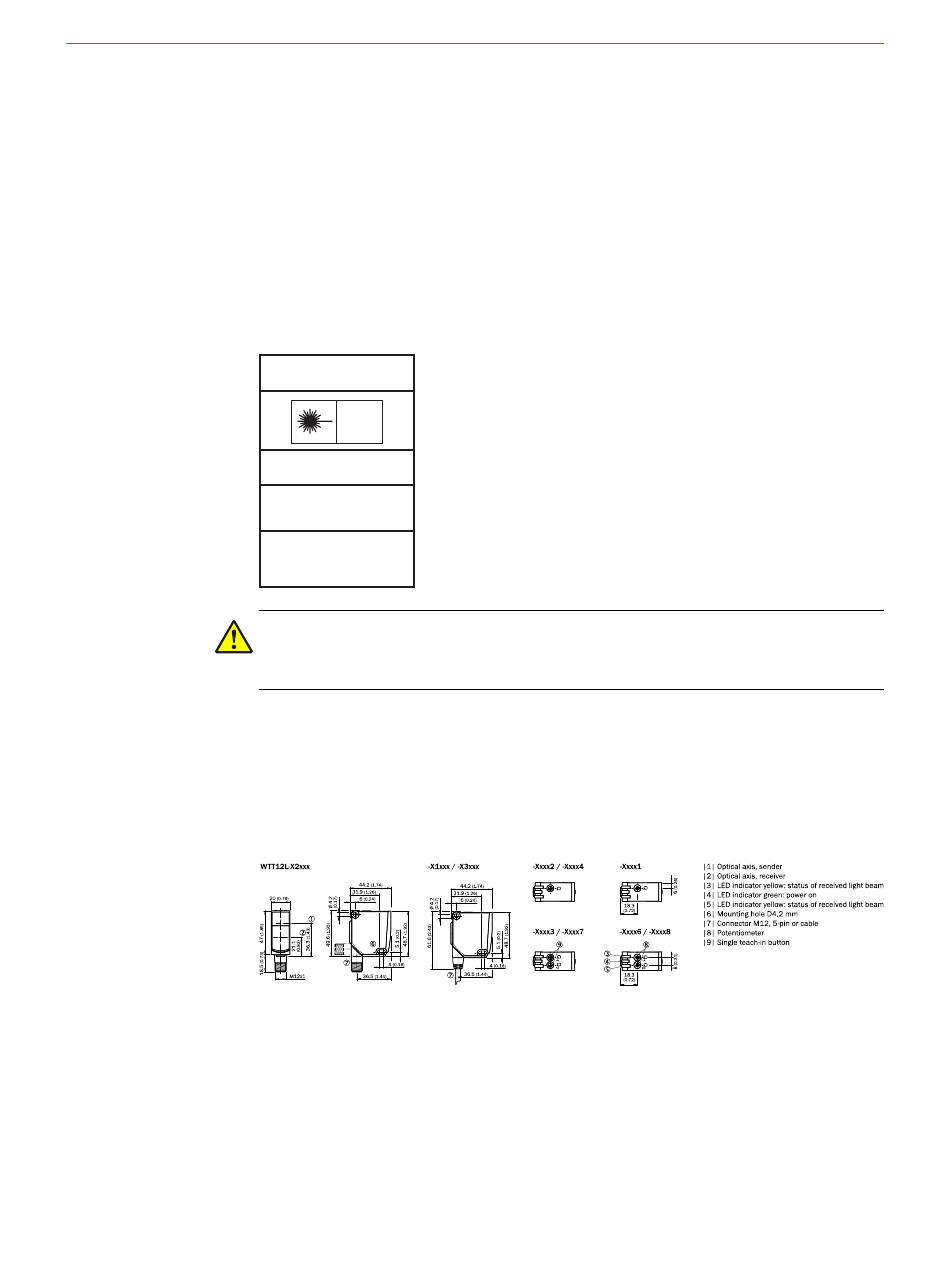

Figure: A
1 Check the application conditions: Adjust the sensing range and distance to the object or
background and the remission capability of the object according to the corresponding dia‐
gram [H] (x = sensing range, y = minimum distance between the object and background in
mm (object remission/background remission) (remission: 6% = black, 90% = white (based
on standard white DIN 5033))).
The minimum distance (= y) for background suppression can be read from diagram [H 1]
as follows:
