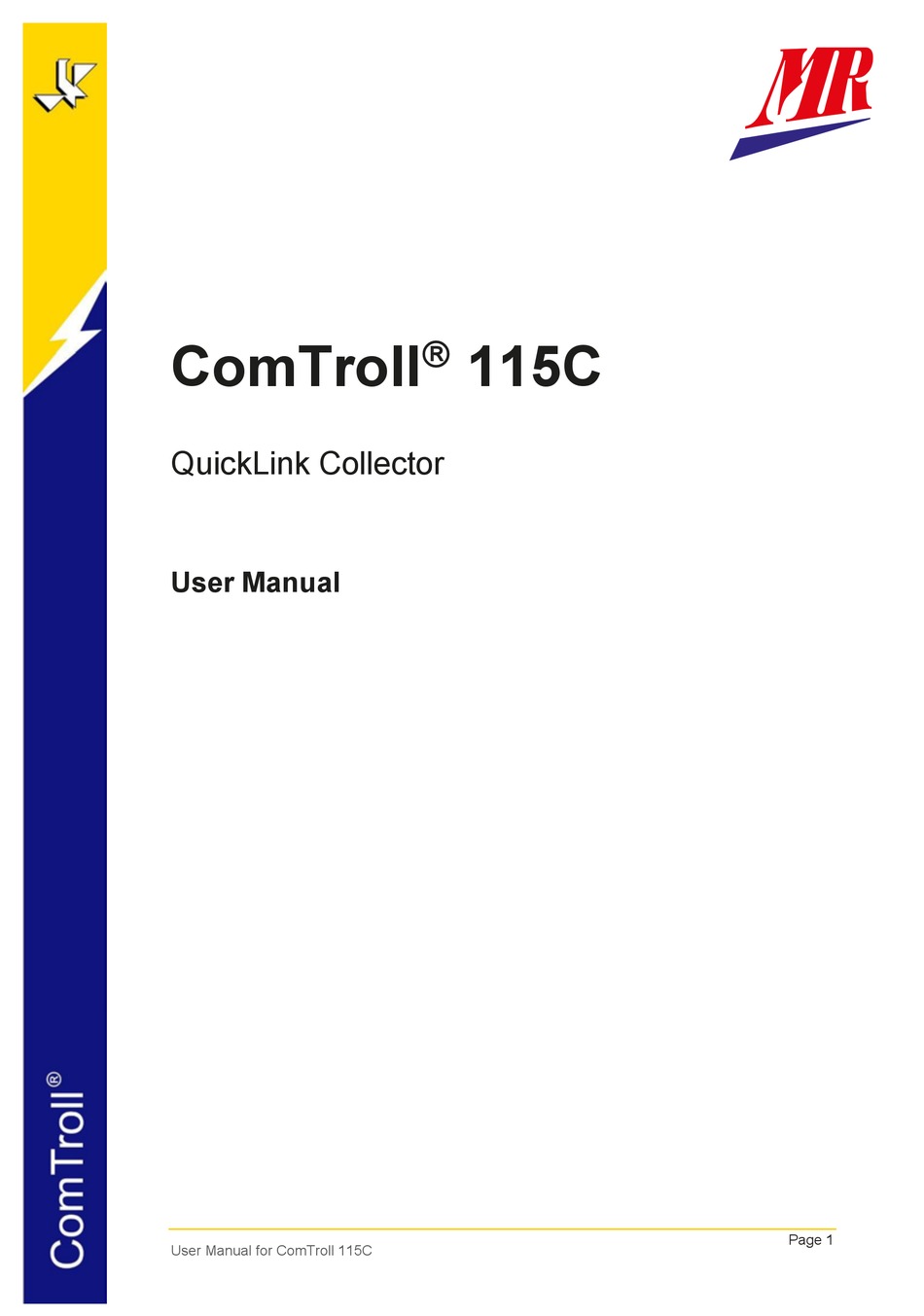

- Page 1 ComTroll 115C QuickLink Collector User Manual Page 1 User Manual for ComTroll 115C...
- Page 2 This document describes the Installation, configuration and use of ComTroll 115C Quick Link Collector This manual is intended to be read in conjunction with the User Manual for the LineTroll 110Eµr/110Tµr which forms an integral part of an operational QuickLink system Copyright ...
-
Page 3: Table Of Contents
For LineTroll 110Tur: ........................12 3.4 I ..............12 NDICATION OF PERMANENT OR TRANSIENT FAULTS 4. INSTALLATION ..................13 4.1 L 110E ....................... 13 ROLL µR µR 4.2 A ............................13 NTENNA 4. TECHNICAL DATA ..................15 Page 3 User Manual for ComTroll 115C... -
Page 4: The Quick Link System
30m line-of-sight. One ComTroll 115C can host up to 9 fault indicators. LineTroll 110Eur/-Tur is a phase mounted fault indicator and one indicator per phase is required to detect all type of faults. -
Page 5: Setting Up The System
2. Setting up the system The ComTroll 115C will automatically configure itself for point-to-point (PtP) or point-to- multipoint (PtM) operation based on the address setting. When using PtP mode it is important to make sure that each individual location does not have radio coverage from a nearby installation of fault indicators using the QuickLink system. -
Page 6: Point To Multipoint (Ptm)
2.2 Point to Multipoint (PtM) PtP mode is used in branch points where one ComTroll 115C shall monitor more than three LineTroll 110Eur/LineTroll 110Tur indicators. This mode can also be used where two or three feeders run in the same pole or in parallel. -
Page 7: Sw2 On Comtroll 115C
FEEDER 1 ComTroll 115C FEEDER 2 The ADDRESS switch on the ComTroll 115C must be set to 6 as 6 separate indicators are using the same collector. See also section 2.3 about address setting. 2.3 Sw2 on ComTroll 115C The DIP-switch 2 is only used for setting up parameters in the LineTroll 110Eur/-Tur. See separate section for remote programming of the indicators. -
Page 8: Led Indications
Reset Remote: Used for test, reset, status check and programming of the Fault indicators. This button is connected in parallel with Terminal 2 in the input connector. Reset Collector: Resets the ComTroll 115C collector unit. Active relay outputs will also be reset. Reset Collector must take place after changing/setting the Address Selector. -
Page 9: Checking The Address Setting
R1, R2 and R3 mean: Relay 1, Relay 2 and Relay 3 on the ComTroll 115C. The rotary switch called ‘ADDRESS’ is used to configure the Collector with the number of indicators connected. Based on the Address switch setting, the ComTroll 115 C will automatically select PtP mode or PtM mode. -
Page 10: Communication Check And Test Of Relay Operation
Please note that DIP8 on the fault indicator must be ON to accept remote uploading from the collector. Press RESET REMOTE for more than 4sec until the Rx/Tx-LED (yellow) and the Running led (green) starts flashing on the Collector. Page 10 User Manual for ComTroll 115C... -
Page 11: Remote Operation From Scada
The user manual for the fault indicator describes in detail the necessary setup of the fault indicator. When doing this setting from the ComTroll 115C the meaning of SW2 on the collector will be the same as for the DIP switch on the indicator except for DIP8. This is not used in the ComTroll 115C. -
Page 12: For Linetroll 110Tur
3.4 Indication of permanent or transient faults The ComTroll 115C collector can be set to indicate permanent- or transient faults. The setting is done by SW2, DIP8. When the switch is OFF, the relay output will be set as soon as the indicator detects a fault, regardless whether the fault is transient or permanent. -
Page 13: Installation
The LineTroll 110Eur /Tur must be set up with operational parameters before installing it in the field. It can also be done remotely from the ComTroll 115C collector after installation on the line, providing DIP8 on the indicator is set to ON. - Page 14 NOTE The maximum distance between the antenna position and any of the fault indicators should not exceed 30 meters. The communication between the ComTroll 115C and all of the indicators should always be checked after the installation. Page 14 User Manual for ComTroll 115C...
-
Page 15: Technical Data
Aluminium Antenna: Moulded rubber Collector: Nylon Operational Temp Range: -40ºC to +70ºC (-40ºF to 158ºF) 90% humidity, non- condensing. Test standards EN 61000-6-3 (2007) EN 61000-6-2 (2005) EN 60255-21-1 (1995) EN 60255-21-2 (1995) Page 15 User Manual for ComTroll 115C...
