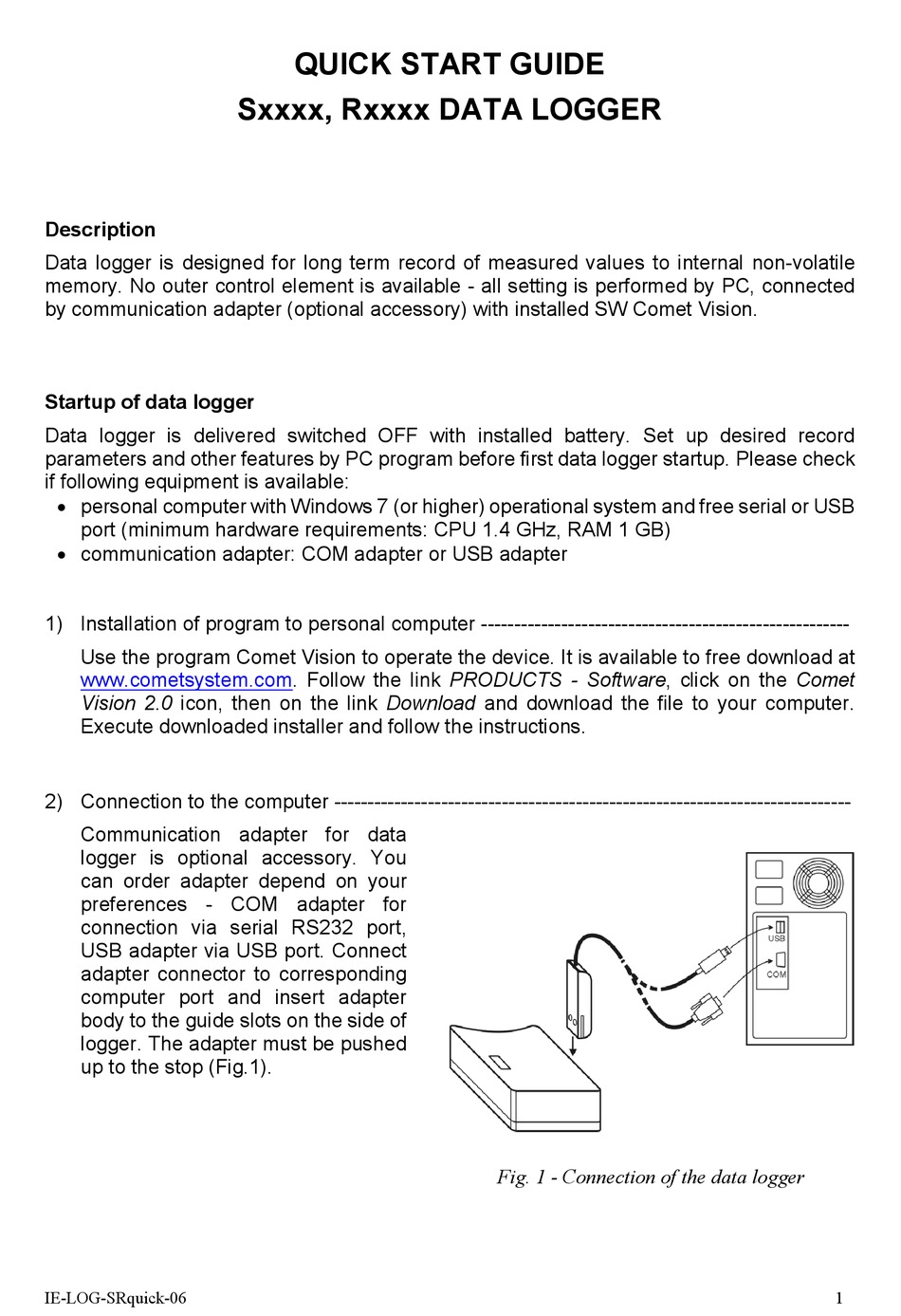

Comet S Series Quick Start Manual

Description

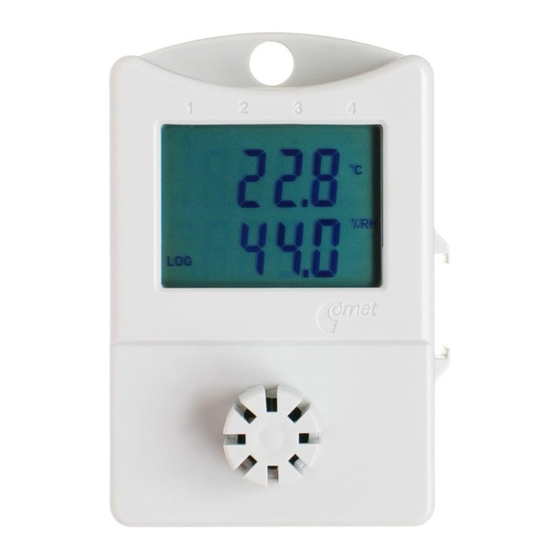

Data logger is designed for long term record of measured values to internal non-volatile
memory. No outer control element is available - all setting is performed by PC, connected
by communication adapter (optional accessory) with installed SW Comet Vision.
Startup of data logger
Data logger is delivered switched OFF with installed battery. Set up desired record
parameters and other features by PC program before first data logger startup. Please check
if following equipment is available:
 personal computer with Windows 7 (or higher) operational system and free serial or USB
port (minimum hardware requirements: CPU 1.4 GHz, RAM 1 GB)
 communication adapter: COM adapter or USB adapter

1) Installation of program to personal computer -------------------------------------------------------

Use the program Comet Vision to operate the device. It is available to free download at
www.cometsystem.com. Follow the link PRODUCTS - Software, click on the Comet
Vision 2.0 icon, then on the link Download and download the file to your computer.
Execute downloaded installer and follow the instructions.

2) Connection to the computer -----------------------------------------------------------------------------

Communication adapter for data
logger is optional accessory. You
can order adapter depend on your
preferences - COM adapter for
connection via serial RS232 port,
USB adapter via USB port. Connect
adapter connector to corresponding
computer port and insert adapter
body to the guide slots on the side of
logger. The adapter must be pushed
up to the stop (Fig.1).
IE-LOG-SRquick-06
QUICK START GUIDE
Sxxxx, Rxxxx DATA LOGGER
Fig. 1 - Connection of the data logger
1
