Digitaler Stellungsregler
Digital positioner
Positionneur digital
Actuator Type REact
Check the resistance in 0% position.
The measured value between the grey and red
wire should be approx. 100[ ±20[
23.

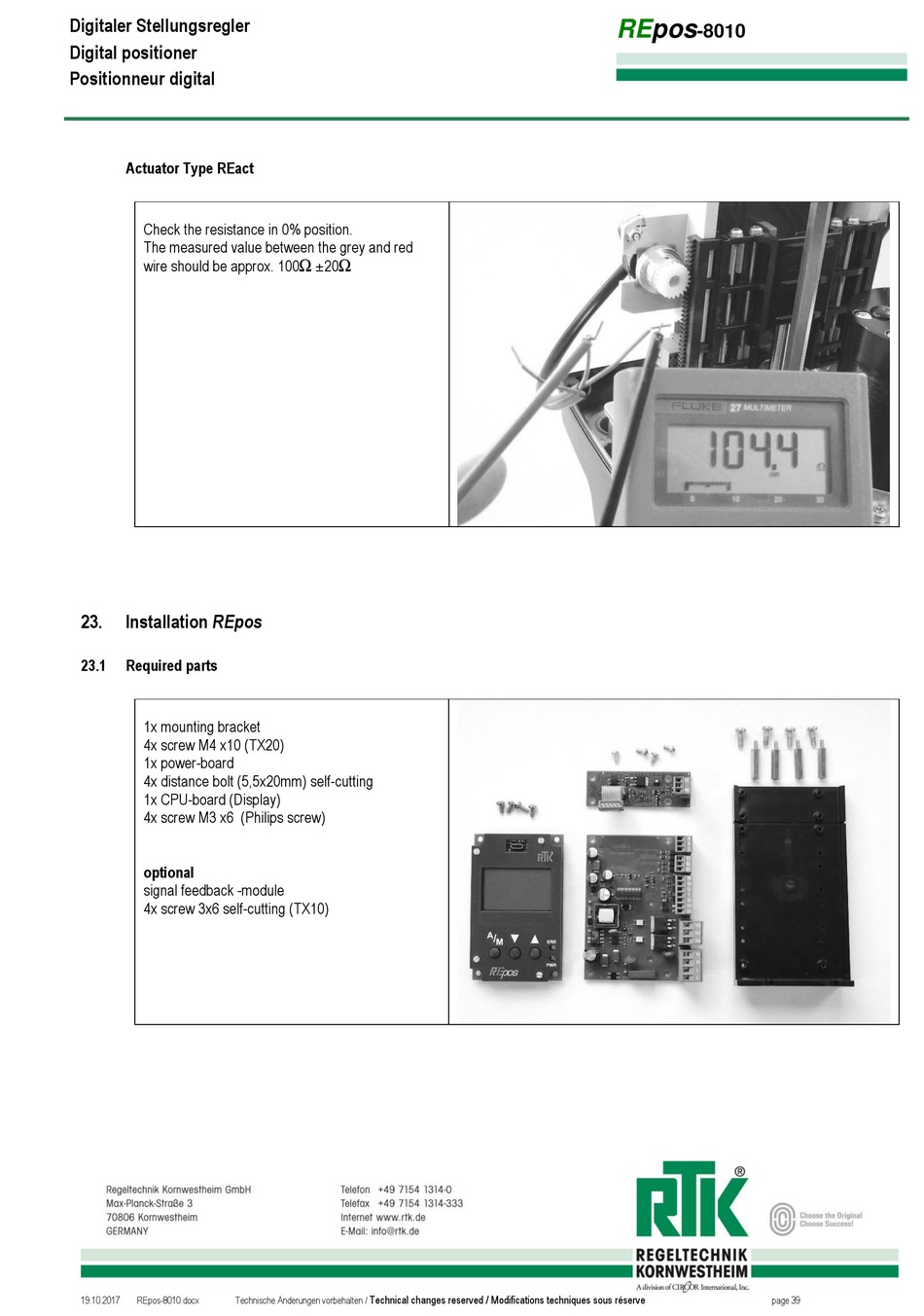

Installation REpos

23.1

Required parts

1x mounting bracket
4x screw M4 x10 (TX20)
1x power-board
4x distance bolt (5,5x20mm) self-cutting
1x CPU-board (Display)
4x screw M3 x6 (Philips screw)
optional
signal feedback -module
4x screw 3x6 self-cutting (TX10)
19.10.2017 REpos-8010.docx Technische Änderungen vorbehalten /
Technical changes reserved / Modifications techniques sous réserve
REpos
-8010
page 39
