Digitaler Stellungsregler
Digital positioner
Positionneur digital
20.

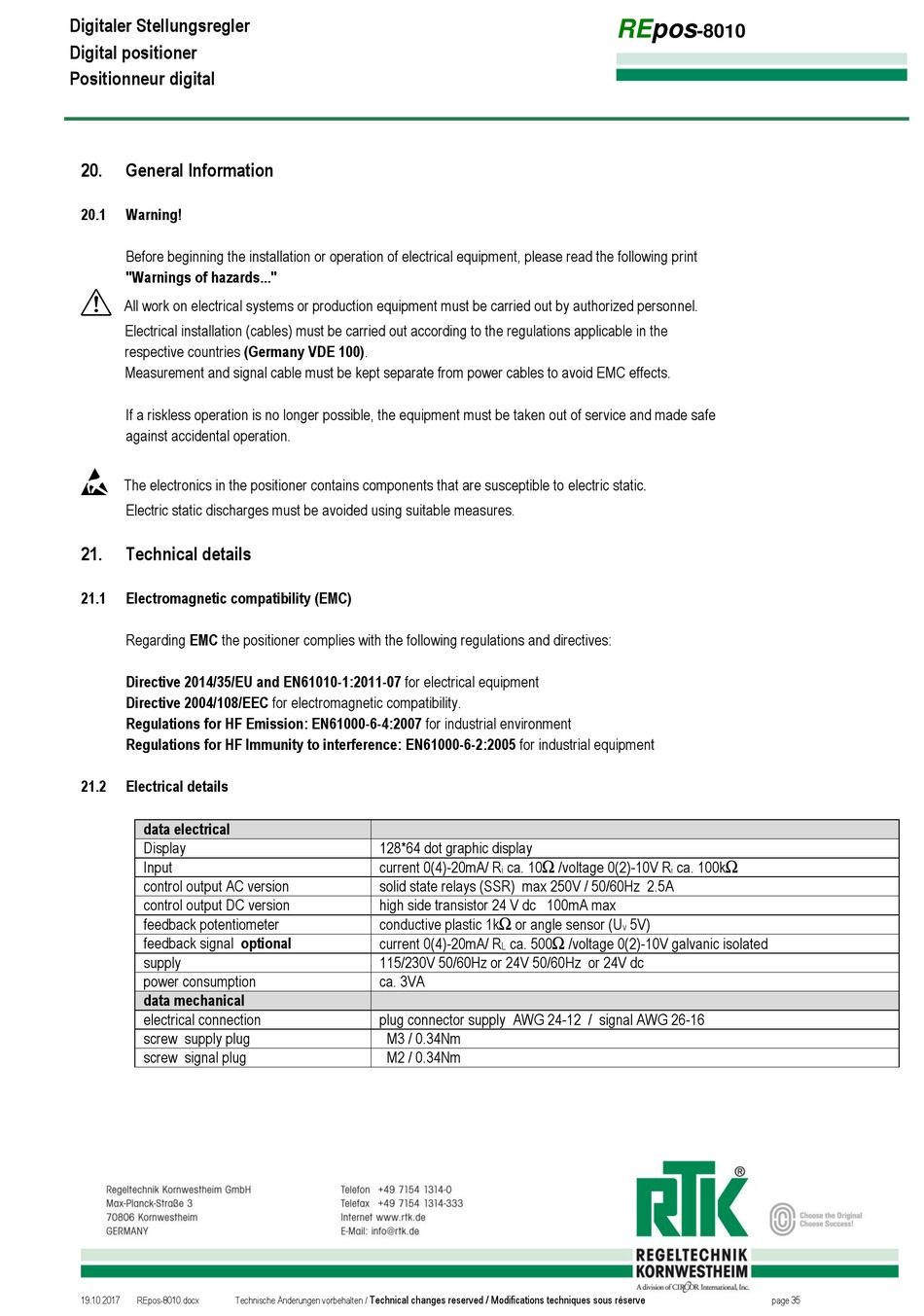

General Information

20.1

Warning!

Before beginning the installation or operation of electrical equipment, please read the following print
"Warnings of hazards..."
"
All work on electrical systems or production equipment must be carried out by authorized personnel.
Electrical installation (cables) must be carried out according to the regulations applicable in the
respective countries (Germany VDE 100).
Measurement and signal cable must be kept separate from power cables to avoid EMC effects.
If a riskless operation is no longer possible, the equipment must be taken out of service and made safe
against accidental operation.
l
The electronics in the positioner contains components that are susceptible to electric static.
Electric static discharges must be avoided using suitable measures.
21.

Technical details

21.1

Electromagnetic compatibility (EMC)

Regarding EMC the positioner complies with the following regulations and directives:
Directive 2014/35/EU and EN61010-1:2011-07 for electrical equipment
Directive 2004/108/EEC for electromagnetic compatibility.
Regulations for HF Emission: EN61000-6-4:2007 for industrial environment
Regulations for HF Immunity to interference: EN61000-6-2:2005 for industrial equipment
21.2

Electrical details

data electrical
Display
Input
control output AC version
control output DC version
feedback potentiometer
feedback signal optional
supply
power consumption
data mechanical
electrical connection
screw supply plug
screw signal plug
19.10.2017 REpos-8010.docx Technische Änderungen vorbehalten /
128*64 dot graphic display
current 0(4)-20mA/ R ca. 10[ /voltage 0(2)-10V R
i
solid state relays (SSR) max 250V / 50/60Hz 2.5A
high side transistor 24 V dc 100mA max
conductive plastic 1k[ or angle sensor (U
current 0(4)-20mA/ R ca. 500[ /voltage 0(2)-10V galvanic isolated
L
115/230V 50/60Hz or 24V 50/60Hz or 24V dc
ca. 3VA
plug connector supply AWG 24-12 / signal AWG 26-16
M3 / 0.34Nm
M2 / 0.34Nm
Technical changes reserved / Modifications techniques sous réserve
REpos
-8010
ca. 100k[
i
5V)
v
page 35
