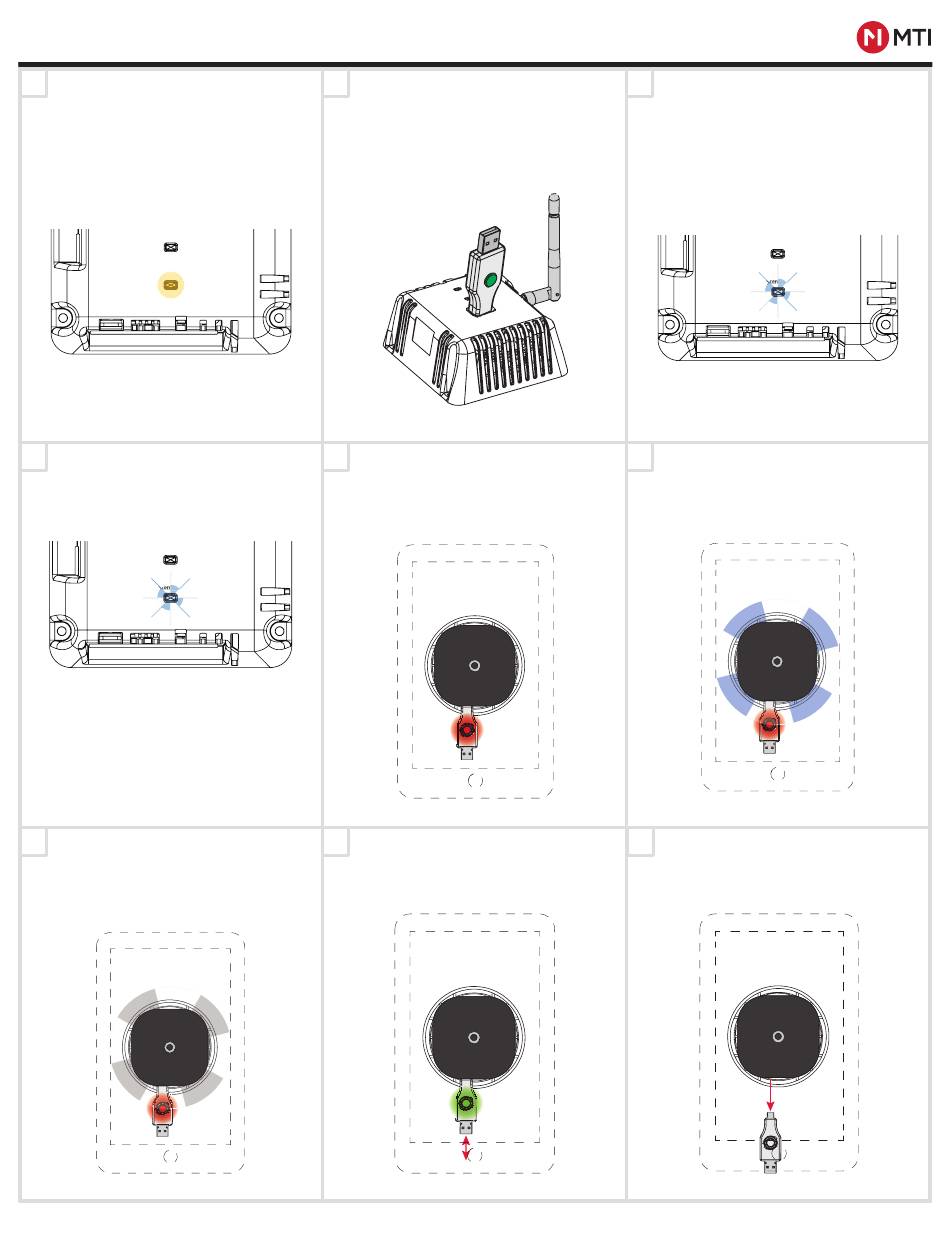

NETWORK PROVISIONING

1
Ensure the Hub and all Freedom
Micro positions are powered up.
Once powered, the staus light will
illuminate (see page 3 for LED
Status Indicators).
Network
System Status stem Stat
Power Reset
4
Remove the key (blue LED will
stay flashing on Hub for up to 15
minutes).
Network
System Status m Sta ta tat tat a a tu a
Power Reset
7
After connecting to the network,
the LED on the puck will double
white flash every 5 seconds, the
key's LED will still remain red.
www.mtigs.com | T:800.426.6844
2
Plug user key into the USB port
on the top of the Hub. When the
key LED lights green, it has been
added to the system whitelist.
Remove and repeat for all other
user keys.
5
Take any of the user keys to each
position that has a flashing yellow
LED and plug in the key for 10
seconds (the key LED will light up
red).
8
Remove and re-insert the key;
the key's LED should light green,
indicating the key will now control
the puck.
CONNECT HUB PRODUCT MANUAL
3
Plug in any user key in for 10
seconds. After 10 seconds, the
Hub status indicator will flash
blue, indicating the Hub is in
network provisioning mode.
Power
6
After 10 seconds, the puck LED
will flash blue until it connects to
the Hub's network.
9
Removing the key after the LED
illuminates green will arm the
position if the position is fully
merchandised.
MTI P/N 063-00210 rev D ©2019 MTI All Rights Reserved
