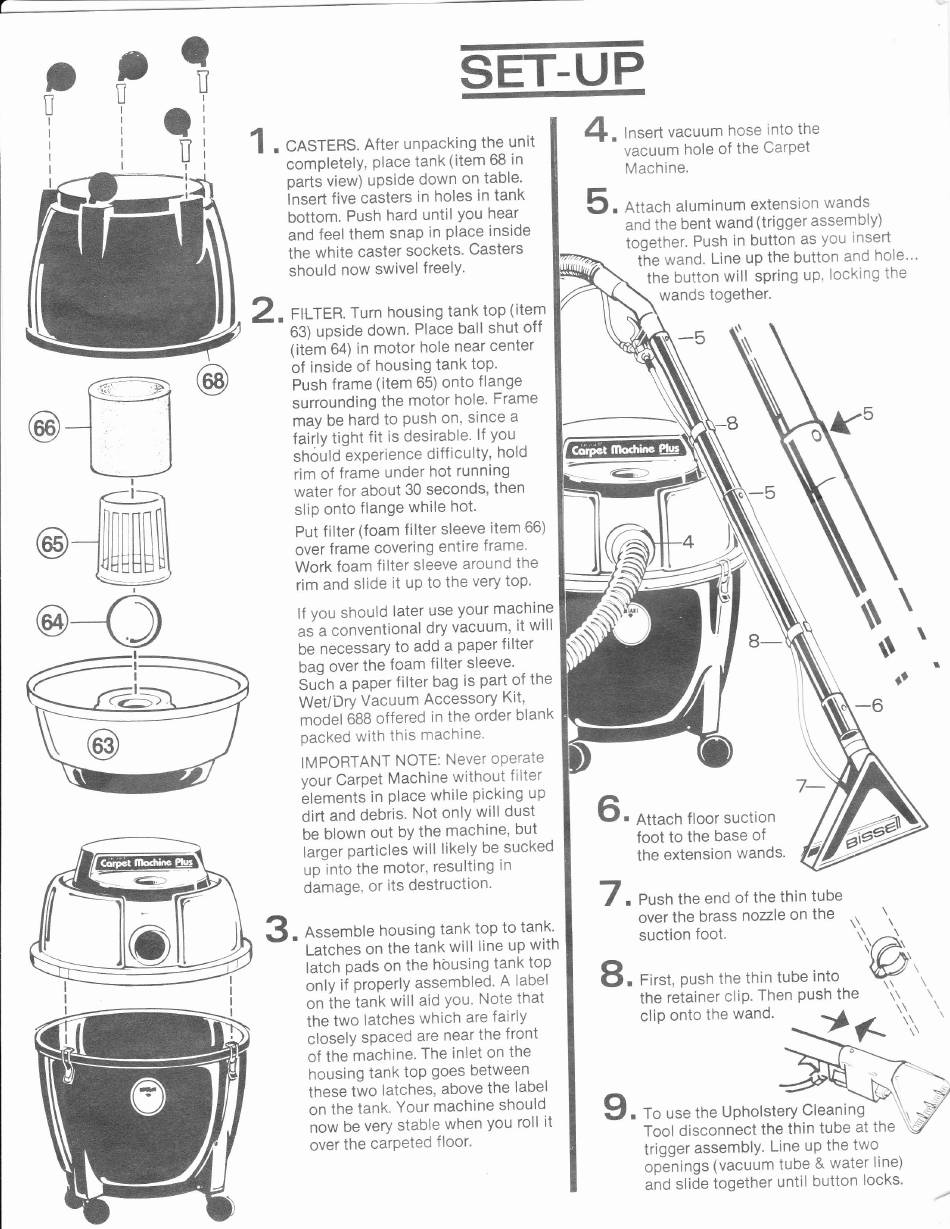

SET-UP
-
1
,
"ortrRS.
After unPacking
the unit
comPletelY, Place
tank (item 68 in
parts
view) uPside down on table'
insert five casters in holes in tank
bottom. Push hard until
You
hear
and
feel them snaP in Place inside
the white caster sockets' Casters
should now swivel freelY'
2. rrt
rR.
Turn housing tank toP (item
63)
upside
down'
Place
ball shut
off
(item 64) in motor hole near center
of inside of housing tank toP'
Push frame
(item
65)
onto flange
surrounding
the motor hole' Frame
maY
be hard
to
Push
on, since a
fairly
tight
fit
is
desirable' lf you
sh6uld experience
difficulty,
hold
rim of frame under hot running
water for about 30 seconds, then
sliP
onto flange
while hot'
)
I
)
I
o
I
{,
lnr"x
vacuum hose into the
vacuum hole of the CarPet
Machine.
5.
Rtt""n
aluminum extension wands
and the bent wand
(trigger assembly)
together. Push in
button as
you insert
the wand. Line up the button and
hole"'
the button
will
spring up, locking the
wands together.
-5
\t
Put
filter (foam
filter
sleeve
item
66)
over
frame covering entire frame'
Work foam
filter
sleeve
around the
rim and slide
it
uP
to the very top'
lf vou should later use your machine
",
"
"onuentional
dry
vacuum, it will
be necessary
to
add a
PaPer
filter
bag over
the foam
filter
sleeve'
Suin
a paper
filter bag is part of the
Wet/Dry Vacuum Accessory Kit,
model 6Ba
otfered in the order blank
packed
with this machine'
IMPORTANT NOTE: Never oPerate
vour Carpet Machine
without
f
ilter
blements in Place
while Picking uP
dirt and
debris' Not
onlY
will dust
be
blown
out
bY
the machine, but
larger
particles
will likely be sucked
up into the motor, resulting in
damage,
or its destruction'
$.
o.r".ble
housing tank
top to tank'
-'
L"t"h"s
on the tank
will
line up
with
latch Pads on the hbusing tank toP
only
ii
properly assembled' A label
on ine
iank will
aid You'
Note that
the
two latches which are fairlY
closelY sPaced are near
the front
of the machine' The inlet on the
housing tank toP goes between
these
two latches,
above
the label
on the tank. Your machine should
now be
very
stable when You roll it
over
the carPeted floor'
6.
Rt,u.n ftoor suction
foot to the base
of
the extension wands.
7 .
eu"nthe end
of the
thin tube
over
the brass nozzle on
the
r\
tt
suction
foot.
'\\.
^\
8.
Firrt,
Push
the
thin tube
into
*@"
the retainer cliP.
Then Push
the
\\
cliP onto the
wand. !, ^. t\',
1r<'ti
9.
,o
use
the UPholstery
CleaninlF
Tool disconnect the
thin tube at
the
trigger assemblY. Line
uP
the two
op-enings
(vacuum tube & water line)
and
slide together
until button locks'
